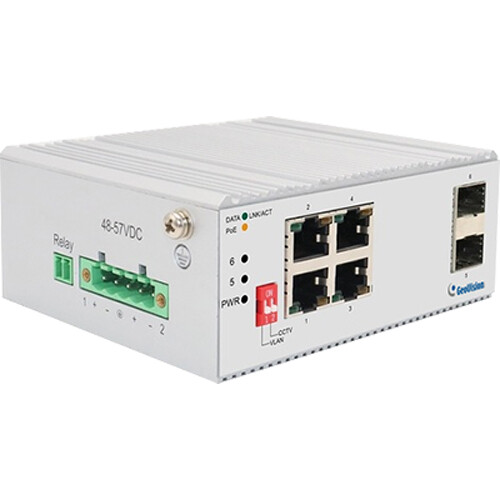

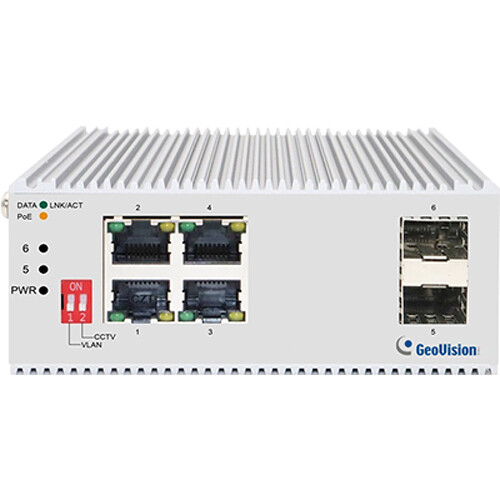

GEOVISION GV-APOE0410-E 4-Port Gigabit PoE+ Compliant Industrial Unmanaged Switch

Add to Wishlist
Key Features
  • 4 x Gigabit Ethernet PoE+ Ports
  • 2 x Gigabit SFP Ports
  • 12 Gb/s Switching Capacity
  • 8.93 Mpps Forwarding Rate
  • DIN Rail Mounting
  • Redundant DC Power
  • 120W Power Budget
  • Up to 820′ Range in Extend Mode
  • Redundant Power Input

1,399.00 د.إ

Add to Wishlist

GEOVISION GV-APOE0410-E Overview

Designed for harsh environments, the GEOVISION GV-APOE0410-E 4-Port Gigabit PoE+ Compliant Industrial Unmanaged Switch can withstand temperatures between ‐40 to 167°F and may be mounted onto a DIN rail. Featuring an unmanaged, plug-and-play design and 120W power budget, you can connect devices such as security cameras to its four PoE+ complaint Gigabit Ethernet ports without a complicated setup process.

Dual terminal block connectors allow for redundant DC power input. Two SFP ports are available for Gigabit speed fiber uplinks. Supporting a 12 Gb/s switching capacity and 8.93 Mpps forwarding rate, the GV-APOE0410-E provides smooth, reliable data transfers.

Extend Mode
Configuring the switch for 10 Mb/s transfer speeds enables a range of up to 820′ for long-distance installations.
VLAN Mode
Enable VLAN mode to isolate each of the PoE ports for an enhanced forwarding rate.
PoE Alive Check
This switch automatically checks the connection to powered devices.
SKU: 140-APOE41W-E00 Category: Tag:
Key Specs
Inputs/Outputs
4x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
2x RJ45 Gigabit Ethernet
Stackable
No
Switching Bandwidth
12 Gb/s
PoE Power Budget
120 W
Stackable
No
Protocols
Layer Services Supported
Layer 2
Supported Protocols
Auto-MDIX/MDI
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
4K
Performance
Forwarding Rate
8.93 Mpps
Switching Bandwidth
12 Gb/s
Packet Buffer
1.5 Mb
Electrical
PoE per Port
30 W
PoE Power Budget
120 W
Power Draw
125.00 W (Max)
Power Supply Type
External
General
Certifications
CE, FCC, UKCA, RoHS
Operating Conditions
-40 to 167°F / -40 to 75°C at 5 to 95% Humidity
Storage Conditions
-40 to 176°F / -40 to 80°C
Cooling System
Passive
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
No
Dimensions
4.3 x 3.5 x 1.8″ / 110 x 90 x 46 mm
Weight
1.37 lb / 0.62 kg
