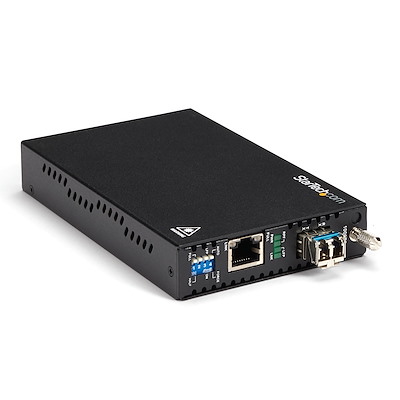

Gigabit Ethernet Copper-to-Fiber Media Converter – SM LC – 10 km – TAA


Convert and extend a Gigabit Ethernet connection up to 10 km (6.2 mi) using single-mode LC fiber cable



  • ETHERNET OVER FIBER EXTENSION: Use this full/half duplex fiber media converter to convert and extend a Gigabit Ethernet connection up to 10km (6.2mi) using single-mode LC fiber cable
  • INCLUDES SFP: For added convenience, this IT-grade network fiber media converter includes an SFP transceiver (mini GBIC), enabling a 1310nm LC single-mode Gigabit fiber connection
  • MAXIMUM DURABILITY: Built to withstand harsh environments, this rugged media converter has a durable steel housing and has an operating temperature range of 0°C-50°C (32°F-122°F)
  • SPECS: Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), VLAN tagging, and Auto MDIX; Up to 9.6K Jumbo Frame support; Compatible with Gigabit (1000Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this EthernetĀ

AED1,599.00

This Gigabit Ethernet to fiber media converter is a cost-effective way to extend your network, or extend the distance between two devices by up to 10 km (6.2 mi.).

Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications.

Diagram showing the media converter extending a network switch by 10 km using fiber optic cable

Flexible integration into mixed network environments

This versatile copper-to-fiber converter supports standalone operation. The card module can also be inserted back into the ET91000SM10 enclosure, plus it’s compatible with enclosures from other ET91000 series media converters (sold separately).

The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements.

With flexible integration and connectivity up to 10 km away, you can provide network access to remote areas in other buildings or in areas where Wi-FiĀ® is unreliable or unavailable.

Rugged and reliable

This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses.

Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses.

Diagnose and correct issues easily

This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily.

Prepare your network for the future

If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.


Applications

  • Use fiber optic cable to connect to your network from remote areas or separate buildings, at greater distances than copper (RJ45) cable allows
  • Perfect for secure connections required by government agencies where EMI isn’t acceptable
  • Easily expand the number of ports on your existing network now, or in the future — perfect for small and medium businesses
SKU: ET91000SM10 Category: Tag:

Specifications Table

Category Details
Connector(s)
Local Unit Connectors – 1 Ɨ Fiber Optic LC Duplex
– 1 Ɨ RJ-45
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10% to 90% RH (Non-condensing)
Hardware
PoE No
WDM No
Industry Standards – IEEE 802.3ab (1000BASE-T)
– IEEE 802.3z (1000BASE-LX)
Indicators (LEDs) – PWR
– RPF
– LFP
– LNK
– LINK (RJ45)
– FULL (RJ45)
Packaging Information
Package Height 3.5 in [8.9 cm]
Package Length 5.7 in [14.4 cm]
Package Width 8.1 in [20.6 cm]
Shipping Weight 1.7 lb [0.8 kg]
Package Quantity 1
Performance
Max Data Transfer Rate 2 Gbps (Full-Duplex)
Max Transfer Distance 10 km (6.2 mi)
Type Single Mode
Wavelength 1310 nm
Fiber Operating Mode Half/Full-Duplex
Flow Control None
Remote Management Ability No
Compatible Networks 1000 Mbps (1 Gbps)
Auto MDIX Yes
Jumbo Frame Support 9.6K max.
Switching Architecture None
MTBF 65,000 Hours
Physical Characteristics
Color Black
Material Steel
Product Dimensions (L Ɨ W Ɨ H) 5.5 in Ɨ 3.5 in Ɨ 0.9 in
(14.0 cm Ɨ 8.8 cm Ɨ 2.3 cm)
Weight of Product 14.5 oz [411.0 g]
Power
Power Source AC Adapter Included
Input Voltage 100 – 240 AC
Input Current 0.48 A
Output Voltage 12V DC
Output Current 1.6 A
Center Tip Polarity Positive
Plug Type M
Power Consumption 19.2 Watts
Special Notes / Requirements
System & Cable Requirements Only compatible with Gigabit SFP modules. Not supported for 10/100 Mbps modules.
What’s in the Box
Included Items – 1 Ɨ Gigabit Ethernet Fiber Media Converter
– 1 Ɨ Universal Power Adapter (NA/JP, EU, UK, ANZ)
– 1 Ɨ Grounding Screw
– 1 Ɨ Instruction Manual
