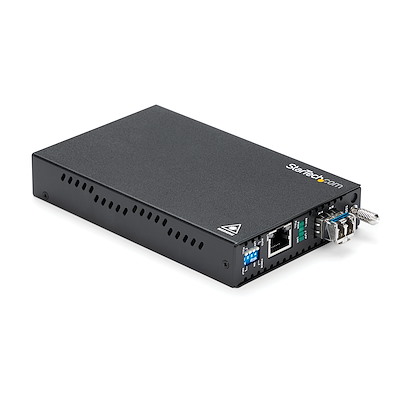

Gigabit Ethernet Copper-to-Fiber Media Converter – SM LC – 20 km – TAA
Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
- Converts copper to fiber and extends your network up to 20 km (12.4 mi.) using single-mode LC fiber-optic cable (1310 nm)
- Removable SFP module (LC fiber connector) can be replaced should your network infrastructure change
- Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), and Auto MDIX
- Up to 9.6K Jumbo Frame support
- Supports full or half-duplex operation, as well as autonegotiation or forced mode
- Media converter’s card module is compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately)
- Compatible with Gigabit (1000Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols
- Fast, hassle-free setup
- Rugged steel enclosure
AED1,499.00
Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications.
Flexible integration into mixed network environments
This versatile copper-to-fiber converter supports standalone operation. The card module can also be inserted back into the ET91000SM20 enclosure, plus it’s compatible with enclosures from other ET91000 series media converters (sold separately).
The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements.
With flexible integration and connectivity up to 20 km away, you can provide network access to remote areas in other buildings or in areas where Wi-Fi® is unreliable or unavailable.
Rugged and reliable
This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses.
Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses.
Diagnose and correct issues easily
This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily.
Prepare your network for the future
If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.
Applications
- Use fiber optic cable to connect to your network from remote areas or separate buildings, at greater distances than copper (RJ45) cable allows
- Perfect for secure connections required by government agencies where EMI isn’t acceptable
- Easily expand the number of ports on your existing network now, or in the future — perfect for small and medium businesses
Specifications Table
| Category | Details |
|---|---|
| Connector(s) | |
| Local Unit Connectors | – 1 × Fiber Optic LC Duplex – 1 × RJ-45 |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10% to 90% RH (Non-condensing) |
| Hardware | |
| PoE | No |
| WDM | No |
| Industry Standards | – IEEE 802.3ab (1000BASE-T) – IEEE 802.3z (1000BASE-LX) |
| Indicators | – PWR – RPF – LFP – LNK – LINK – RJ45 – FULL – RJ45 |
| Packaging Information | |
| Package Height | 3.6 in [9.1 cm] |
| Package Length | 8.1 in [20.6 cm] |
| Package Width | 5.4 in [13.7 cm] |
| Shipping Weight | 1.7 lb [0.8 kg] |
| Performance | |
| Max Data Transfer Rate | 2 Gbps (Full-Duplex) |
| Max Transfer Distance | 20 km (12.4 mi) |
| Type | Single Mode |
| Wavelength | 1310 nm |
| Fiber Operating Mode | Half/Full-Duplex |
| Flow Control | None |
| Remote Management Ability | No |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Auto MDIX | Yes |
| Jumbo Frame Support | 9.6K max. |
| Switching Architecture | None |
| MTBF | 65,000 Hours |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Dimensions (L × W × H) | 5.5 in × 3.5 in × 0.9 in (13.9 cm × 8.8 cm × 2.3 cm) |
| Weight of Product | 14.5 oz [410.0 g] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.48 A |
| Output Voltage | 12V DC |
| Output Current | 1.6 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 19.2 Watts |
| Special Notes / Requirements | |
| System & Cable Requirements | Compatible only with Gigabit SFP modules; not supported for 10/100 Mbps modules |
| What’s in the Box | |
| Included Items | – 1 × Gigabit Ethernet Fiber Media Converter – 1 × Universal Power Adapter (NA/JP, EU, UK, ANZ) – 1 × Grounding Screw – 1 × Instruction Manual |
