Gigabit Ethernet Fiber Media Converter with Open SFP Slot – TAA

Add to Wishlist

Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice



  • Open SFP slot supports MSA-Compliant Single / Multi-Mode Gigabit SFPs at varying distances
  • Advanced features include Link-loss forwarding, remote monitor status, and two frame lengths
  • Supports full or half-duplex operation
  • Easy to use and install
  • Jumbo Frame support

AED1,099.00

Add to Wishlist

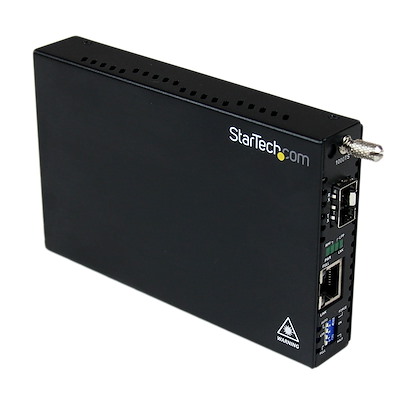

The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.

A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).

The fiber-to-Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.

For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a Card Module only (ET91000SFP2C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • A cost-effective way to extend/bridge networks using fiber cabling
  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Perfect for secure connections required by government agencies, where EMI is not acceptable
  • Connect traffic control/monitoring systems at extreme distances to the main office
  • Extend network connectivity to remote areas of stadiums, auditoriums, or other venues
SKU: ET91000SFP2 Category: Tag:

Specifications Table

Category Details
Connector(s)
Local Unit Connectors – 1 × SFP Slot
– 1 × RJ-45
Environmental
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10% to 90% RH (Non-Condensing)
Hardware
PoE No
WDM No
Industry Standards – IEEE 802.3z 1000BASE-LX
– IEEE 802.3ab 1000BASE-T
– IEEE 802.3z 1000BASE-SX
Chipset ID Marvell – 88E1111
Packaging Information
Package Height 3.5 in [9.0 cm]
Package Length 8.0 in [20.4 cm]
Package Width 5.4 in [13.8 cm]
Package Quantity 1
Shipping Weight 1.7 lb [0.8 kg]
Performance
Max Data Transfer Rate 1.25 Gbps
Type Single Mode / Multi Mode
Fiber Operating Mode Half/Full-Duplex
Auto MDIX Yes
MTBF 65,000 Hours
Physical Characteristics
Color Black
Material Steel
Product Dimensions (L × W × H) 6.1 in × 3.5 in × 0.9 in
(15.4 cm × 8.8 cm × 2.3 cm)
Weight of Product 14.0 oz [396 g]
Power
Power Source AC Adapter Included
Input Voltage 100 – 240 AC
Input Current 0.36 A
Output Voltage 12V DC
Output Current 1 A
Center Tip Polarity Positive
Plug Type M
Power Consumption 8 Watts
Special Notes / Requirements
Note Fiber data transfer speeds and distances are dependent on the SFP used (sold separately)
What’s in the Box
Included Items – 1 × Fiber Media Converter
– 1 × Universal Power Adapter (Region-specific)
– 1 × Grounding Screw
– 1 × Instruction Manual
