Fiber Media Converters

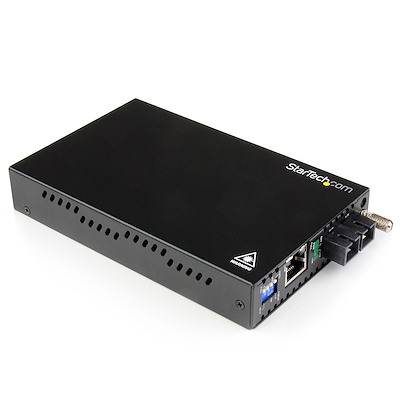

Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km – 1000 Mbps – TAA
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber
- A cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote monitor status, and two frame lengths
- Maximum Fiber Cable length of 40 km
- Supports full or half-duplex operation
- Quick and simple installation, easy to use
AED2,699.00
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis and a simple plug-and-play installation with minimal configuration required.
Applications
- Provides network connectivity to users or network segments located in isolated areas of a large complex or a separate building
- Suitable for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums, or other venues
- Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single-mode fiber cable
Specifications Table
| Category | Details |
|---|---|
| Connector(s) | |
| Local Unit Connectors | – 1 × Fiber Optic SC Duplex – 1 × RJ-45 |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10% to 90% RH |
| Hardware | |
| PoE | No |
| WDM | No |
| Packaging Information | |
| Package Height | 3.5 in [9.0 cm] |
| Package Length | 8.1 in [20.6 cm] |
| Package Width | 5.4 in [13.7 cm] |
| Package Quantity | 1 |
| Shipping Weight | 1.7 lb [0.8 kg] |
| Performance | |
| Max Data Transfer Rate | 2000 Mbps (Full Duplex Mode) |
| Max Transfer Distance | 40 km (24.8 mi) |
| Type | Single Mode |
| Wavelength | 1310 nm |
| Fiber Operating Mode | Half/Full-Duplex |
| Auto MDIX | Yes |
| MTBF | 65,000 Hours |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Dimensions (L × W × H) | 6.3 in × 3.7 in × 0.8 in (16 cm × 9.5 cm × 2 cm) |
| Weight of Product | 21.2 oz [600 g] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.36 A |
| Output Voltage | 12V DC |
| Output Current | 1.6 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 4 Watts |
| What’s in the Box | |
| Included Items | – 1 × Fiber Media Converter – 1 × Universal Power Adapter (NA/EU/UK/AU) – 1 × Grounding Screw – 1 × Instruction Manual |
