Gra-Vue DVI / HDMI / VGA Signal to HD / SD-SDI Converter with Genlock

Add to Wishlist

AED15,199.00

Add to Wishlist

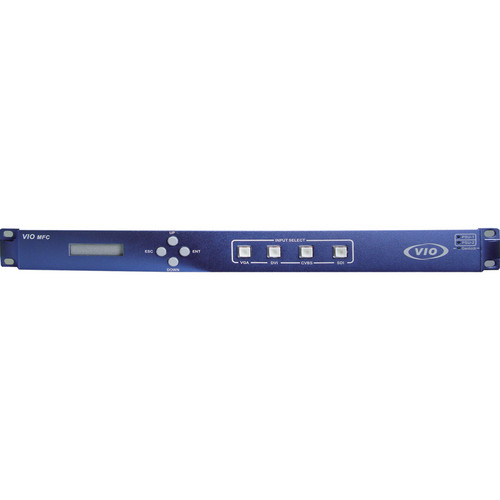

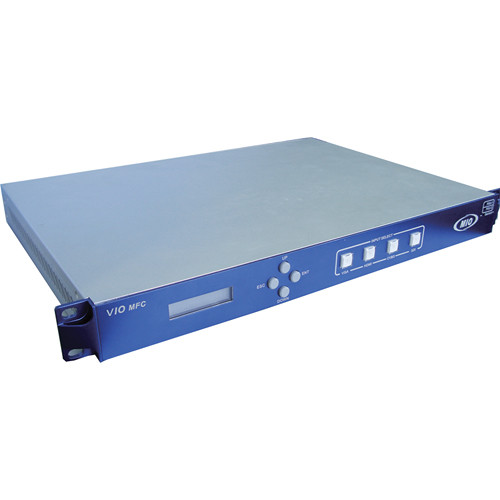

The Gra-Vue DVI / HDMI / VGA Signal to HD / SD-SDI Converter with Genlock is VIO MFC series format converter based on 1RU chassis. It is a bridge between broadcasting and the IT area. It supports the LCD menu, control button, and LED indication on the front panel. The CVBS output and audio input / output are sold separately.

Support various formats for VGA and DVI (HDMI) input. Up to 1920 x 1080 for DVI (HDMI) input and 1600 x 1200 for VGA input
Besides inner sync, genlock with full phasing control for V-phase and H-phase, locks HD / SD-SDI output to black burst
For up / down conversion, adopt AFD auto-sensing or manual setting (crop / bar / stretch)
Magnify the selected image area though the Web server
Support moving and adjusting the magnifying area, pixel by pixel
Multi-level anti-flicker
Provide flexible adjustment for luminance, saturation, contrast, detail, and denoise
Preset layouts for all parameter settings
SKU: VIO MFC-HDMI-HD Category: Tag:
Input
Input:
VGA input number: 1
Connector: DB15 Female
Resolution: 640 x 480 / 60 / 75, 800 x 600 / 60 / 75, 1024 x 768 / 60 / 75, 1152 x 864 / 60 / 75, 1280 x 768 / 60, 1280 x 800 / 60, 1280 x 960 / 60, 1280 x 1024 / 60, 1360 x 768 / 60, 1440 x 900 / 60, 1600 x 900 / 60, 1600 x 1200 / 60

DVI / HDMI Input Number: 1
Connector: DB24 Female
Resolution: 720p 50 / 59.94 / 60, 1080i 50 / 59.94 / 60, 1080p 30 / 29.97 / 25 / 24/ 23.98, 1080p 50 / 59.94 / 60, 800 x 600 x 60, 1024 x 768 x 60, 1280 x 720 x 50 / 60, 1280 x 768 x 60, 1280 x 800 x 601, 280 x 960 x 60, 1280 x 1024 x 60, 366 x 768 x 60, 920 x 1080 x 60 / 50
Output
HD / SD-SDI Output Number: 2
Connector: BNC 75 Ω
Format: SMPTE 292M, 1.48 Gb/s
SMPTE 259M-C 270 Mb/s 625i 50, 525i 59.94, 720p 50 / 59.94 / 60,1080i 50 / 59.94 / 60,1080p 25 / 30 Return Loss: ±15dB
Signal Level: 800 mV ±10%
Overshoot: ±80 mV
Jitter: ±0.2 UI
Rise and Fall Time: ±500/sec
DC Offset: 0 V ±500 mV

Analog Video Output Interface (Sold Separately)
Number :4x CVBS BNC 75 Ω

Audio Input / Output Interface (Sold Separately)
Digital Input Number: 2
Connector: BNC 75 Ω unbalanced
Format: AES-3 SMTPE 276M

Analog Input NumberL : 2
Connector: 3-pin 600 Ω Balanced

Analog Output NumberL: 2
Connector: 3-pin 600 Ω Balanced
Genlock
1x BB In, BNC SMPTE 259M-C 270 Mb/s, 625i / 50, 525i 59.94
Control Interface
1x RJ45 10 / 100 / 1000M auto-adapting
Power
2x 120 W, 100 to 256 VAC, & 50 to 60 Hz
Dimensions
17.32 x 19.01 x 1.77″ (440.00 × 483.00 × 45.00 mm)
Packaging Info
Package Weight
1.6 lb
Box Dimensions (LxWxH)
24 x 24 x 8″
