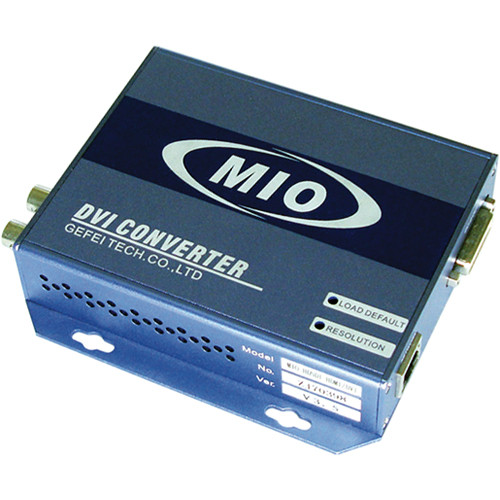

Gra-Vue MIO AV-AVIEWER Composite Audio/Video to DVI/HDMI Video Scaling Converter with Video & Audio Monitoring

Add to Wishlist

AED3,099.00

Add to Wishlist

The Gra-Vue MIO AV-AVIEWER Composite Audio/Video to DVI/HDMI Video Scaling Converter features a video and audio quality assurance watch dog function that provides real-time video/audio probing and alarm. The mini scaling converter supports automatic video input format detection and supports composite video in both PAL and NTSC format.

The MIO AV-AVIEWER also provides overlay for marker, waveform analyzer, AFD, dynamic UMD, Tally, and an 8-channel audio VU meter. It has an option for selecting stereo audio output. The built-in Web server allows you to easily remote control the unit via a Web browser. The unit fully supports SNMP protocols for remote monitoring.

This video scaling converter can be a key component in video/audio monitoring and display systems. It is suitable for many broadcasting and professional A/V monitoring applications such as control rooms, mobile trucks, production, post-production, and playout. It is also suitable for use in schools, houses of worship, and community TV stations.

One analog composite video and 2-channel stereo audio input
DVI/HDMI output up to 1920 x 1080p
PAL/NTSC auto switching input
Video/audio real-time probing
Alarm for video/audio lost, frozen, black video, audio overload, EDH error
Real-time video waveform analyzer
Programmable bi-color UMD
Eight-channel audio VU meter
Built-in Web server supports SNMP & Tally protocol
Selectable 4:3, 16:9, & full screen display mode
Embedded audio support
Option for stereo audio output
HDMI v1.3 compatible
CEA timing standards compliant
SKU: MIO AV-AVIEWER Category: Tag:
Video Inputs
1 x BNC, 75 Ī©, Composite Video (CVBS)
Input Format
PAL, NTSC
Video Output
1 x DVI-I female, supports HDMI protocol
Output Resolution
1024x768x60p, 1280x720x50p/60p 1280x768x60p, 1280x800x60p 1280x1024x60p, 1360x768x60p 1400x1050x60p, 1600x900x60p 1680x1050x60p, 1920x1080x50i/60i 1920x1080x50p/60p, Auto HDMI
Control
RJ-45 Ethernet for built-in Web server, TSL SMNP protocol
LED
Power status and input signal locking
Power
12 VDC, 1 A
Working Temperature
41 to 77Ā°F (5 to 25Ā°C)
Storage Temperature
32 to 104Ā°F (0 to 40Ā°C)
Dimensions
4.8 x 3.6 x 1.1″ (124.0 x 92.0 x 30.0 mm)
Weight
11.5 oz (326.0 g)
Packaging Info
Package Weight
1.45 lb
Box Dimensions (LxWxH)
11 x 6.7 x 3.2″
