Gra-Vue MIO HDSDI-HDMI HDMI / DVI Converter

Add to Wishlist

AED2,099.00

Add to Wishlist

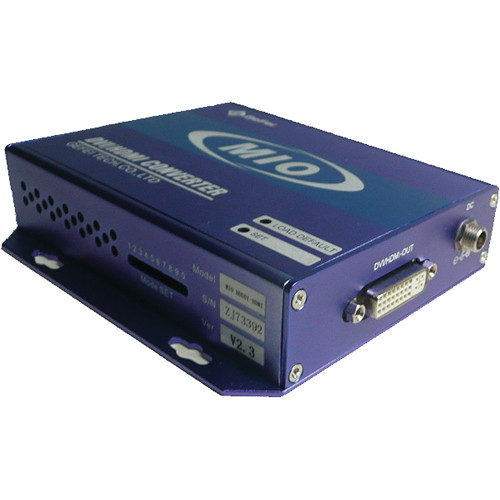

The Gra-Vue MIO MIO HDSDI-HDMI HDMI / DVI Converter switches HD / SD-SDI signal to DVI or HDMI signal for digital display devices such as LCD, DLP, and Plasma. This video and audio scaling converter allows you to adjust output resolution and audio channel by a DIP switch on one side of the box. Moreover, it supports 525i, 625i, 720p, 1080i, and 1080p HD / SD-SDI input formats. The HDMI / DVI converter offers SDI-Loop output to extend other applications. Although the device adopts a DVI interface, the HDMI signal can also be transmitted by using a DVI-to-HDMI adapter or cable. Additionally, in HDMI mode, the SDI audio are embedded into HDMI signal.

Converts HD / SD-SDI signal to good quality DVI or HDMI signal
Supports 525i, 625i, 720p, 1080i, and 1080p HD / SD-SDI input formats
Automatic input rate detection

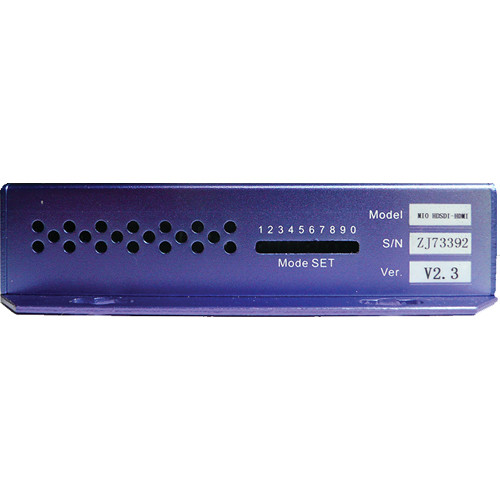

Output resolution adjustable by a DIP switch
Supports embedded audio HDMI output via a DVI interface with the DVI to HDMI adapt
Provides SDI-Loop output to extend other applications
Mini box structure easily installed inside frame racks and video walls
Widely used in broadcasting system, studios, and other professional fields
SKU: MIO HDSDI-HDMI Category: Tag:
Input
Interface
Input: 1 x HD / SD-SDI, BNC
Standard
75 Ī©
Resolution
SMPTE-259M-C 270 Mb/s
SMPTE-292M 1.485 Gb/s
SMPTE-425 2.970 Gb/s
Format
480i 60 576i 50, 720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60, 1080p 50 / 59.94 / 60
Length
ā‰¤ 3.94″ (100.00 m) (Belden 1694A)
Output
Output Interface
1 x HD / SD-SDI Loop output
1 x DVI-I (digital signal), female
Resolution
1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024 1360 x 768, 1400 x 1050, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200 AUTO mode
Physical Characteristics
Power
12 VDC, 1 A
Dimensions
4.84 x 3.62 x 1.14″ (123.00 x 92.00 x 29.00 mm)
Packaging Info
Package Weight
1.45 lb
Box Dimensions (LxWxH)
11.2 x 6.8 x 3.1″
