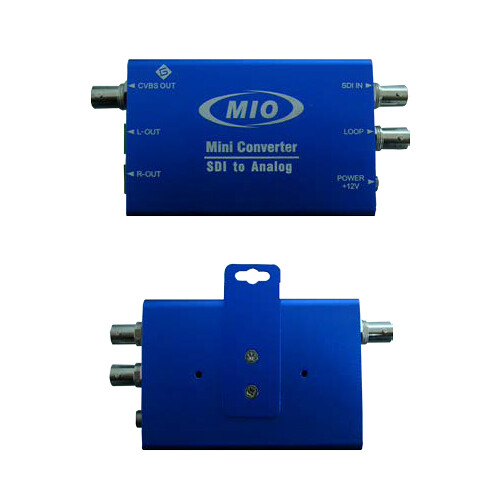

Gra-Vue Mio Mini 2-Channel SDI to Analog Video/Audio Converter

Add to Wishlist
Key Features
  • Convert SD-SDI Signal to Analog
  • SDI Input, NTSC/PAL CVBS Output
  • SDI Loop Output, LED Indicator
  • 2 x 3-Pin Analog Audio De-Embed Outputs

AED1,699.00

Add to Wishlist

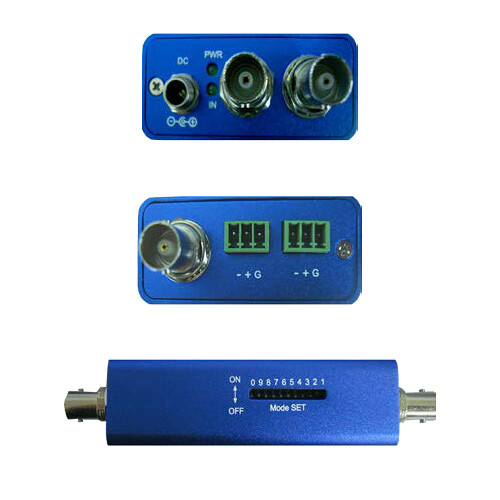

Convert a digital SDI signal to analog and de-embed audio with this Mio Mini 2-Channel SDI to Analog Video/Audio Converter from Gra-Vue. This converter features an SD-SDI BNC input that supports NTSC/PAL video and converts it to analog video for output via its CVBS BNC output. There is also an SD-SDI loop output for monitoring. The audio can also be extracted from the SDI input and sent via two 3-pin audio outputs. A dip switch on the side allows you to choose which tracks will be embedded and extracted.

Key Features
One BNC digital video input that supports NTSC 480i59.94 and 576i50 PAL
Two 3-pin analog audio outputs
A dip switch allows you to select which audio track will be embedded or de-embedded
Real-time LED indicator for signal and power status
BNC SD-SDI loop output
SKU: MMIO ENC-AUD Category: Tag:
Inputs / Outputs
Video Inputs
1x BNC (SD-SDI) Female
Audio Inputs
No
Video Outputs
1x BNC (Composite)
1x BNC (SD-SDI) (Loop Output)
Audio Outputs
2x Block 3-Pin Stereo
Expansion Slots
No
Format Support
Input Video Format
SDI
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Output Audio Format
Analog
Embedded Audio
SDI Input
Video Standard Compliance
SMPTE 259M-C
HDR Support
No
Wireless
No
Power
Power I/O
1x Barrel (12 VDC at 1 A) Input
General
Dimensions
3.87 x 2.5 x 1.12″ / 98.3 x 63.5 x 28.45 mm
Weight
6.87 oz / 195 g
