Gra-Vue MVIO UC SDI to Dual HD-SDI Upconverter

Add to Wishlist
Key Features
  • SD-SDI Input with Loop-Out
  • Dual Mirrored HD-SDI Outputs
  • Supports up to 1080p Resolution Output
  • Reference Input for External Sync
  • Web Server for Control Over Network

AED11,999.00

Add to Wishlist

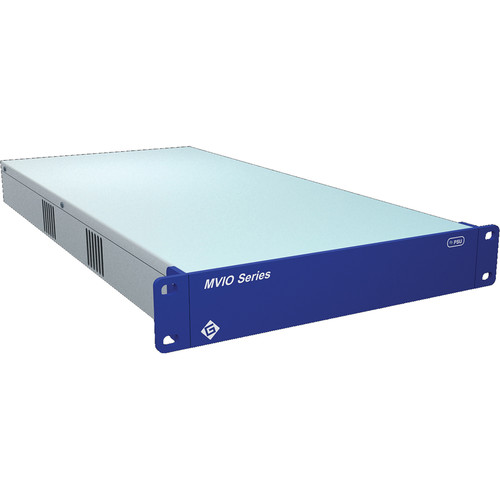

The MVIO UC SDI to Dual HD-SDI Upconverter from Gra-Vue converts PAL or NTSC SD-SDI video to HD-SDI at 720p, 1080i, or 1080p resolution. The upconverted signal is output through two mirrored HD-SDI outputs, and there is a loop-through output for the original SD-SDI signal. The converter is designed for rackmount installation and is operated remotely via a built-in Web server.

Automatic signal equalization to help support longer cable runs
Reference input for syncing outputs to a common house clock
Automatically detects the resolution of the source video
AFD and manual adjustment to deal with mis-matched aspect ratios, including bar, stretch, crop
Phase adjustment for horizontal and vertical frequencies
Built-in Web server supports SNMP
SKU: MVIO UC Category: Tag:

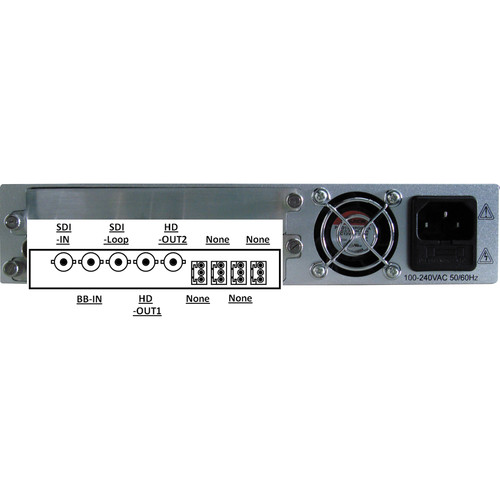

Connectivity
Input
Connector: 1 x SD-SDI on BNC
Impedance: 75 ohm
Standards: SMPTE 259M-C, SMPTE 292M
Resolutions: 625i50, 576i60
Outputs
Connector: 1 x SD-SDI loop-out on BNC
Connectors: 2 x HD-SDI on BNC
Impedance: 75 ohm
Resolutions: 625i, 576i, 720P, 1080i, 1080p
Level: 800 mV ±5%
Jitter: < 0.2 UI at 100 KHz
Reference
1 x BNC input
Network
Not specified by manufacturer
General
Power Requirements
110 to 240 VDC
Power Consumption
60 W
Operating Temperature
41 to 77°F / 5 to 25°C
Dimensions
8.6 x 17 x 1.9″ / 219 x 432 x 48 mm
Weight
Not specified by manufacturer
