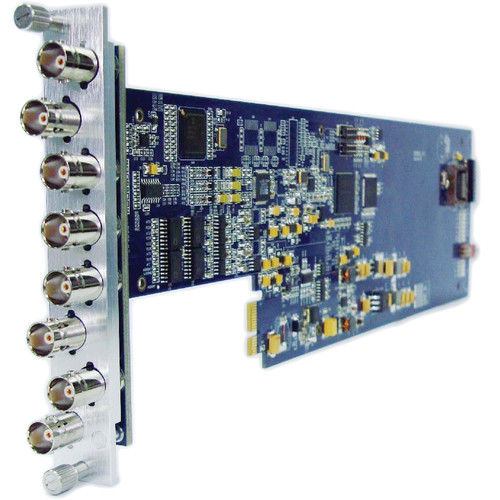

The SD-SDI to Composite Converter with Frame Sync is an expansion board the requires the 3RU version of the XIO-series rackmount frame. The card takes a single NTSC or PAL SD-SDI input and converts to four composite analog outputs. So the signal can pass to downstream devices without requiring a separate distribution amplifier, the SDI input is also looped back out on two mirrored outputs.
A composite reference input and built-in frame sync allows the outgoing signal to be synced with external sources such as a common house clock. This is ideal in live switching environments to ensure a glitch-free transition between cuts
Automatic signal equalization enables incoming SDI cable runs of up to 656′ when using Belden 1694A cable
Provided LED lights to indicate the status of signals and power supply
Supports SNMP, and can be managed and monitored remotely across a network using XIO NET
Designed for use in broadcasting systems, studios, and other professional video fields
