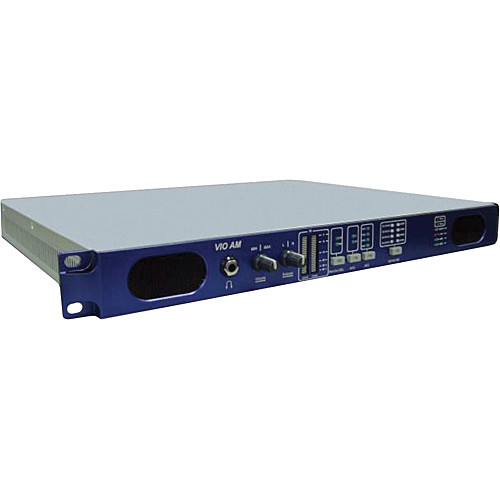

Gra-Vue VIO AM-HD Analog Audio/AED/SDI Embedded Audio Monitor

Add to Wishlist

AED13,199.00

Add to Wishlist

Gra-Vue VIO AM-HDĀ Overview

TheĀ Gra-Vue VIO AM-HD Analog Audio/AED/SDI Embedded Audio MonitorĀ is designed for simultaneously monitoring SDI embedded audio, analog audio stereo, and AES signals with two built-in independent speakers.

The VIO AM Embedded Audio Monitor is suitable for in-studio audio monitoring. The speakers can be configured to monitor audio channels from single or multiple audio sources. For example, one speaker can be set to monitor one channel of AES and another can be set to monitor one channel of analog audio.

  • Monitors various kinds of audio signals like analog audio, AES, and SDI embedded audio
  • Supports up to 16 channels for SDI embedded audio, one analog audio stereo signal, and two AES
  • Two built-in speakers

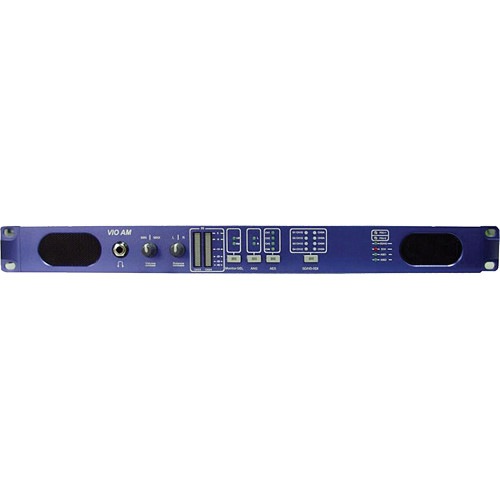

  • Front panel includes headphone output with adjustable volume and L/R balance control knobs
  • Set the audio source to monitor manually using buttons on the front panel
  • Display audio PPM directly on the front panel
  • Real-time EDH detection and alarm displayed by LED indicator
  • 1U chassis design with redundant power and fan
SKU: VIO AM-HD Category: Tag:

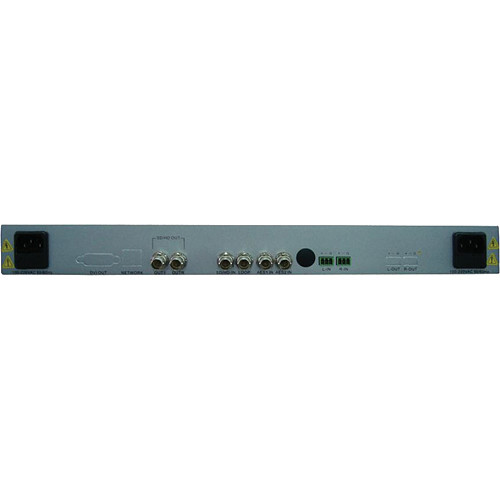

Video Input
Signal
1 x HD/SD-SDI, BNC, 75 Ī©
Standard
SMPTE 292M: 1.5 Gb/s
SMPTE 259M: 270 Mb/s
Embedded Audio
Up to 16 channels
Return Loss
>15 dB video signal output
Video Output
Signal
3 x HD/SD-SDI, BNC, 75 Ī© (2 HD/SD-SDI outputs1 of 2 for loop-out without power, 1 HD/SD-SDI loop)
Standard
SMPTE 292M: 1.5 Gb/s
SMPTE 259M: 270 Mb/s
Audio Input
Digital
Interface: 2 x AES, BNC, unbalanced
Analog
Interface: 1 x audio stereo, 3 pin, balanced
Maximum Level
+24 dBu
Physical
Power Supply
2 x 120 W
Packaging Info
Package Weight
12 lb
Box Dimensions (LxWxH)
24 x 24 x 8″
