Gra-Vue XIO 9010DES-3U Composite to SDI Converter for XIO Series Frames (3RU)

Add to Wishlist
Key Features
  • Supports NTSC or PAL Signals
  • 10-Bit Internal Video Processing
  • Frame Sync Processing
  • Supports SNMP for Web-Based Management
  • For 3RU XIO Frame

AED5,599.00

Add to Wishlist

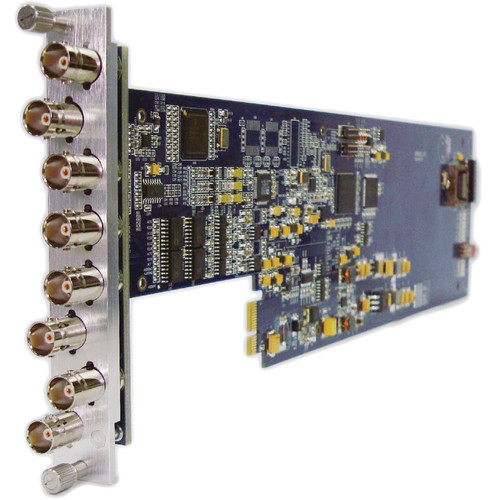

The XIO 9010DES-3U Composite to SDI Converter for XIO Series Frames is a modular expansion board that fits the 3RU height version of the XIO frame. It converts analog composite video in the NTSC or PAL standard to SDI and features four SD-SDI outputs.

Fame sync input allows you to sync the outgoing SDI signal to an external source, such as a house clock. Three modes supported: INT, single EXT, and global EXT, and can be set over XIO Net
10-bit internal processing
LED lights indicate the status of signals and power supply
Support SNMP, and can be managed and monitored in real-time using XIO NET
Video connectors may be hot-swapped
for use in broadcasting system, studios, and other professional video fields
SKU: XIO 9010DES-3U Category: Tag:
Analog Video Input
Connector: 1 x Composite on BNC
Impedance: 75 ohm
Standard: NTSC/PAL
Reflection Loss: >40 dB, 5.8 MHz
Reference Input
Connector: 1 x Composite on BNC
Standard: 625i50; SMPTE 259M-C, 270Mb/s
Analog Audio Input
None
SDI Output
Connector: 4 x SD-SDI on BNC connectors
Impedance: 75 ohm
Standard: 525i 60, 625i 50; SMPTE 259M-C; 270Mb/s
Level: 800 mV ±5%
Jitter: <0.2 UI (100 KHz)
Status Indicator
Signal status indicator; Power indicator
Indicated by shining or extinguishing green LED
Power Consumption
2 to 3 W
Dimensions
Not specified by manufacturer
Weight
Not specified by manufacturer
