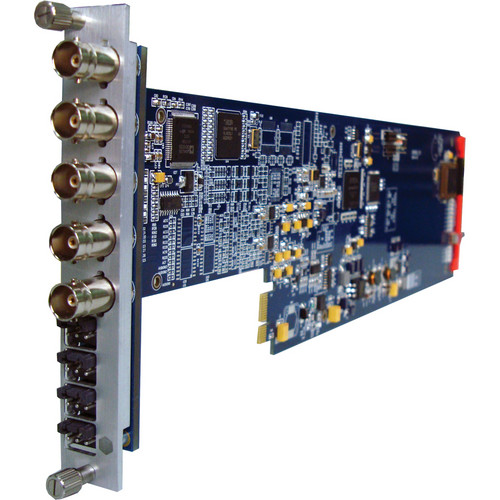

Gra-Vue XIO 9010DES-4AUD Composite Video & Audio to 2 x SD-SDI Converter Card with Frame Sync

Add to Wishlist

AED6,599.00

Add to Wishlist

The Gra-Vue XIO 9010DES-4AUD Composite Video & Audio to 2 x SD-SDI Converter Card with Frame Sync is based on the XIO Modular Platform. It installs into and is powered by either the XIO-1U or XIO-3U Chassis. This unit converts a single analog composite video signal to 2 identical SDI signals with frame sync processing. It supports NTSC and PAL standards.

The card also has two analog audio stereo inputs which are both embedded into the two SD-SDI outputs. The embedded audio channels can be selected by a DIP Switch.

The LED lights on the module indicate the status of input signal and power supply, in order to let the user know the status immediately. This analog video to SD-SDI converter also supports SNMP. It can be managed in real-time and monitored by XIO NET, the Network Management Module, via Ethernet.





Single analog composite video input, 4 analog audio inputs, and 2 identical SD-SDI outputs
Embedded audio channels can be selected by a DIP Switch on card edge
Provides an individual Ref interface and frame sync processing
Hot Swappable Plugs
Provides 3 kinds of sync modes: INT, single EXT, and global EXT from XIO net
10-bit processing
LED lights indicate the status of signals and power supply
Supports SNMP, and can be managed in real-time and monitored by XIO NET
Widely used in broadcasting systems, studios, and other professional fields
SKU: XIO 9010DES-4AUD Category: Tag:
Analog Video Input
Interface
Input: 1 x CVBS, BNC
Impedance
75 Ī©
Format
525i 60, 625i 50 SMPTE 259M-C 270 Mb/s
Loss
Reflection: >40 dB, 5.8 MHz
Reference Input
Interface
Input: 1 x Ref, BNC
Input Type
Analog composite video
Format
625i 50 SMPTE 259M-C 270Mb/s
Analog Audio Inputs
Interface
Input: 4 x 3-pin, balance
Impedance
600 Ī©
Maximum Level
+24 dBu (0 dBFs)
Digital Video Output
Output Interface
2 x SDI, BNC
Impedance
75 Ī©
Format
525i 60, 625i 50 SMPTE 259M-C 270 Mb/s
Level
800 mV Ā± 5%
Jitter
<0.2 UI (100 kHz)
Indicator
Status Indicator
Signal status indicator and power indicator (Indicated by shining or extinguishing of the green LED)
Power
Power Consumption
2 to 3 W
Physical
Dimensions
14.30 x 3.90 x 0.03″ (365.00 x 100.00 x 1.00 mm)
Weight
6.5 oz (185 g)
Packaging Info
Package Weight
1.6 lb
Box Dimensions (LxWxH)
18 x 9 x 4″
