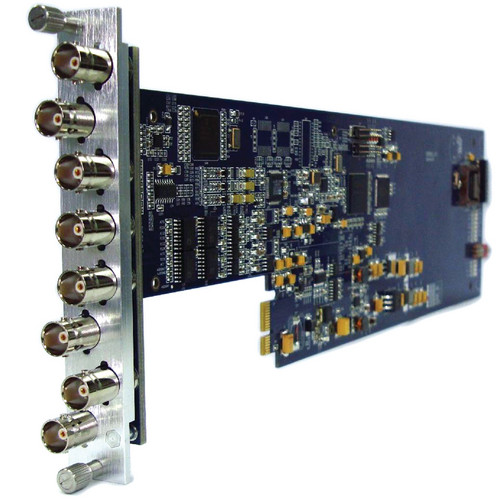

Gra-Vue XIO 9010DES Composite Video to 4 x SD-SDI Converter Card with Frame Sync

Add to Wishlist

AED5,599.00

Add to Wishlist

The Gra-Vue XIO 9010DES Composite Video to 4 x SD-SDI Converter Card with Frame Sync is based on the XIO Modular Platform. It installs into and is powered by either the XIO-1U or XIO-3U Chassis. This unit converts a single analog composite video signal to 4 identical SDI signals with frame sync processing. It supports NTSC and PAL standards.

The LED lights on the module indicate the status of input signal and power supply, in order to let the user know the status immediately. This analog video to SD-SDI converter also supports SNMP. It can be managed in real-time and monitored by XIO NET, the Network Management Module, via Ethernet.



SKU: XIO 9010DES Category: Tag:
Analog Video Input
Interface
Input: 1 x CVBS, BNC
Impedance
75 Ī©
Standard
525i 60, 625i 50 SMPTE 259M-C 270 Mb/s
Loss
Reflection: >40 dB, 5.8 MHz
Reference Input
Input Type
Analog composite video
Interface
Input: 1 x Ref, BNC
Format
625i 50 SMPTE 259M-C 270 Mb/s
Digital Video Output
Output Interface
4 x SDI, BNC
Impedance
75 Ī©
Format
525i 60, 625i 50 SMPTE 259M-C 270 Mb/s
Level
800 mV Ā± 5%
Jitter
<0.2 UI (100 kHz)
Indicator
Status Indicator
Signal status indicator and power indicator (Indicated by shining or extinguishing of the green LED)
Power
Power Consumption
2 to 3 W
Physical
Dimensions
14.30 x 3.90 x 0.03″ (365.00 x 100.00 x 1.00 mm)
Weight
6.5 oz (185 g)
Packaging Info
Package Weight
1.6 lb
Box Dimensions (LxWxH)
18 x 9 x 4″
