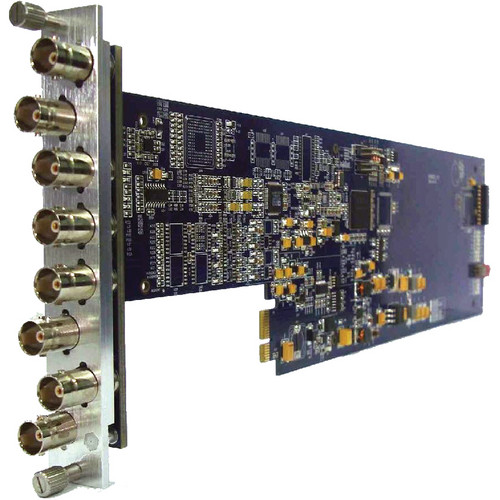

Gra-Vue XIO 9020ENC SD-SDI to 4 x Composite Video Converter Card with Loop Through

Add to Wishlist

AED4,599.00

Add to Wishlist

The Gra-Vue XIO 9020ENC SD-SDI to 4 x Composite Video Converter Card with Loop Through is based on the XIO Modular Platform. It installs into and is powered by either the XIO-1U or XIO-3U Chassis. This unit converts a single SD-SDI signal to 4 analog composite video signals, and outputs 2 SDI signals. It supports NTSC and PAL standards.

The XIO 9020ENC Converter provides automatic signal equalization for up to 656ā€™ (200m) on Belden 1694A coax cables, which can improve the signal quality and reduce the signal loss caused by long-distance transmission. The LED lights on the module indicate the status of input signal and power supply, in order to let the user know the status immediately. This converter supports SNMP. It can be managed in real-time and monitored by XIO NET, the Network Management Module, via Ethernet.

SKU: XIO 9020ENC Category: Tag:
Digital Video Input
Interface
Input: 1 x SD-SDI, BNC
Impedance
75 Ī©
Format
525i 60, 625i 50 SMPTE 259M-C 270 Mb/s
Maximum Length
<656′ (200 m) (Belden 1694A)
Digital Video Output
Output Interface
2 x SDI, BNC
Impedance
75 Ī©
Format
525i 60, 625i 50 SMPTE 259M-C 270 Mb/s
Level
800 mV Ā± 5%
Jitter
<0.2 UI (100 kHz)
Analog Video Output
Output Interface
4 x CVBS, BNC
Impedance
75 Ī©
Format
525i 60, 625i 50 SMPTE 259M-C 270 Mb/s
Indicator
Status Indicator
Signal status indicator and power indicator (Indicated by shining or extinguishing of the green LED)
Physical
Dimensions
14.30 x 3.90 x 0.03″ (365.00 x 100.00 x 1.00 mm)
Weight
6.5 oz (185 g)
Packaging Info
Package Weight
1.6 lb
Box Dimensions (LxWxH)
18 x 9 x 4″
