Gra-Vue XIO 9020ENS-4AUD SD-SDI to Dual Composite Video & Audio Converter with Frame Sync

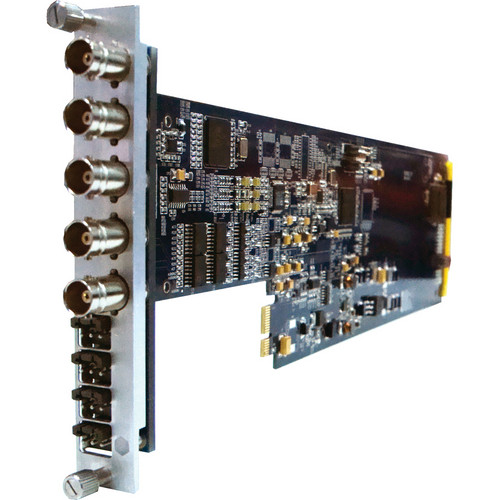

The Gra-Vue XIO 9020ENS-4AUD SD-SDI to Dual Composite Video & Audio Converter with Frame Sync is a modular converter card designed to be used in either the XIO 1U or 3U Modular Platform Chassis (sold separately). It converts one SDI signal (625i 50 and 525i 60) to 2 analog composite video signals and also outputs one SDI loop signal. The output signals go through frame sync processing. In addition, 2 analog stereo audio signals are extracted from the SDI input. This de-embedded audio can be selected by a DIP switch to be used as input for crossing output, mixing output, and other similar applications.

The XIO 9020ENS-4AUD Converter provides automatic signal equalization for long cable applications (up to 656’ over Belden 1694A). This improves the signal quality and reduces the signal loss caused due to long distance transmission of the input source. The LED lights on the module indicate the status of the input signal and power supply to let you know the signal and power status immediately. The converter also supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet.
