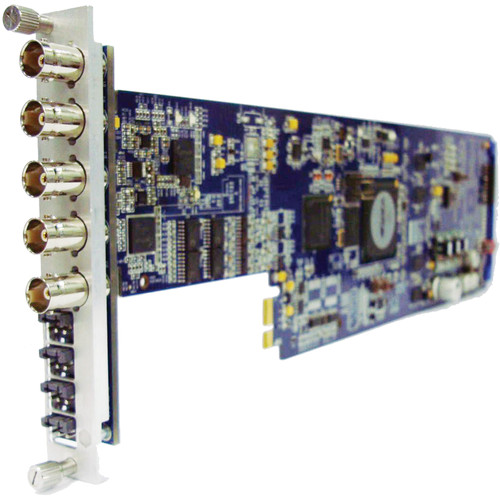

Gra-Vue XIO 9040VSD-HD-DC-3U SDI Downconverter for XIO Rackmount Frame

Add to Wishlist
Key Features
  • SDI Input with Loop-Through
  • Two Mirrored SDI Outputs
  • Provides Signal Equalization
  • For 3RU Frame

AED10,599.00

Add to Wishlist

The XIO 9040VSD-HD-DC-3U SDI Downconverter for XIO Rackmount Frame from Gra-Vue is an downconverter for broadcast applications that installs in the XIO series rackmount frames. It features and SDI input with loop out and two mirrored SDI outputs for the converted signal.

The converter supports 625i 50, 525i 60, 720p, 1080i, 1080p, 1080psf ) with automatic detection of the signal type. In addition, it can convert from PAL to NTSC and vice-versa
Features a dedicated refernce input and frame sync processing so that video can be kept in sync by a common house clock
Supports three sync modes: INT, single EXT, and Global EXT
Provides automatic signal equalization to help compensate for information lost do to long cable runs
Supports AFD and manual image adjustment. Options include: bar, stretch, and crop
Supports hot swapping of connecting cables
LED lights indicate the status of signals and power supply
Support SNMP protocol, and can be managed and monitored in real-time using XIO NET and the frame’s Ethernet connection
SKU: XIO 9040VSD-HD-DC-3U Category: Tag:
SDI Input
Connector: 1 x HD/SD-SDI on BNC female
Impedance: 75 ohm
Formats: SD: 625i50, 525i60; HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24

Maximum Cable Length: Up to < 328′ (100 m) when using Belden 1694A cable
Reference Input
Connector: 1 x Analog composite video on BNC female
Standard: NTSC, PAL
Audio Output
None
SDI Loop Output
Not specified by manufacturer
Converted SDI Output
Connector: 2 x SD-SDI on BNC female — mirrored output
Impedance: 75 ohm
Formats: 525i60, 625i50
Level: 800 mV ±5%
Jitter: <0.2 UI (100 KHz)
Supported Standards
SD: SMPTE 259M-C (270 Mb/s)
HD: SMPTE 292M (1.485 Gb/s)
Status Indicator
Signal status indicator, Power indicator (indicated by illuminating or muting a green LED)
