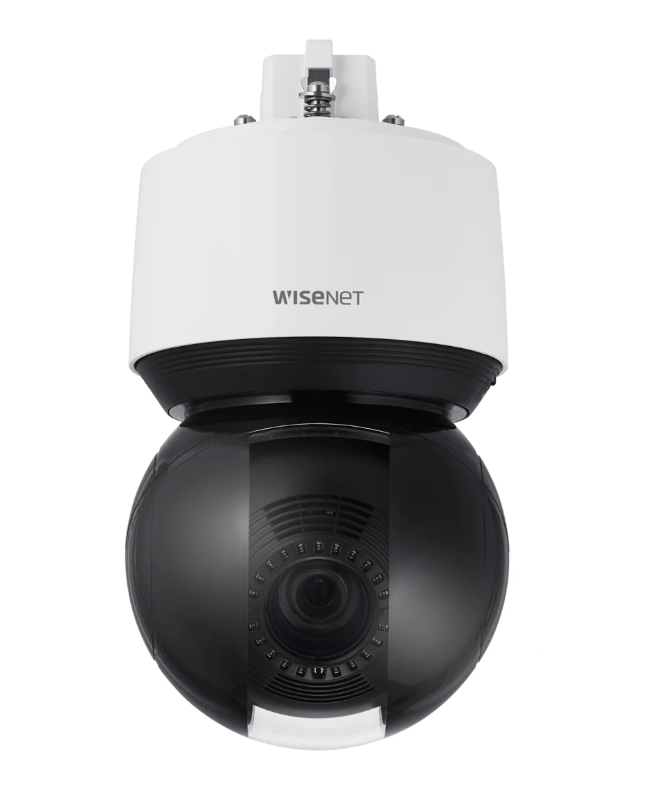

ā¢ Max. 6MP resolution
ā¢ 5~125mm (25x) optical zoom (digital 32x, total 800x zoom)
ā¢ Max. IR viewable length 200m (Wise IR)
ā¢ Day & Night (ICR), extreme WDR (120dB), DIS (Built-in gyro sensor)
ā¢ Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
ā¢ H.264, H.265, MJPEG codec, WiseStreamII
ā¢ IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
ā¢ PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
6MP resolution and 25x zoom, powerful PTZ performance
PTZ PLUS supports remarkable performance with new in-house developed 6MP 25x zoom lens. Experience powerful new PTZ’s performance.
AI based object auto tracking
PTZ PLUS supports object (person or vehicle) auto tracking based on AI deep-learning algorithm. And by simply right-clicking an object on a screen, it locks the object and tracks the targeted object. (target-lock tracking)
Wise IR, offering optimized IR at every zoom ratio
PTZ PLUS allows for monitoring in complete darkness up to 200meters with Wise IR. It optimizes amount of IR at every zoom ratio.
Product Spec
-
Video Imaging Device 1/2.8″ CMOS Resolution 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720,
1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.1Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED On)Lens Focal Length (Zoom Ratio) 5~125mm(25x) zoom (digital 32x, total 800x zoom) Max. Aperture Ratio F1.6(Wide)~F3.73(Tele) Angular Field of View H: 57.42Ā°(Wide)~2.71Ā°(Tele) / V: 33.54Ā°(Wide)~1.55Ā°(Tele) Min. Object Distance 3m(9.84ft) Focus Control Oneshot AF, Focus save Lens Type DC auto iris Pan / Tilt / Rotate Pan Range 360Ā° Endless Pan Speed Max. 700Ā°/sec, Manual: 0.024Ā°/sec~250Ā°/sec Tilt Range 110Ā°(-20Ā°~90Ā°) Tilt Speed Max. 500Ā°/sec, Manual: 0.024Ā°/sec~250Ā°/sec Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule Preset Accuracy Up to ‘Ā±0.1Ā°, Pan/Tilt correction Operational Camera Title Displayed up to 85 characters Direction Indicator Support Day & Night Auto(ICR)/Color/BW/Schedule Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range Extreme WDR(120dB) Digital Noise Reduction SSNRā ¤ Digital Image Stabilization Support(built-in gyro sensor) Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal Support
– Color: Grey/Green/Red/Blue/Black/White
– MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection
* Audio detection, Sound classification(with NW I/O Box)Alarm Triggers Analytics, Network disconnect
* Alarm input(with NW I/O Box)Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
PTZ Preset
Handover
* Alarm output(with NW I/O Box)Water Removal Support(Spinning dry) Auto Tracking Object auto tracking(Person/Vehicle), Target lock tracking Network Ethernet Metal shielded RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area), WiseStreamā ” Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast (128 user)
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device certificate(Hanwha Techwin Root CA)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, GreekEdge Storage Micro SD/SDHC/SDXC 2slot 1TB Memory 4GB RAM, 512MB Flash Environmental & Electrical Operating Temperature / Humidity -40Ā°C~+60Ā°C(-40Ā°F ~ +140Ā°F) / Less than 95% RH(Non-condensing)
Maximum Temperature based on NEMA-TS 2(2.2.7) : +74Ā°C(+165Ā°F)Storage Temperature / Humidity -50Ā°C~+60Ā°C (-58Ā°F~+140Ā°F) / Less than 95% RH(Non-condensing) Certification IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) Input Voltage HPoE(IEEE802.3bt, Class6, Type3, Injector included) Power Consumption Typical 20W, Max 40W Mechanical Color / Material Body : White / Aluminum
Head : Black / Polycarbontate
Hard-coated domeRAL Code White: RAL9003 / Black: RAL9005 Product Dimensions / Weight Ć158×293.3mm(6.22×11.55″) / 3.2Kg(7.05lb) DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 121.5m(398.7ft) / Tele: 2813.9m(9232.1ft) Observe (63PPM/ 19PPF) Wide: 48.6m(159.5ft)/ Tele: 1125.6m(3692.8ft) Recognize (125PPM/ 38PPF) Wide: 24.3m(79.7ft)/ Tele: 562.8m(1846.4ft) Identify (250PPM/ 76PPF) Wide: 12.2m(39.9ft) / Tele: 281.4m(923.2ft)
