Hewlett / HPE 872357-B21 400GB MLC SATA Solid State Drive Kit 651314-001
1,299.00 د.إ
Hewlett Packard / HPE 872357-B21 / 872513-001 / 870053-002 / EK000400GWEPE 400GB 3.5-Inch LFF 6Gbps MLC HS Write Intensive SCC DS SATA Solid State Drive Kit 651314-001 – New Pull
Hewlett Packard / HPE 872357-B21 / 872513-001 / 870053-002 / EK000400GWEPE 400GB 3.5″ LFF / Large Form Factor 6.0 Gb/s MLC / Multi Level Cell HS / Hot-Swap WI / Write Intensive 10-DWPD / Drive Writes Per Day SCC / Smart Carrier Cinverter DS SATA Solid State Drive Kit 651314-001 – New Pull
HPE Solid State Disk Drives (SSD & Add-In Cards)
HPE Solid State Drives (SSDs) & Accelerators are based upon industry leading NAND Flash technology, which delivers exceptional performance and endurance to support a growing broad spectrum of demanding applications with varying workload performance requirements.
These storage devices offer better I/O latency & more power efficient solutions when compared with traditional rotating (HDD) media, while also fitting seamlessly into existing HPE server & storage infrastructures, and are available in a number of form factors including: Small Form Factor (SFF), Large Form Factor (LFF), M.2, and PCIe/NVME Add-In-Cards (AIC) & modules.
Firmware Updates
- HPE Digitally Signed Firmware – Prevents unauthorized access to your data by providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks
- For advanced data protection and encryption, customers should consider HPE Smart Array Controllers with HPE Smart Array Secure SR Encryption. It is a controller-based data encryption solution for HPE servers that protects data-at-rest on all SAS and SATA drives connected directly to the controller. This solution meets stringent compliance regulations such as HIPAA, FIPS, and Sarbanes-Oxley.
NOTE: Reference column VI-1 when comparing RI SSDs, & column VI-2 for comparing MU & WI SSDs.
This KitTray is Compatible with HP Proliant Gen8 , Gen9 Server that accept 3.5″ SAS and SATA hard drives. Including but not limited to: DL160 Gen8,DL320e Gen8, DL360e Gen8, DL360p Gen8, DL380e Gen8, DL380p Gen8, DL385p Gen8, ML310e Gen8, ML350e Gen8, ML350p Gen8, SL4540 Gen8, SL4545 Gen8, ML30 Gen9

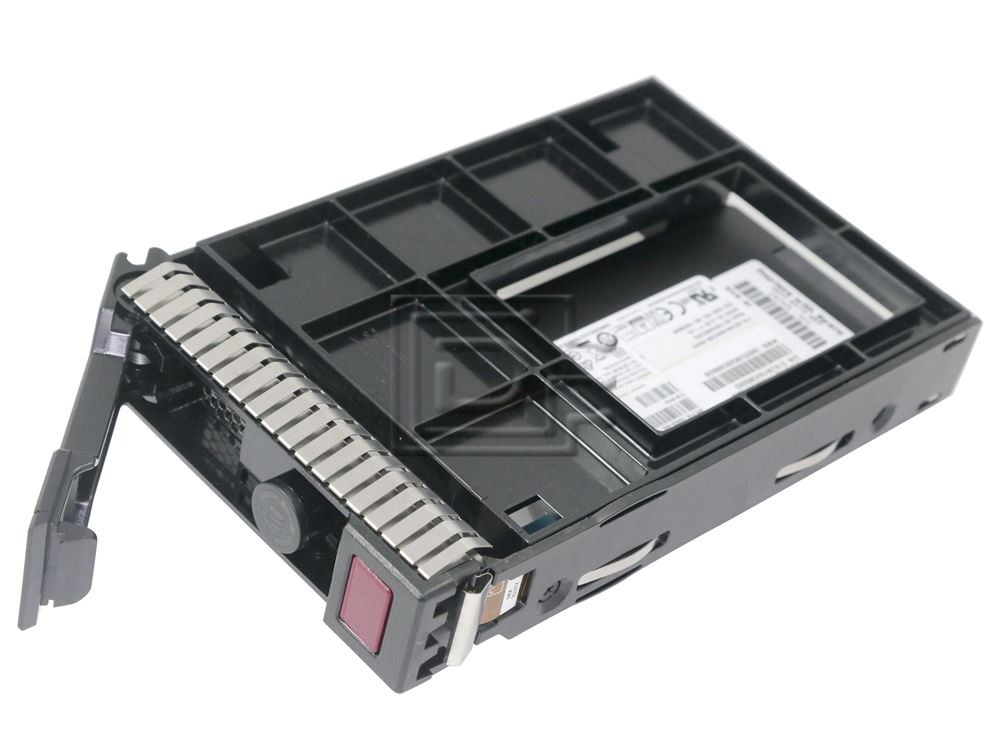

The kit contains one 400GB SATA Solid State Disk Drive mounted in a 651314-001 tray / caddy
| HP Solid State Drive (SSD) | |
|---|---|
| Option Part#: | 872357-B21 |
| Alternate Part#’s: | HPE Model Number:
Drive Assembly Number:
Spare Part Number:
|
| DESCRIPTION | HP 400GB 6G SATA WI LFF SCC DS SSD |
| SATA – INTERFACE (CAPACITY, WORKLOAD, CARRIER…) | |
| CAPACITY | 400 GB |
| WORKLOAD TYPE | Write Intensive (WI) |
| INTERFACE TYPE | Serial ATA (SATA) |
| FORM FACTOR | Large Form Factor (LFF) |
| PLUG TYPE | Hot Plug |
| CARRIER TYPE | Smart Carrier Converter(SCC) |
| DIGITALLY SIGNED FIRMWARE (DS) | Yes |
| FLASH TYPE | Multi-Level Cell (MLC) |
| SERVER GEN SUPPORTED (SELECT PLATFORMS) | Gen9 Gen10 |
| SATA – INTERFACE (SPEEDS & FEEDS) | |
| ENDURANCE DWPD | 10 |
| ENDURANCE TBW / PBW | 7300/7.3 |
| MAX SEQ. READS THROUGHPUT (MiB/s) | 510 |
| MAX SEQ. WRITE THROUGHPUT (MiB/s) | 475 |
| RANDOM READ AVERAGE LATENCY uSec (4KiB, Q1) | 110 |
| RANDOM WRITE AVERAGE LATENCY uSec (4KiB, Q1) | 37 |
| RANDOM READ IOPS (4KiB, Q=16) | 63,000 |
| RANDOM WRITE IOPS (4KiB, Q=16) | 46,500 |
| MAX RANDOM READ IOPS (4KiB) | 69,000Q32 |
| MAX RANDOM WRITE IOPS (4KiB) | 46,500Q4 |
| 4KiB RANDOM 70% READ / 30% WRITE, QUEUE 32 PERFORMANCE (IOPS) VI-1 | 61,000 |
| 4KiB RANDOM 50% READ / 50% WRITE, QUEUE 32 PERFORMANCE (IOPS) VI-2 | 60,000 |
| SATA – INTERFACE (POWER & HEIGHT) | |
| POWER IDLE TIME | 1.23 |
| POWER RANDOM READ | 2.17 |
| POWER RANDOM WRITE | 2.17 |
| POWER SEQUENTIAL READ | 2.19 |
| POWER SEQUENTIAL WRITE | 2.33 |
| POWER RANDOM R/W | 2.17 |
| HEIGHT | N/A |
