HighPoint RocketRAID 640L SATA III PCIe 2.0 x4 Host Bus Adapter

Add to Wishlist
Key Features
  • PCIe 2.0 x4 Interface
  • 4 x Internal SATA III Ports
  • RAID 0, 1, 5, 10, JBOD Modes
  • Port Multiplier
  • Activity/Failure LEDs
  • Alarm/Buzzer
  • Windows and Linux Compatible

599.00 د.إ

Add to Wishlist

HighPoint 640L Overview

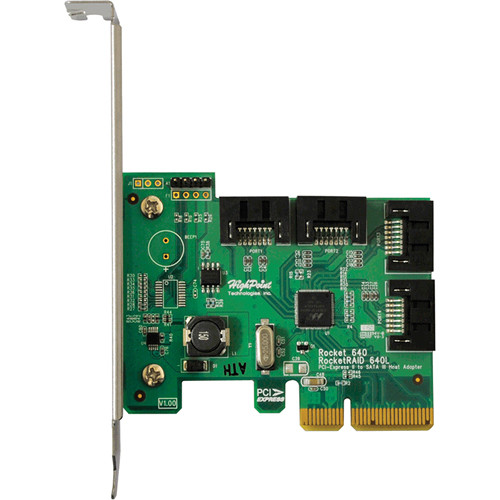

The RocketRAID 640L SATA III PCIe 2.0 x4 Host Bus Adapter from HighPoint provides your Windows or Linux computer with four SATA III ports that can be use to connect to internal storage drives. This low-profile adapter occupies an available PCIe 2.0 x4 slot and comes with a RAID management suite. You can use this suite to configure your drives in a RAID 0, 1, 5, 10, or JBOD mode. Additionally, it has alarm/buzzer and activity/fail notifications.

Hardware
  • Up to 6 Gb/s per port
  • Four SATA channels
  • PCI-Express 2.0 x4/x1
  • Industry standard SATA connectors
  • Alarm Buzzer, Active/Fail LED support
  • Directly supports 4 SATA devices / up to 20 with an optional port multiplier enclosure
  • Backward compatible with HighPoint SATA RAID Host adapters
  • Low-profile form factor

Monitoring and Management Support

  • Supports SMTP
  • Supports event log

Configuration Management Suites

  • BIOS configuration tool
  • Browser-based management interface
  • CLI (Command Line Interface) for Linux

Advanced RAID

  • RAID 0, 1, 5, 10, JBOD
  • Redundant RAID configuration for array availability
  • RAID initialization types – background, foreground, and quick
  • OCE (Online Capacity Expansion)
  • ORLM (Online RAID Level Migration)
  • NCQ (Native Command Queuing)
  • Staggered drive spin up
  • Spin down idle disk
  • S.M.A.R.T support
  • Auto rebuild on spare drive
  • Hot-plug and hot-swap support
  • Larger than 2TB drive support
  • Bootable RAID array support
  • Write back or write through cache support
SKU: RR640L Category:

HighPoint 640L Specs

General
System Connection PCI Express 2.0 x4
RAID RAID 0, 1, 10, 5, JBOD
OS Compatibility Windows 7
Windows 8
Windows 8.1
Windows 10
Windows Server 2008
Windows Server 2012
Linux
*As of July, 2020: Check with manufacturer for the most up-to-date compatibility
Environmental
Operating Temperature 41 to 131°F / 5 to 55°C
Operating Humidity 5 to 60%
Storage Temperature -4 to 176°F / -20 to 80°C
Physical
Form Factor Low-Profile
Audible Alarm Yes
Status Monitoring LED Indicator
Dimensions 3.12 x 2.56″ / 79.25 x 65.02 mm
Packaging Info
Package Weight 0.5 lb
Box Dimensions (LxWxH) 7.8 x 6.9 x 0.9″
