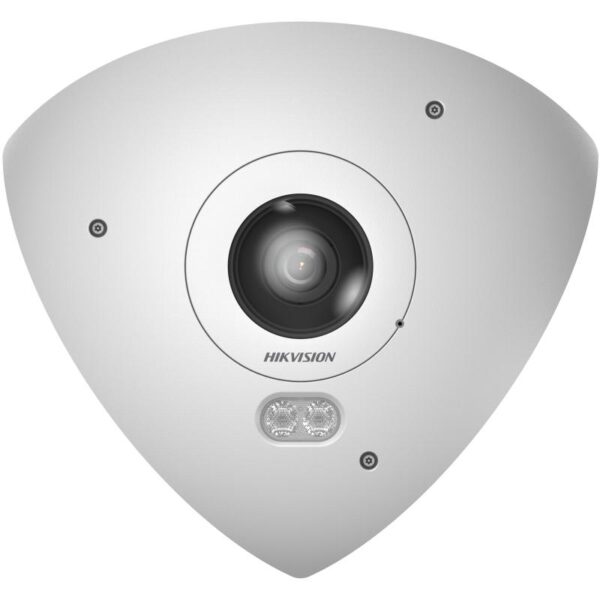

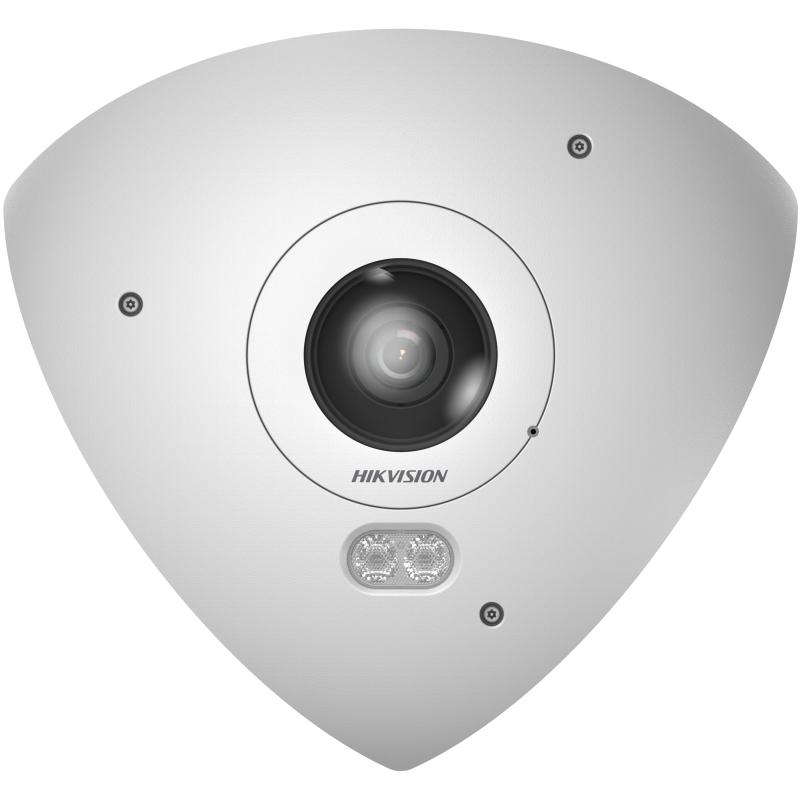

IK10+,NEMA 4X,WDR, Detention Grade Wide Panorama 4MP Corner Mount
- High quality imaging
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. ResolutionFisheye view: 3072 × 2048, panorama view: 2400 × 1800
- Min. IlluminationColor: 0.082 Lux @ (F2.4, AGC ON),B/W: 0.016 Lux @ (F2.4, AGC ON),0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 2 mm
- Focal Length & FOV2mm, horizontal FOV 135° (corner mount)
- Iris TypeFixed
- ApertureF2.4
- DORI
- DORID: 43.2 m (141.7 ft), O: 17.2 m (56.4 ft), R: 8.6 m (28.2 ft), I: 4.3 m (14.1 ft)
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 10 m
- Smart Supplement LightYes
- IR Wavelength940 nm
- Video
- Main Stream
Fisheye view:
50 Hz: 25 fps (3072 × 2048)
60 Hz: 25 fps (3072 × 2048)
Panorama view:
50 Hz: 25 fps (2400 × 1800)
60 Hz: 25 fps (2400 × 1800)
- Sub-Stream
Fisheye view:
50 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480)
60 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480)
Panorama view:
50 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240)
- Third Stream
Fisheye view:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Panorama view:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed region(s) for main stream and sub-stream
- Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
- Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
- Web Browser
IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
- Image
- Image Parameters SwitchYes
- Image Settingssaturation,brightness,contrast,sharpness,AGC,adjustable by client software or web browser,white balance
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC,HLC,3D DNR,defog
- Privacy Mask4 programmable polygon privacy masks
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-in Microphone1 built-in microphone(s)
- Audio
- 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
- Alarm1 input, 1 output (max. 24 VDC, 1 A)
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- IndicatorYes
- Event
- Basic EventMotion detection,video tampering alarm,alarm input and output,network disconnected,IP address conflict,illegal login,HDD full,HDD error
- Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection
- General
- Power
12 VDC ± 20%, 0.9 A, max. 11 W,
2-core terminal block,
PoE: 802.3af, Class 0, 36 V to 57 V, 0.3 A to 0.2 A, max. 12 W
- Dimension213.73 mm × 199.67 mm × 137.57 mm (8.4″ × 7.86″ × 5.42″)
- Package Dimension255 mm × 255 mm × 190 mm (10.04″ × 10.04″ × 7.48″)
