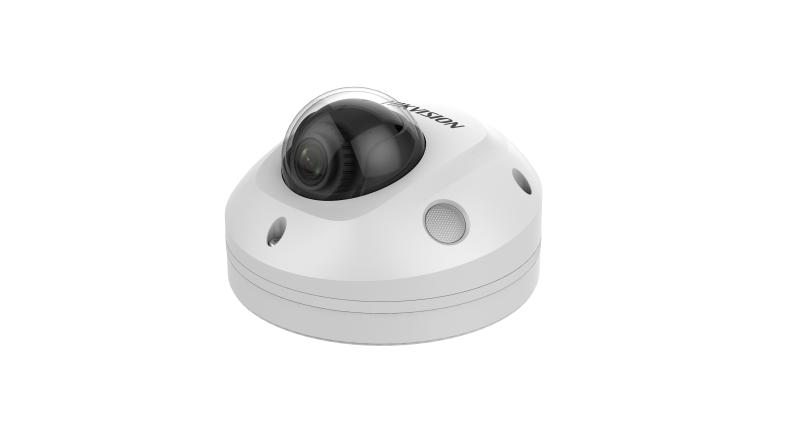

Hikvision DS-2XM6756G0-IM/ND(2.0mm) Mobile IPC,IP67,IK10,M12

Add to Wishlist

د.إ2,699.00

Add to Wishlist

1/2.9″ progressive scan CMOS, 3072 × 2048 @ 20fps, 120dB WDR, ICR, Up to 30m IR range, Up to 128GB Micro SD card slot, Support H.264 & H.265 codec,4 behavior analyses, and face detection IK10,IP67

  • High quality imaging with 5 MP resolution
  • 2/2.8/4/6/8 mm fixed lens
  • Three streams
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • 4 behavior analysis and object detection
SKU: DS-2XM6756G0-IM/ND(2.0mm) Category: Tag:
  • Camera
  • Image Sensor1/2.9″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Lens
  • Focal Length & FOV

    2 mm, horizontal FOV 119.4°, vertical FOV 81.9°, diagonal FOV 142.5°

    2.8 mm, horizontal FOV 97.5°, vertical FOV 63.6°, diagonal FOV 119.9°

    4 mm, horizontal FOV 73°, vertical FOV 47.8°, diagonal FOV 90.2°

    6 mm, horizontal FOV 50.1°, vertical FOV 33.2°, diagonal FOV 61°

    8 mm, horizontal FOV 36.4°, vertical FOV 23.9°, diagonal FOV 44.2°

  • Lens MountM12
  • Aperture

    2 mm, F2.25,

    2.8/4/6 mm, F2.0,

    8 mm, F1.6,

  • Video
  • Max. Resolution3072 × 2048
  • Main Stream

    50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

  • Third Stream

    50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

    60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8Kbps-320Kbps(MP3)
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • Network Storage

    MicroSD/SDHC/SDXC card (up to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11

    Plug-in free live view: Chrome 45+, Mozilla Firefox52+

  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • DNR3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10M/100M Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Audio1 built-in mic, mono sound
  • Alarm-S: 1 input, 1 output (12 VDC, 30 mA)
  • Reset KeyYes
  • Event
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event

    Line crossing detection, up to 1 line configurable

    Intrusion detection, up to 1 region configurable

    Unattended baggage detection, up to 1 region configurable

    Object removal detection, up to 1 region configurable

    Object detection: detects faces and upload images

  • LinkageUpload to FTP/NAS/memory card, notify monitoring center, send email, trigger recording, trigger capture
  • General
  • Camera Dimension

    Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″)

    With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)

  • Camera Weight

    Camera: Approx. 460 g (1 lb.)

    With package: 900 g (2 lb)

  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
  • General FunctionAnti-flicker, 3 streams, heartbeat, mirror, privacy mask
