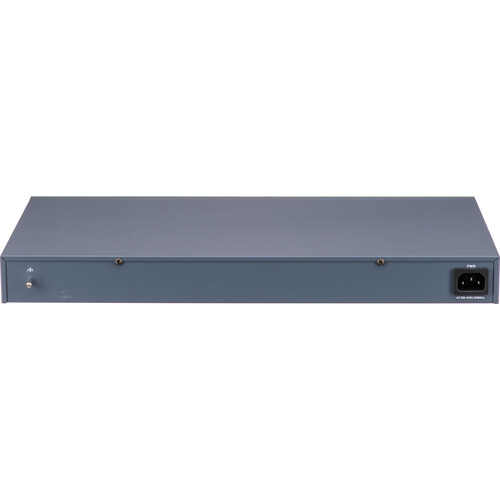

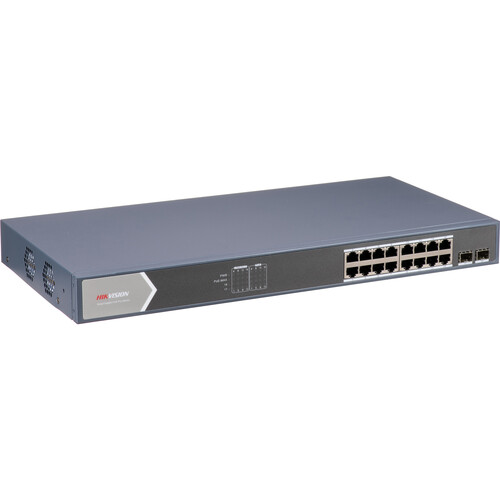

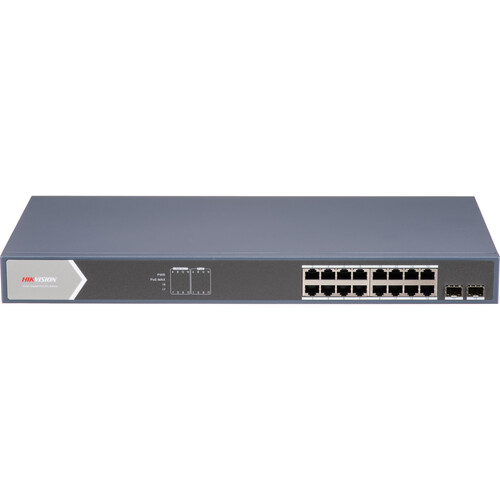

Hikvision DS-3E1518P-SI 16-Port Gigabit PoE+ Compliant Managed Network Switch

Add to Wishlist
Key Features
  • 16 x Gigabit Ethernet PoE+ Ports
  • 2 x Gigabit SFP Port
  • 36 Gb/s Switching Capacity
  • 26.784 Mpps Forwarding Rate
  • 225W Power Budget
  • Up to 984.3′ Range
  • Fanless Design

AED1,399.00

Add to Wishlist

Hikvision DS-3E1518P-SI Overview

Quickly expand your business’s network to support IP cameras, access points, VoIP phones, and other PoE compatible devices with the DS-3E1518P-SI 16-Port Gigabit PoE+ Compliant Managed Network Switch from Hikvision. Each of 16 of the Gigabit Ethernet ports deliver data and up to 30W of power to compatible devices with a total power budget of 225W, providing you added flexibility for your installation and reduced cabling costs.

When set to Extend mode, you can power devices up to 984.3 feet away while sending data at 10 Mb/s speeds. There are also two Gigabit Ethernet ports available for uplink connections to compatible devices. With easy management, 36 Gb/s switching capacity, and 26.784 Mpps forwarding rate, this switch provides smooth data transfers between devices. The metal chassis and fanless design allows the switch to operate silently.

Smooth Performance
A 36 Gb/s switching capacity and a 26.784 Mpps forwarding rate help to ensure fast and reliable data transfers.
PoE Watchdog
This switch automatically detects and restarts unresponsive cameras.
Extended Range
Configure the DIP switches to enable extended mode, which can transfer data at up to 10 Mb/s over a 984.25′ range using select ports.
Port Isolation
Separating data traffic between different ports helps to enhance network security.
Silent Design
The metal enclosure provides silent cooling, maintaining optimal performance without disturbing the environment.
SKU: DS-3E1518P-SI Category: Tag:
Key Specs
Inputs/Outputs
16x RJ45 Gigabit Ethernet PoE (Unspecified)
2x SFP Gigabit Ethernet WAN
Switching Bandwidth
36 Gb/s
PoE Power Budget
225 W
Protocols
Layer Services Supported
Layer 2
Supported Protocols
Auto-MDIX/MDI
Link Aggregation
Port Mirroring
Queuing
Strict Priority, Weighted Round Robin (WRR)
MAC Address Table Size
8K
Security
Security Features
Storm Control
Performance
Forwarding Rate
26.78 Mpps
Switching Bandwidth
36 Gb/s
Packet Buffer
4.1 Mb
Electrical
PoE per Port
30 W
PoE Power Budget
225 W
Power Draw
250.00 W (Max)
25.00 W (Idle)
Input Power
100 to 240 VAC, 50 / 60 Hz at 4 A
Power Supply Type
Internal
General
Certifications
FCC, CE, EN, IEC, IC, RCM, UL, RoHS, WEEE, REACH
Operating Conditions
14 to 131°F / -10 to 55°C at 5 to 95% Humidity
Storage Conditions
-40 to 185°F / -40 to 85°C at 5 to 95% Humidity
Cooling System
Passive
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
No
Dimensions
17.3 x 8.7 x 1.7″ / 440 x 220.8 x 44 mm
Weight
6.03 lb / 2.74 kg
Packaging Info
Package Weight
7.55 lb
Box Dimensions (LxWxH)
21.2 x 12.6 x 3.5″
