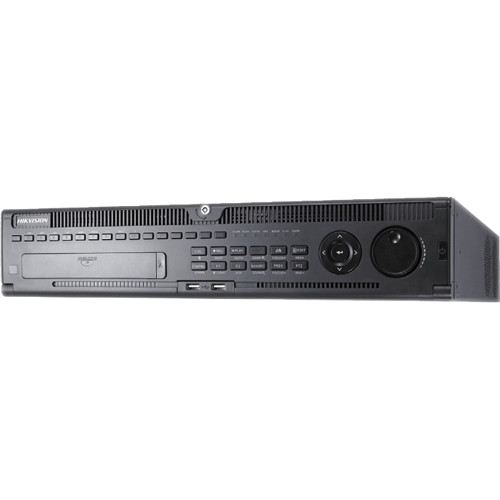

Hikvision DS-7716NI-I4/16P-16TB Hikvision, Nvr, 16-Channel, H264+/H264/H265, Up to 12Mp, Integrated 16-Port Poe, Hdmi, 4-Sata, with 16Tb HDD

Hikvision DS-7716NI-I4/16P-16TB Hikvision, Nvr, 16-Channel, H264+/H264/H265, Up to 12Mp, Integrated 16-Port Poe, Hdmi, 4-Sata, with 16Tb HDD

• Connect Up to 16 Cameras
• 2560 x 1920 Recording/Playback
• Pre-Installed 16TB Storage Space
• H.264 Video Compression
• Simultaneous HDMI, VGA, and CVBS Outputs
• Supports up to 16-Ch PoE Switch
• 8 SATA Ports (Up to 6TB Each)
• Dual-Stream Per Channel
• Channel Configurable Record Parameters
• JPEG Picture Capture and Playback

  The 16TB 16-Channel 5MP Embedded NVR from Hikvision allows you to connect 16 IP cameras through a supported 16-channel PoE switch (available separately). Using a switch enables the cameras to operate on PoE power, and it allows you to connect both Hikvision and third-party cameras. Recording parameters, including resolution, frame rate, bit rate, and image quality, are individually configurable for each channel. The NVR employs H.264 compression to provide high quality images while utilizing low network bandwidth.

  The NVR offers an alarm function for video loss, motion detection, tampering, HDD full / error, network disconnection, IP conflict, and more. Alarm triggers include full screen monitoring, audible warning, surveillance center notification, email alert, and alarm output.

  Compression

  • Supports up to 16-channel PoE switch (sold separately)
  • Support for third-party cameras
  • Up to 5MP recording resolution
  • Each channel supports dual-stream
  • H.264 video compression
  • Independently configurable channels; recording parameters include resolution, frame rate, bit rate, and image quality
  • Locally/remotely configurable compression parameters (continuous and event) for each channel
  • Configurable video input/output quality
  • Encoding for both audio/video composite stream and video stream; audio and video synchronization during composite stream encoding
  • Watermark support

  Local Monitoring

  • Simultaneous HDMI, VGA, and CVBS outputs
  • HDMI and VGA outputs at up to 1080p resolution
  • Division live view (1 / 4 / 6 / 8 / 9 / 16) is supported, and the display sequence of screens is adjustable
  • Live view screen can be switched in group
  • Manual switch and automatic cycle live view are also provided; interval of automatic cycle can be adjusted
  • Selected live view channel can be shielded
  • Motion detection, tamper-proof, video exception alert, and video loss alert functions
  • Manual video quality detection and handling
  • Privacy mask
  • Supports multiple PTZ protocols (PTZ preset, patrol, and pattern)
  • Zoom in (mouse click) and PTZ tracing (mouse drag) functions

  HDD Management

  • 8 SATA ports for internal hard drives (up to 6TB per each)
  • 1 eSATA port (up to 2TB) for recording or backup
  • HDD group and quota management; different capacities can be assigned to different channels
  • Supports S.M.A.R.T. and bad sector detection

  Recording, Capture, and Playback

  • Holiday recording schedule configuration
  • Continuous and event video encoding parameters
  • 8 recording periods with separate recording types (configurable)
  • Pre-record and post-record for alarm, motion detection for recording, and pre-record time for schedule
  • Search record files and captured pictures by events (alarm input/motion detection)
  • Customization tags, searching, and playing back by tags
  • Supports locking and unlocking recorded files
  • Search and play back recorded files by channel number, recording type, start time, and end time
  • Smart search for motion event when playing back
  • Supports zooming in during playback
  • Reverse playback for multiple channels
  • Supports pause, speed up, speed down, skip forward, and skip backward during playback
  • Synchronous playback for up to 16-channel
  • Smart playback feature
  • Continuous capture of video images and playback of captured pictures
  • Supports selecting the main stream, sub stream, or transcoded stream as the recording stream

  Backup

  • Export video data to USB or eSATA device
  • Export video clips when playing back
  • Management and maintenance of backup devices
  • Automatic backup to eSATA device
  • Clone hard drives to eSATA device

  Alarm and Exception

  • Alarm for video loss, motion detection, tampering, HDD full, HDD error, network disconnection,
  • IP conflict, illegal login, video signal exception, input/output video standard mismatch, and recording/capture exception
  • Alarm triggers full screen monitoring, audible warning, surveillance center notification, email alert, and alarm output
  • Automatic restore when system is abnormal
  • Push alarm notification function

  Other Local Functions

  • Users can operate the device using the front panel, mouse, remote control, or control keyboard
  • 3-level user management — admin can create multiple accounts and define their permissions, including access to any channel
  • Operation, alarm exceptions, and information log recording and searching
  • Import and export device configuration information

  Network

  • 2 self-adaptive 10/100/1000 Mb/s network interface
  • Configurable working modes (multi-address, load balance, and network fault tolerance)
  • Supports IPv6
  • TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, UPnP, NFS, and iSCSI are supported
  • TCP, UDP and RTP for unicast
  • Auto/manual port mapping and automatic discovery by UPnP
  • Remote Web browser access by HTTPS ensures high security
  • Remote search, playback, download, locking and unlocking of recorded files, and resuming transfer of incomplete downloaded files
  • Remote parameters setup (import/export of device parameters)
  • Remote viewing of device status, system logs, and alarm status
  • Remote keyboard operation, locking and unlocking of control panel and mouse, HDD formatting and program upgrade, system restart and shutdown, PTZ control and JPEG capture
  • Remotely start/stop recording and alarm output
  • Alarm and exception information can be sent to the remote host
  • Supports remote upgrade via FTP server
  • Two-way voice talk and voice broadcasting
  • Embedded Web server
  • N+1 hot spare function
  • Supports ANR (Automatic Network Replenishment) technology
  • Supports virtual host function

  Development Support

  • SDK for Windows and Linux OS
  • Source code of application software for demo
  • Development support and training for application system
