Network Adapters

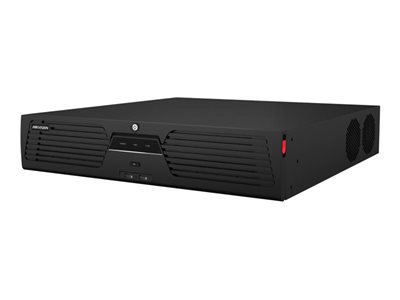

Hikvision M Series 8K NVR
Hikvision M Series 8K NVR – Network Video Recorder – HDMI – 8K Recording
AED9,299.00
| General |
| Device Type | NVR – rack-mountable – 2U |
| Video Channels | 64 |
| IP Cameras Supported | 64 |
| Audio Channels | 2 |
| TV System | NTSC/PAL |
| Image Resolution | 1920×1080, 3840×2160, 2560×1440, 7680×4320 |
| Compression Format | H.264, H.265, H.264+, H.265+ |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, FCC, EN 55032:2015, EN 50130-4 |
| Security DVR |
| Frame Rate (Playback) | 30 fps |
| Networked | Yes |
| Features | RAID 5 support, RAID 10 support, RAID 0 support, RAID 1 support, RAID 6 support |
| Hard Drive |
| Quantity Supported | 8 |
| Interface | Serial ATA |
| Supported Max Total Capacity | 128 TB |
| Networking |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DHCP, DNS, HTTP, NTP, SMTP, TCP/IP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, NFS, SADP, ISUP, UDP |
| Features | Two-way audio support |
| Connections |
| Video Output Ports | HDMI x 2, BNC x 1, VGA x 2 |
| Video Output Signal Level | 1.0Vp-p 75 Ohm |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 2 |
| Alarm Ports | Alarm input x 16, alarm output x 9 |
| Camera Control Interface (PTZ) | RS-232/485 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, eSATA x 1, USB 3.0 x 2 |
| Power |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 50 Watt |
| Dimensions & Weight |
| Width | 17.5 in |
| Depth | 18.3 in |
| Height | 3.7 in |
| Weight | 22.05 lbs |
| Environmental Parameters |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% |
There are no reviews yet.
