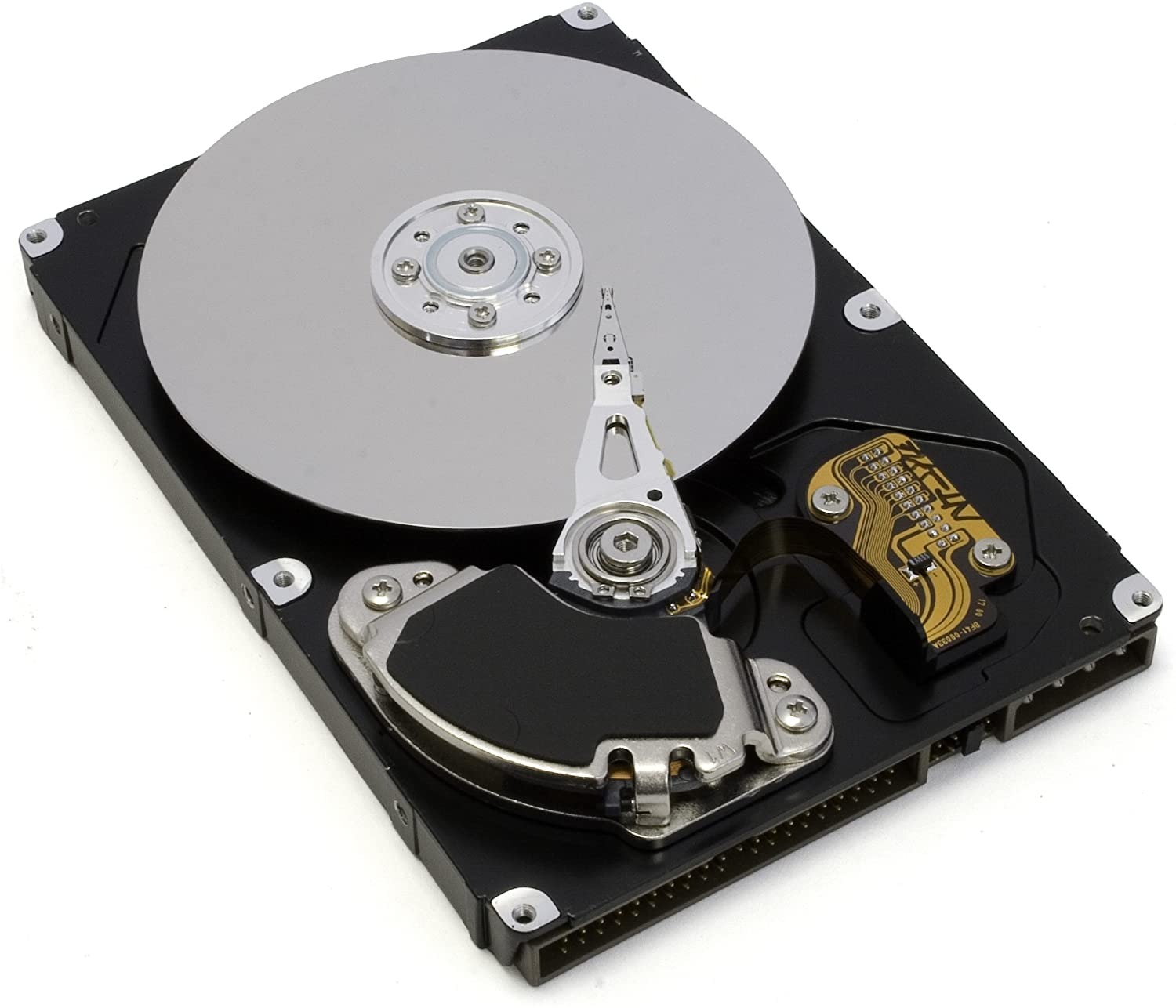

Hitachi Ultrastar 08K0312 / IC35L036UCDY10-0 SCSI Hard Drive 36GB 10K U320 80pin SCA-2 – New Pull
Advanced drive technology
Introducing the sixth generation of Ultrastar 10,000 rpm disk drives. The Hitachi Ultrastar 146Z10 drive family offers high quality and superior performance. These drives feature more powerful processors and read/write channels to excel in server-class environments. To achieve maximum I/O performance, the drives combine fast seek times, large 8 MB multi-segmented buffers, a sophisticated command queuing algorithm, hardware automation, and superior data rates (825 Mbps). Ultrastar 146Z10 drives include new servo technology (Rotational Vibration Safeguard ”RVS”), employed to counteract the effects of rotational vibration that commonly occur in multi-drive cabinets. They also employ fifth-generation giant magnetoresistive (GMR) head technology to double areal density from previous generation drives (26.3 Gbits/sq. in.) and boost performance. In addition, highly efficient No-ID* sector formatting enables more data to be stored per disk.
Model : IC35L036UCDY10-0
DP/N: X5454
| Weight | 0.780 kg |
|---|
| Model number | 08K0312 / IC35L036UCDY10-0 |
| Model Name | 146Z10 |
| Formatted Capacity | 36.7 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| Performance | |
|---|---|
| External (I/O) Transfer Rate (max) | 320 MBytes/sec |
| Average Seek Time | 4.7 |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146 mm |
| Weight | 0.780 kg |
