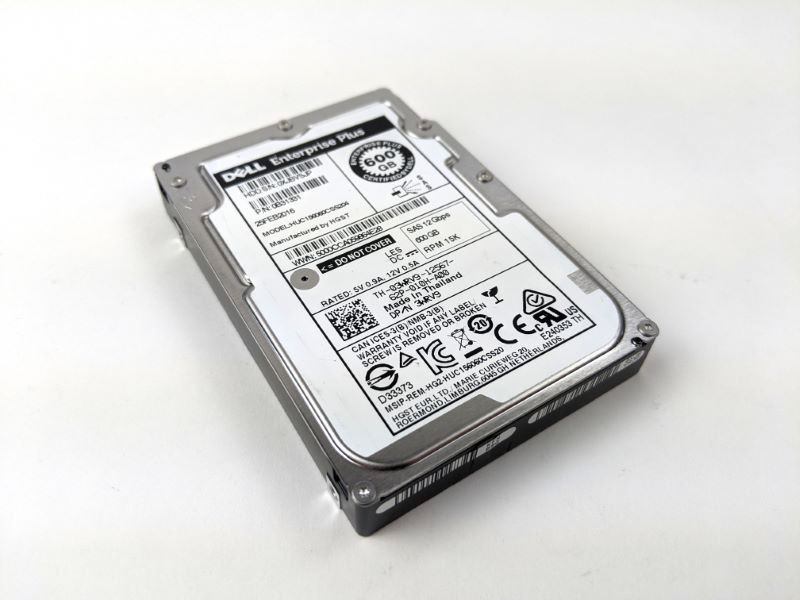

Hitachi 0B31331/ HUC156060CSS204Ā 600GB 2.5 inchĀ 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD – Refurbished
Hitachi 0B31331/ HUC156060CSS204Ā 600GB 2.5″ 12.0 Gbps 15,000 RPM Ultrastar C15K600 Enterprise Serial Attached SCSI Hard Disk Drive
Hitachi 0B31331/ HUC156060CSS204Ā 600GB 2.5 inchĀ 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD – Refurbished
Hitachi 0B31331/ HUC156060CSS204Ā 600GB 2.5″ 12.0 Gbps 15,000 RPM Ultrastar C15K600 Enterprise Serial Attached SCSI Hard Disk Drive
Weight | 0.219 kg |
---|
Ultrastar C15K600 | ||
---|---|---|
Model Number | 0B31331 | |
Alt Model Number | HUC156060CSS204 | |
Configuration | ||
Interface | SAS 12Gb/s | |
Capacity (GB) | 600GB | |
Sector size (variable, bytes/sector) | 512-Byte (512n) | |
Recording zones | 40 | |
Data heads (physical) | 6 | |
Data disks | 3 | |
Max. Areal density (Gbits/sq. in) | 528 | |
Performance | ||
Data buffer (MB) | 128 | |
Rotational speed (RPM) | 15,030 | |
Latency average (ms) | <2.0 | |
Interface transfer rate (MB/s, max) | 1200 | |
Sustained transfer rate (MB/s, typical) | 175 to 250 | |
Seek time (read, ms, typical) | 2.9/3.1 | |
Reliability | ||
Error rate (non-recoverable, bits read) | 10 in 10e17 | |
MTBF (M hours) | 2.0 | |
Availability (hrs/day x day/wk) | 24×7 | |
Acoustics | ||
Idle (Bels, typical) | 3.2 | |
Power | ||
Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) | |
Operating (W, typical) | 7.5 | |
Idle (W) | 5.8 | |
Idle efficiency (Watt/GB) | 0.0096 | |
Physical size | ||
z-height (mm) | 14.8 | |
Dimensions (width x depth, mm) | 70.1 x 100.45 | |
Weight (, max) | 219 | |
Environmental (operating) | ||
Ambient temperature | 5° to 55° C | |
Shock (half-sine wave, 2ms, read operation) | 60G | |
Vibration, random, no errors (G RMS 5 to 500 Hz) | 0.4, all axes | |
Environmental (non-operating) | ||
Ambient temperature | -40° to 70° C | |
Shock (half-sine wave, 2ms) | >300G | |
Vibration (RMS 5 to 500 Hz) | 1.5, all axes |
