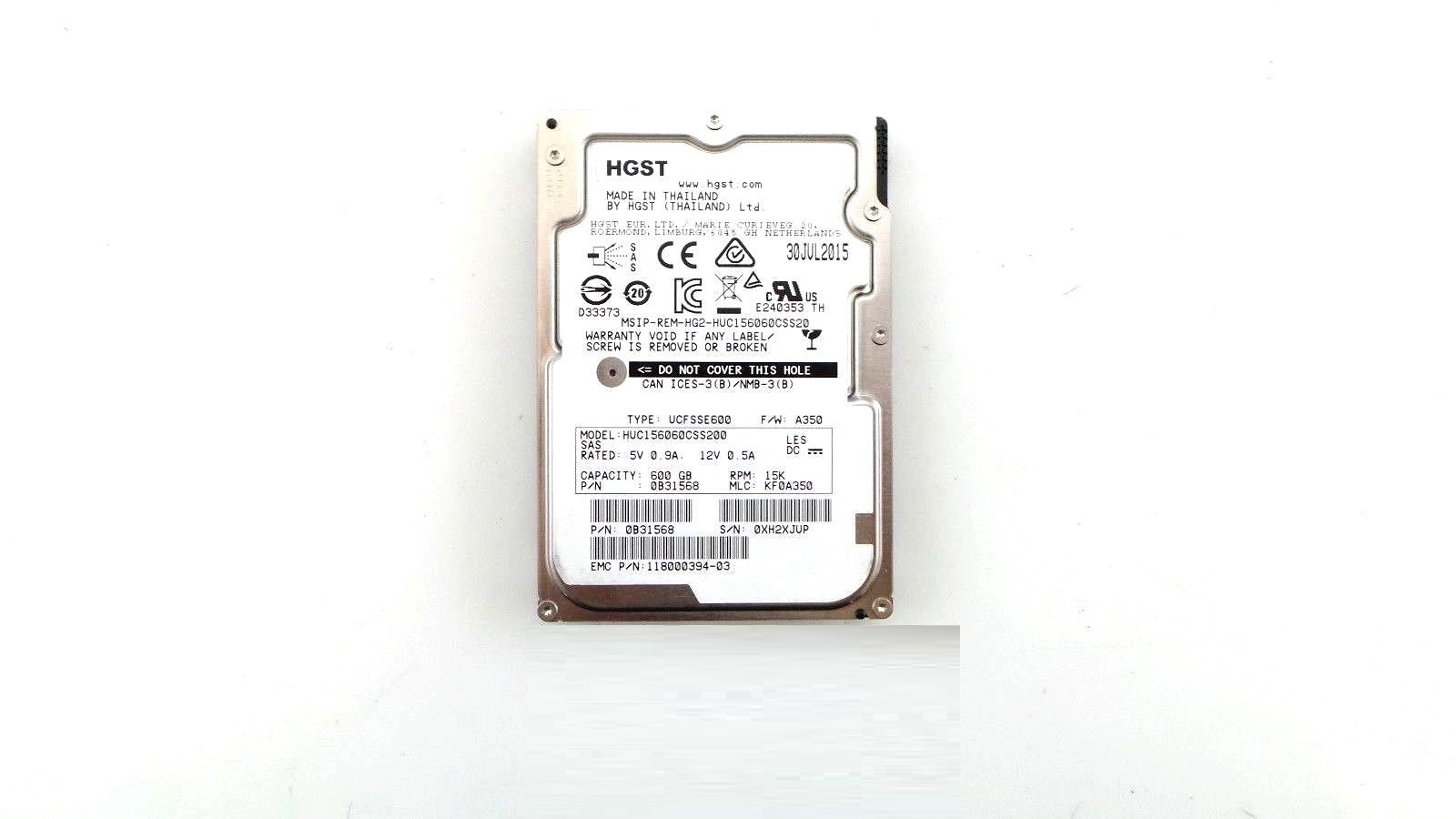

Hitachi / EMC 0B31568 600GB 12Gb/S SAS Hard Drive

1,299.00 د.إ

Hitachi 0B31568 / HUC156060CSS200 / 118000394-02 600GB 2.5″ 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD – New Pull EMC OEM

Weight	0.219 kg

Ultrastar C15K600
Model Number	0B31568
Alt Model Number	HUC156060CSS200
Configuration
Interface	SAS 12Gb/s
Capacity (GB)	600GB
Sector size (variable, bytes/sector)	512-Byte (512n)
Recording zones	40
Data heads (physical)	6
Data disks	3
Max. Areal density (Gbits/sq. in)	528
Performance
Data buffer (MB)	128
Rotational speed (RPM)	15,030
Latency average (ms)	<2.0
Interface transfer rate (MB/s, max)	1200
Sustained transfer rate (MB/s, typical)	175 to 250
Seek time (read, ms, typical)	2.9/3.1
Reliability
Error rate (non-recoverable, bits read)	10 in 10e17
MTBF (M hours)	2.0
Availability (hrs/day x day/wk)	24×7
Acoustics
Idle (Bels, typical)	3.2
Power
Requirement	+5 VDC (+/-5%), +12 VDC (+/-5%)
Operating (W, typical)	7.5
Idle (W)	5.8
Idle efficiency (Watt/GB)	0.0096
Physical size
z-height (mm)	14.8
Dimensions (width x depth, mm)	70.1 x 100.45
Weight (, max)	219
Environmental (operating)
Ambient temperature	5° to 55° C
Shock (half-sine wave, 2ms, read operation)	60G
Vibration, random, no errors (G RMS 5 to 500 Hz)	0.4, all axes
Environmental (non-operating)
Ambient temperature	-40° to 70° C
Shock (half-sine wave, 2ms)	>300G
Vibration (RMS 5 to 500 Hz)	1.5, all axes
