Hitachi Ultrastar 08K0392 SCSI Hard Drives

Add to Wishlist

399.00 د.إ

Add to Wishlist

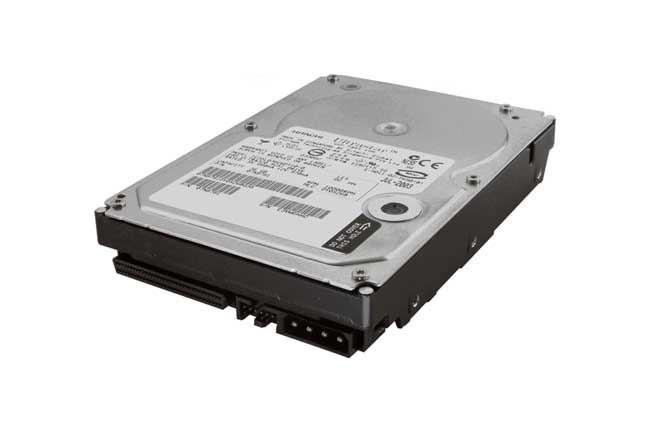

Hitachi Ultrastar 08K0392 / IC35L018UCDY10 146Z10 18GB 10K U320 80pin SCA-2 SCSI Hard Drive – Factory Refurbished

The new Hitachi Ultrastar 146Z10 offers capacities of 146.8 GB, 73.4 GB, 36.7 GB, and 18.35 GB in Ultra 160 and 320 SCSI models. The high reliability and excellent performance of the Hitachi Ultrastar 146Z10 are the result of the implementation of a number of advanced disk drive technologies, including giant magnetoresistive head technology, No-ID sector formatting, Predictive Failure Analysis, and ECC on the fly correction.

Alt. PN: IC35L018UCDY10 3N325

SKU: 08K0392 Category: Tags: , ,
Configuration
Interface Ultra320 / Ultra160 SCSI FC-AL-2
Capacity (GB)1 146.8/73.4/36.7/18.3 146.8/73.4/36.7/18.3
Sector size (bytes) 512-528 (variable, 2 byte inc.) 512-528 (8 byte inc)
Recording zones 15 15
Data heads (physical) 12/6/3/2 12/6/3/2
Data disks 6/3/2/1 6/3/2/1
Max. areal density (Mbits/sq. inch) 26,263 3126,263
Max. recording density (BPI) 548,000 548,000
Track density (TPI) 47,900 47,900
Performance
Data Buffer 8192 KB 8192 KB
Rotational speed (rpm) 10,000 10,000
Latency average (ms) 3.00 3.00
Data transfer rate (max. Mbits/sec) 433 – 825 433 – 825
Interface transfer rate (max. MB/sec) 320 200/400
Sustained data rate (MB/sec) 33.8 – 66.7 33.8 – 66.7
Seek time (read, typical)2
Average (ms) 4.7 4.7
Track to track (ms) 0.5 0.5
Full track (ms) 7.2/8.0 7.2/8.0
Reliability
Error rate (non-recoverable) 10 in 10E16 bits read 10 in 10E16 bits read
Start/stops (at 40° C) 50K 50K
Acoustic
Idle – Typical (Bels) 3.7/3.4/3.4/3.4 3.7/3.4/3.4/3.4
Operating – Typical (Bels) 4.5/4.5/4.5/4.5 4.5/4.5/4.5/4.5
Power
Requirement +5VDC (+-5%), +12 VDC (+-5%) +5VDC (+-5%), +12 VDC (+-5%)
Dissipation
Startup current (max. peak) 1.07A (5V), 2.40A (12V) 1.12A (5V), 2.40A (12V)
Idle (W) 10.2/7.7/7.0/5.9 11.1/8.6/7.9/6.8
Power consumption efficiency index 0.07 W/GB , 0.11 W/GB 0.08 W/GB , 0.12 W/GB
0.19 W/GB , 0.33 W/GB 0.22 W/GB , 0.38 W/GB
Dimensions
Height (mm) 25.4 (+-0.4) 25.425.4 (+-0.4)
Width (mm) 101.6 (+-0.4) 101.6 (+-0.4)
Depth (mm) 146 (+-0.6) 146 (+-0.6)
Weight (max. kg) 0.78 0.78
Environmental characteristics
Operating
Ambient temperature 5° to 55° C
Relative humidity (non-condensing) 8% to 90%
Max. wet bulb (non-condensing) 29.4° C
Shock (half sine wave) 10G (11 ms) / 45G (2 ms)
Random Vibration (RMS) 0.67G for horizontal
0.56G for vertical
Non-operating
Ambient temperature -40° to 65° C
Relative humidity (non-condensing) 5% to 95%
Max. wet bulb (non-condensing 35° C
Shock (half sine wave) 75G (11 ms) / 225G (2 ms) for 146GB / 300G (2 ms) for 73, 36, and 18GB
Random Vibration (RMS) 1.04G
