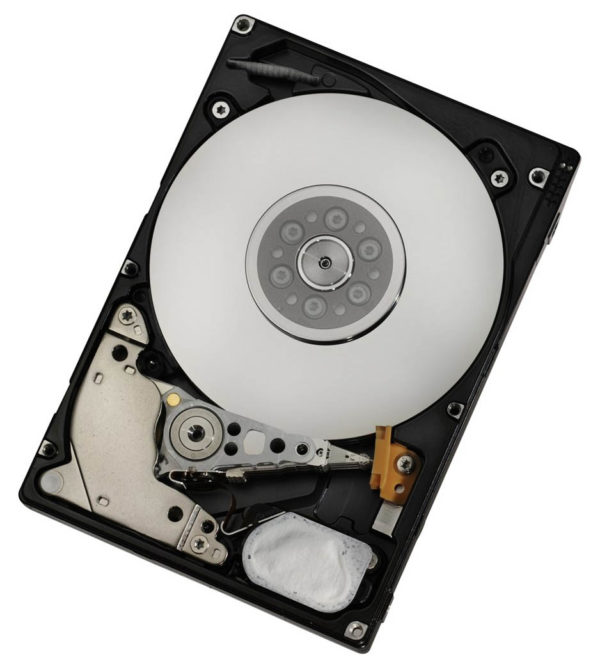

Hitachi Ultrastar 0B26013 / HUC109060CSS600 600GB 10K 6Gbps 2.5″ SFF SAS / Serial Attached SCSI Hard Drive – Refurbished OEM
HGST Quality and Service
HGST’s Ultrastar C10K900 extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data.
HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a breadth of hard disk drive solutions to satisfy all of today’s demanding computing needs.
DPNs : TCGGM 0TCGGM
| Weight | 0.204 kg |
|---|
| Specifications | |
|---|---|
| Configuration | |
| Model Number | 0B26013 / HUC109060CSS600 |
| Model Name | Ultrastar C10K900 |
| Interface | SAS 6Gb/s |
| Capacity (GB) | 600 |
| Recording zones | 40 |
| Data heads (physical) | 4 |
| Data disks | 2 |
| Max. areal density (Gbits/sq. in.) | 494 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 10,000 |
| Latency average (ms) | <3.0 |
| Media transfer rate (Mbits/s, max) | 2105 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 198 – 117 |
| Seek time (read, ms, typical) | 3.8 / 4.2 |
| Power | |
| Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) |
| Operating, (W, typical) | 5.8 |
| Low power idle (W) | 3.0 |
| Power consump. efficiency index (W/GB) | 0.0058 |
| Physical Size | |
| z-height (mm) | 14.8 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (g, max) | 204 |
| Environment (operating) | |
| Ambient temperature | 5o to 55o C |
| Shock (half-sine wave 2ms, G) | 60 |
| Environment (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave, 2ms, G) | >300 |
| Vibration, random (G RMS, 5 to 500 Hz) | 1.5, all axes |
