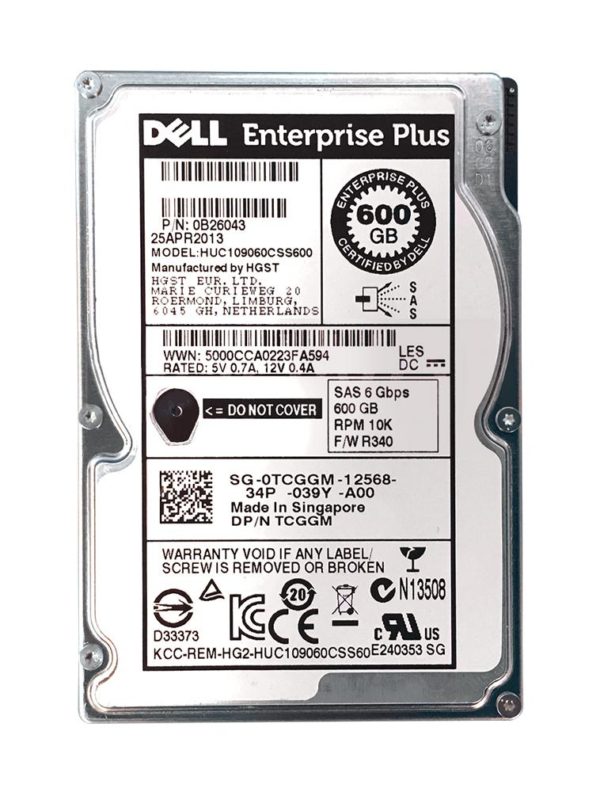

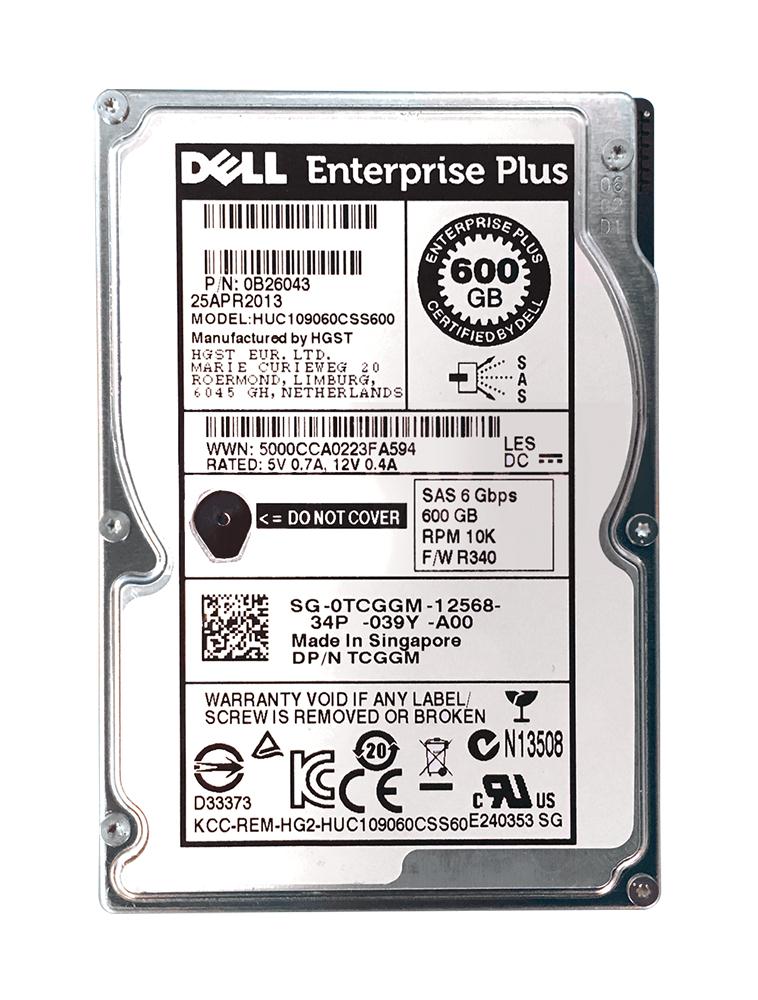

Dell Equallogic HGST 0B26043 / HUC109060CSS600 / TCGGM 600GB 10K RPM 6Gbps 2.5″ SFF Dell Enterprise Plus SAS Hard Drive – Refurbished OEM
Hitachi PN: 0B26043
Hitachi Model Number: HUC109060CSS600
Dell Enterprise Plus PNs : TCGGM, 0TCGGM
for use in Dell Equallogic Arrays.
Ultrastar™ C10K900 is a 2.5-inch 10,000 RPM hard drive that leads the industry with 18% faster sequential and up to 17% random performance than the nearest competitor. The high performance SAS 6Gb/s interface delivers data reliability, availability and scalability and is the only small form factor SAS drive in the industry to pack a 64MB cache buffer for optimized read/write response time.
| Weight | 0.204 kg |
|---|
| Specifications | |
|---|---|
| Model Number | HUC109060CSS600 |
| Configuration | |
| Interface | SAS 6Gb/s |
| Capacity (GB) | 600 |
| Recording zones | 40 |
| Data heads (physical) | 4 |
| Data disks | 2 |
| Max. areal density (Gbits/sq. in.) | 494 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 10,000 |
| Latency average (ms) | <3.0 |
| Media transfer rate (Mbits/s, max) | 2105 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 198 – 117 |
| Seek time (read, ms, typical) | 3.8 / 4.2 |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 1016 |
| MTBF (M hours) | 2.0 |
| Availability (hrs/day x days/wk) | 24×7 |
| Acoustics | |
| Idle (Bels) | 2.9 |
| Power | |
| Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) |
| Operating, (W, typical) | 5.8 |
| Low power idle (W) | 3.0 |
| Power consump. efficiency index (W/GB) | 0.0058 |
| Physical size | |
| z-height (mm) | 14.8 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (g, max) | 204 |
| Environmental (operating) | |
| Ambient temperature | 5o to 55o C |
| Shock (half-sine wave 2ms, G) | 60 |
| Environmental (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave, 2ms, G) | >300 |
| Vibration, random (G RMS, 5 to 500 Hz) | 1.5, all axes |
