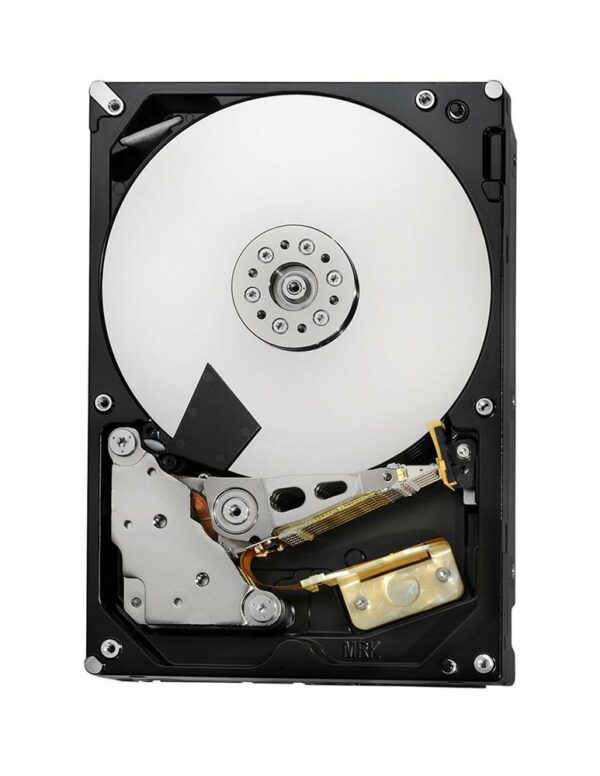

Hitachi Ultrastar 0F18754 1TB 3.5″ SATA Hard Drive


1,199.00 د.إ

Hitachi 0F18754 / HUA722010CLA330 1TB 3.5″ 3Gbps 7.2K RPM Ultrastar A7K2000 Enterprise SATA HDD for Equallogic – Refurbished

Hitachi 0F18754 / HUA722010CLA330 1TB 3.5″ 3Gbps 7.2K RPM Ultrastar A7K2000 Enterprise SATA HDD for Equallogic – Refurbished

Alt MPN: HUA722010CLA330 / 47F61 / 047F61

UltrastarĀ® A7K2000 3.5-Inch Enterprise 7200 RPM Hard Disk Drives for Equallogic Systems

Combining 7200 RPM Performance And Granular Power Control – Operating at 7200 RPM,the HGST UltrastarĀ® A7K2000 offers better overall performance than slower-RPM, capacity-oriented drives at impressively low power-consumption rates. When compared to the previous generation Ultrastar A7K1000,the A7K2000 offers up to a 155% improvement in sustained data transfer rate. With five Advanced Power Management modes, a 36% reduction in watts during low-RPM idle mode, and using less than 1W during standby/sleep mode,the Ultrastar A7K2000 can help data centers achieve lower AC power and HVAC requirements,freeing up precious headroom for growing enterprise needs.

Delivering Industry-Leading Reliability – With a robust fourth-generation mechanical design, Ultrastar A7K2000 is specifically built and tested for the enterprise. The Ultrastar SATA drive family features HGST-patented Rotational Vibration Safeguard (RVS) sensor technology, which optimizes drive reliability in multi-drive RAID arrays and rack-mounted systems. Backed by a five-year warranty,the Ultrastar platform has earned HGST a reputation among server and storage vendors as a global partner dedicated to delivering the highest quality and reliability in the industry.

Innovation for a more sustainable environment – The Ultrastar A7K2000 demonstrates HGST ecological leadership with its halogen-free design and power-efficient operation. Both these features serve to qualify the drive for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.

Highlights

  • Up to 1 terabyte1 of capacity
  • Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
  • 24×7 enterprise-class duty cycle
  • Targeted 1.2 million hours MTBF2
  • 3Gb/s SATA for configuration flexibility

Applications/Environments

  • Cloud storage
  • Massive Scale Out (MSO)
  • Data warehousing & mining Disk-to-disk backup & archiving
  • RAID arrays
  • Network Attached Storage (NAS)
Weight 1.499 kg
SPECIFICATIONS
Model number 0F18754
Alt Model Number HUA722010CLA330
CONFIGURATION
Interface SATA 3Gb/s
Capacity (GB) at 512 bytes/sector 1TB/1000GB
Sector size (bytes) 512
Max. areal density (Gbits/sq. in) 352
PERFORMANCE
Data buffer (MB) 32
Rotational speed (RPM) 7,200
Interface transfer rate (MB/s, max) 300
Sustained transfer rate (MB/s, typical) 134
Seek time (read, ms, typical) 8.5
RELIABILITY
Error rate (non-recoverable, bits read) 1 in 10e15
Load/unload cycles (at 40° C) 300,000
Availbility (hr/day x days/wk) 24×7
MTBF (M hours) 1,200,000
ACOUSTICS
Idle (Bells, typical) 2.4
POWER
Requirement +5 VDC (+/-5%)
+12 VDC (+10%/-8%)
Startup current (A, max) 2.0 (+12V)
1.2 (+5V)
Read/write (W) 8.4
Unload idle(W) 3.9
Power consump. efficiency index (W/GB) 0.0039/0.0078
PHYSICAL SIZE
z-height (mm/in) 26.10/1.0276
Width (mm/in) 101.85/4.0098
Depth (mm/in) 147.00/5.7874
Weight (lb/g, max) 1.4991/680
ENVIRONMENTAL (OPERATING)
Ambient temperature 5° to 60° C
Shock (half-sine wave, 1ms, G) 70
Vibration (G RMS, 5 to 500 Hz) 0.67 (XYZ)
ENVIRONMENTAL (NON-OPERATING)
Ambient temperature -40° to 70° C
Shock (half-sine wave, 1ms. G) 350
Vibration (G RMS, 5 to 500 Hz) 1.04 (XYZ)
