The HPE 1Gb Ethernet Pass-Thru Module is designed for those customers desiring an unmanaged direct connection between each server blade within the enclosure and an external network device such as a switch, router or hub. Ideal for datacenters with existing network infrastructure, the HPE 1Gb Ethernet Pass-Thru Module delivers sixteen internal 1Gb downlinks and sixteen external 1Gb RJ-45 copper uplinks, providing a 1: 1 non-switched, non-blocking path between the server and the network. Designed to fit into a single I/O bay, the Ethernet Pass-Thru Module should be installed in pairs to provide redundant uplink paths to your network.
Network Adapters

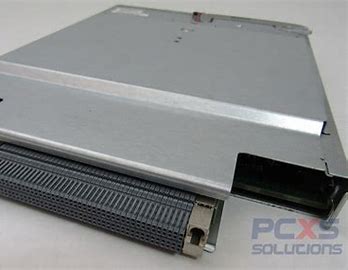

HP 1Gb Ethernet Pass-Thru Module – expansion module – Gigabit Ethernet x 16
HP 1Gb Ethernet Pass-Thru Module – Expansion module – Gigabit Ethernet x 16 – remarketed
4,099.00 د.إ
General |
Device Type | Expansion module |
Form Factor | Plug-in module |
Networking |
Ports | Gigabit Ethernet x 16 |
Connectivity Technology | Wired |
Cabling Type | Ethernet 1000Base-TX |
Data Link Protocol | Gigabit Ethernet |
Data Transfer Rate | 1 Gbps |
Features | Full duplex mode |
Expansion / Connectivity |
Interfaces | 16 x 1000Base-TX – RJ-45 |
Compatible Slots | 1 x expansion slot |
Connections | 16 x network – Ethernet 1000Base-TX – RJ-45 |
Miscellaneous | Compliant Standards |
FCC Class A certified, VCCI Class A ITE, AS/NZ 3548 Class A, ICES-003 Class A |
Pricing Type | Remarketed |
Dimensions & Weight | Width |
36.5 in |
Depth | 11 in |
Height | 10.6 in |
Environmental Parameters | Min Operating Temperature |
50 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 5 – 95% |
