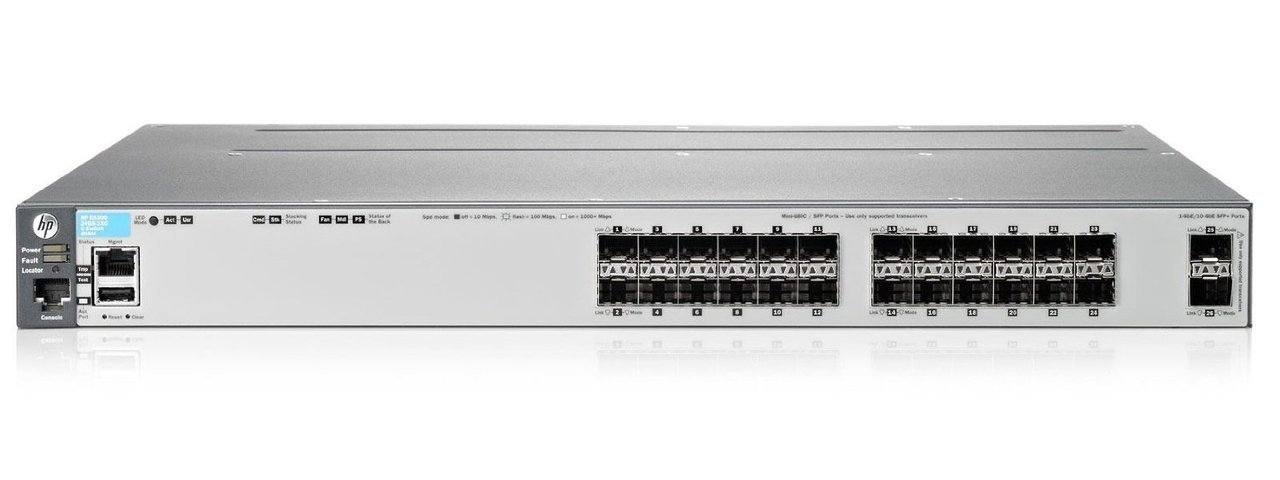

HP 3800-24SFP-2SFP+ Switch – switch – 24 ports – managed – rack-mountable

• Performance, Resiliency and SDN Ready for the Campus Edge

  • The HP 3800 Switch Series provides performance, resiliency and flexibility, and ease of use for enterprise edge, and SMB and branch office deployments.
  • Full Layer 3 switch series for flexible deployment with 24 or 48 Gigabit Ethernet ports plus convenient built-in 10GbE uplinks (10GBASE-T or SFP+), PoE+, Energy Efficient Ethernet, and hot swappable redundant power supplies.
  • Mesh stacking technology delivers modular chassis-like resiliency in stackable1U form factor with optional stacking modules.
  • License free software with advanced Layer 2 and 3 feature set including IPv4 BGP, policy based routing, and IPv4/IPv6 OSPF and robust QoS.
  • Software-defined Network (SDN) ready with OpenFlow 1.3 support for future proofing your network.
• Mesh Stacking and Power at the Edge

  • The HP 3800 Switch Series uses a powerful HP Networking ASIC providing very low latency, increased packet buffering, and adaptive power consumption.The HP 3800 Switch Series uses a powerful HP Networking ASIC providing very low latency, increased packet buffering, and adaptive power consumption.
  • Meshed stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency.
  • Up to ten 3800 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology.
  • Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.
•

  Resiliency and High Availability

  • The HP 3800 Switch Series supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
  • Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
  • Dual hot-swappable power supplies provide uninterrupted power and allow swapping of modules on the fly to reduce impact on the network availability. Provides up to 1080W PoE+ power.
•

  Robust Security and Quality of Service

  • The HP 3800 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
  • Flexible authentication options include Local MAC Authentication, 802.1X, MAC and Web Authentication modes, delivering greater security and policy-driven application authentication.
  • Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities.
  • Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH to increase security and control change management access.
  • The HP 3800 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
•

  Performance

  • Selectable queue configurations: allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
  • Energy-efficient design: High-efficiency power supplies: 80 PLUS Gold-certified power supplies increase power savings. Energy-efficient Ethernet support: IEEE 802.3az support reduces power consumption.
  • Meshed stacking technology: High-performance stacking: provides up to 336 Gb/s of stacking throughput; each 4-port stacking module can support up to 42 Gb/s in each direction per stacking port. Ring, chain, and mesh topologies: support up to a 10-member ring or chain and 5-member fully meshed stacks; meshed topologies offer increased resiliency vs. a standard ring. Virtualized switching: when stacked, switches appear as a single chassis, providing simplified management.
  • HP ProVision ASIC architecture: designed with the latest HP ProVision ASIC, with very low latency, increased packet buffering, and adaptive power consumption
•

  Resiliency and high availability

  • Nonstop switching and routing: improves network availability to better support critical applications such as unified communication and mobility; traffic will continue to be forwarded during failover when the backup member of the stack becomes the commander
  • IEEE 802.3ad Link Aggregation Protocol (LACP) and HP port trunking: support up to 24 trunks, each with up to 8 links (ports) per trunk
  • IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
  • Virtual Router Redundancy Protocol (VRRP): allows groups of two routers to dynamically back each other up to create highly available routed environments
  • Dual hot-swappable power supplies: Increased resiliency: second power supply can allow for complete switch power redundancy in case of power line or supply failure. Increased PoE+ power: second power supply can increase total available PoE+ power.
•

  Layer 2 switching

  • GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
  • IEEE 802.1ad QinQ: increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network
  • VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
  • IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs
  • MAC-based VLAN: provides granular control and security; uses RADIUS to map a MAC address/user to specific VLANs

• Capacity
  	Type:		Routing table entries
  	Value:		10000
  	Dimensions & Weight
  	Depth:		18.4 in
  	Height:		1.7 in
  	Weight:		16.1 lbs
  	Width:		17.4 in
  	Environmental Parameters
  	Humidity Range Operating:		15 – 95% (non-condensing)
  	Humidity Range Storage:		15 – 90% (non-condensing)
  	Max Operating Temperature:		113 °F
  	Max Storage Temperature:		158 °F
  	Min Operating Temperature:		32 °F
  	Min Storage Temperature:		-40 °F
  	Flash Memory
  	Installed Size:		4 GB
  	Header
  	Brand:		HP
  	Compatibility:		PC
  	Country Kits:		United States
  	Localization:		English
  	Manufacturer:		ProCurve Networking
  	Model:		3800-24SFP-2SFP+ Switch
  	Packaged Quantity:		1
  	Product Line:		HP
  	Interface Provided
  	Connector Type:		SFP (mini-GBIC)
  	Interface:		Ethernet 100Base-TX/1000Base-T
  	Qty:		24
  	Connector Type:		SFP+
  	Interface:		10Gb Ethernet
  	Qty:		2
  	Comments:		Management
  	Connector Type:		RJ-45
  	Qty:		1
  	Type:		Console
  	Connector Type:		RJ-45
  	Miscellaneous
  	Authentication Method:		RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2) , TACACS+
  	Compliant Standards:		CISPR 24 , CSA 22.2 No. 60950 , EN 60825 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , FCC Class A certified , IEC 60950-1 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , RoHS , UL 60950 , VCCI Class A ITE
  	Encryption Algorithm:		SSL
  	Height (Rack Units):		1
  	Rack Mounting Kit:		Included
  	Networking
  	Advanced Switching:		Layer 4
  	Compliant Standards:		IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1v , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3an , IEEE 802.3u , IEEE 802.3x
  	Features:		Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , BOOTP support , DHCP support , DiffServ support , Fan tray , Flow control , IGMP snooping , IPv6 support , Layer 2 switching , MAC address lockout , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , sFlow , STP Root Guard , Uni-Directional Link Detection (UDLD) , Virtual Route Redundancy Protocol (VRRP) support , VLAN support
  	Form Factor:		Rack-mountable
  	Jumbo Frame Support:		Yes
  	MAC Address Table Size:		65500 entries
  	Manageable:		Yes
  	Ports Qty:		24
  	Remote Management Protocol:		CLI , HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet
  	Routing Protocol:		IGMP , MLD , MLDv2 , OSPF , OSPFv2 , OSPFv3 , PIM-DM , PIM-SM , RIP-1 , RIP-2 , Static IP routing , VRRP
  	Subcategory:		Network hubs and switches
  	Subtype:		Gigabit Ethernet
  	Type:		Switch
  	Performance
  	Type:		Throughput
  	Value:		65.4 Mpps
  	Type:		Switching capacity
  	Value:		88 Gbps
  	Ports
  	Qty:		24
  	Type:		Gigabit SFP
  	Ports (2nd)
  	Qty:		2
  	Type:		10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  	Power Device
  	Frequency Required:		50/60 Hz
  	Hot-Plug:		Hot-plug
  	Installed Qty:		1
  	Max Supported Qty:		2
  	Nominal Voltage:		AC 120/230 V
  	Power Redundancy:		Optional
  	Power Redundancy Scheme:		1+1 (with optional power supply)
  	Type:		Internal power supply
  	Processor
  	Installed Qty:		2
  	RAM
  	Installed Size:		2 GB
  	Technology:		SDRAM
  	Service
  	Support Details Full Contract Period:		Lifetime
  	Support Details Service Included:		Advance parts replacement
  	Support Details Type:		Limited warranty
  	Service & Support
  	Type:		Limited lifetime warranty
  	Service & Support Details
  	Response Time:		Next business day
  	Slot Provided
  	Free Qty:		1
  	Total Qty:		1
  	Type:		Stacking Module slot
