HP 445966-002 146GB 10K SAS SFF HDD


299.00 د.إ

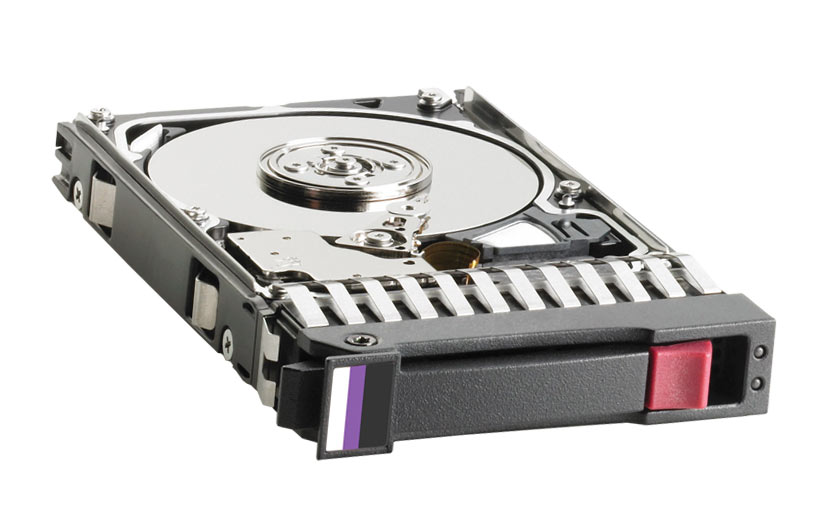

HP 445966-002 146GB 10K SAS SFF Hard Disk Drive

HP’s latest generation 10K RPM 2.5 inch (SFF) Enterprise Hard Disk Drives (MBB Series) continue to represent a leading edge design with best of class performance and reliability. With 73 and 147GB capacity points this technology becomes even more useable and advantageous in applications previously dominated by 3.5 inch.

Offering a Serial Attached SCSI (SAS) interface and a 16MB buffer, performance is certainly not compromised by the physical size (70% smaller than it’s bigger brother).

With design advantages ranging from lower power consumption (up to 50% reduction over conventional 3.5″), a smaller form factor that reduces system cooling requirements, low acoustics, redundant data paths and an interface design featuring scalability, hot plugability, simplified cabling (less conductors,less space,more air flow)and a common infrastructure which supports SATA . Leveraged from high maturity technology from it’s proven 3.5-inch big brother, the MBB continues to lead the way in HDD design. Ideal for high-end, mission critical applications residing on database servers, storage arrays, and NAS and SAN systems.

SKU: 445966-002 Category: Tags: , ,
Weight 0.22 kg
FUNCTIONAL SPECIFICATIONS
Formatted storage capacity 147.0Ā GB
Seek time (track to track) Read 0.2 / Write 0.4Ā ms. typ.
Seek time (average) 4.0/4.5Ā ms. typ. (read/write)
Seek time (full track) 8.0/9.0Ā ms. typ. (read/write)
Average latency time 2.99Ā ms.
Rotational speed 10,025Ā RPM
Interface SAS (3Gbps)Ā
Data Buffer Size 16Ā MB
Recording code 60/62Ā MEEPRMLĀ
Head positioning method ROTARY VCMĀ
Spindle start time 15Ā seconds typical
Spindle stop time 15Ā seconds typical
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready) 4.7Ā W typ.
Form Factor 2.5-inch x 15mm highĀ
Mounting screws #4 x M3Ā
Height 15.0Ā mm
Width 69.85Ā mm
Depth 100.45Ā mm
Weight 0.22Ā kg
Ambient temperature (operating) 5 to 55Ā degrees C
Ambient temperature (non-operating) -40 to 70Ā degrees C
Maximum DE surface temperature (operating) 55 maxĀ deg. C
Gradient 15Ā degrees C per hour
Relative humidity (operating) 5 to 95Ā % RH (non-condensing)
Relative humidity (non-operating) 5 to 95Ā % RH (non-condensing)
Maximum wet bulb 29Ā degrees C (non-condensing)
Vibration (operating) 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)Ā
Vibration (non-operating) 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)Ā
Shock (operating) 100G Max (1ms)Ā
Shock (non-operating) 400G Max (1ms)Ā
Altitude (operating) 3,000Ā metres
Altitude (non-operating) 12,000Ā metres
Acoustic noise (at 1 metre idle) >/=2.9 (ready)Ā bels
RELIABILITY
MTBF (Mean Time Between Failures) 1,400,000Ā power on hours
Component life (years)
Design life used to calculate MTBF. NOT Warranty
5Ā years
Unrecoverable errors 1 per 10^15Ā bits read
Seek errors 10 per 10^8Ā seeks
