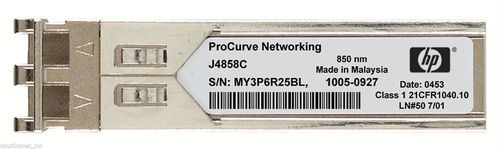

A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550 m on multimode fiber.
- 1 LC 1000Base-SX port, Duplex: full only
- Connectivity: Media 62.5/125 Multi-mode Fiber/50/125 multi-mode Fiber
- Data Transfer Rate: 1 Gbps Gigabit Ethernet Full-duplex
Ports
- 1 LC 1000Base-SX port (IEEE 802.3z Type 1000Base-SX)
Duplex: full only.
Physical characteristics
- Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
- Weight: 0.04 lb. (0.02 kg).
Cabling Type:
- 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively.
Maximum distance:
- 2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth)
- 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth)
- 2-500 m (50 µm core diameter, 400 MHz*km bandwidth)
- 2-550 m (50 µm core diameter, 500 MHz*km bandwidth)
Standard warranty: 1 year
