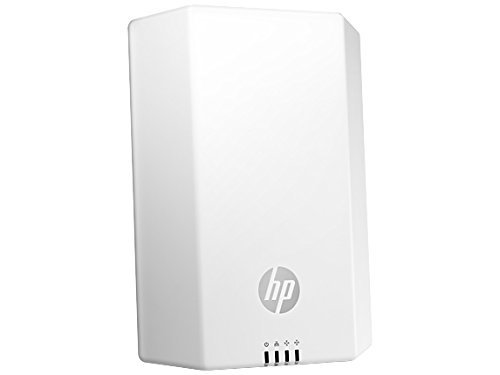

HP JL063A – M330 DUAL RADIO 802.11AC (WW) Access Point

The HPE M330 Dual Radio 802.11ac Access Point Series (AP) delivers high-performance wireless networking for small businesses. They support standalone operations or “clustering” of up to 16 APs.

These 3×3:3 MIMO technology devices offer simultaneous 1.3 Gbps IEEE 802.11ac performance and up to 450 Mbps IEEE 802.11n to support increasing device density and bandwidth-intensive applications such as video. Clustering technology simplifies administration and advanced features such as business-class security and uninterrupted wireless client roaming provide a better user experience.

Features

Delivers a Better User Experience and Improved Performance

HPE M330 Dual Radio 802.11ac Access Point Series offer small businesses simultaneous 1.3 Gbps IEEE 802.11ac performance and up to 450 Mbps IEEE 802.11n support and increased range to 802.11 clients for a better user experience in dense client environments.

Improves coverage and user capacity with 3×3 multiple-input multiple-output (MIMO) technology with 3 spatial streams on each radio so wireless clients connect at increased performance.

When clustered, each HPE M330 Access Point automatically selects the best channel per radio for operation, reducing AP channel planning while periodically reassessing AP channel mapping for channel optimization.

Simplifies Wireless Networks for Small Businesses

The HPE M330 Dual Radio 802.11ac Access Point Series includes simple clustering technology which reduces complexity and the need for additional hardware. It simplifies administration by seamlessly coordinating common configuration settings among all access points on the wireless LAN.

A quick setup wizard gets you up and running rapidly with five common deployment scenarios to best match your environment.

Keeps Your Business up and Running with Safe Wireless Access

The HPE M330 Dual Radio 802.11ac Access Point Series significantly reduces the risk of downtime from human error with clustering technology.

Keeps your wireless network traffic safe with the latest in Wi-Fi security including WPA and WPA2.

Delivers data privacy of the wireless traffic with Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP).

The HPE M330 Dual Radio 802.11ac Access Point Series offers up to eight VLANs permit traffic segmentation on the network.

Lowers Total Cost of Ownership (TCO)

The HPE M330 Dual Radio 802.11ac Access Point Series is covered by a Limited Lifetime Warranty.

Clustering technology makes ongoing network changes and maintenance simple, reducing the time spent on administrative tasks.

Specifications

Differentiator

• Dual-radio 802.11ac access point offers simultaneous 1.3 Gbps IEEE 802.11ac performance, up to 450 Mbps IEEE 802.11n support, and increased range to 802.11 clients
• For use in worldwide markets.

Ports

• (1) RJ-45 autosensing 10/100/1000 port

Mounting

• Indoor wall and ceiling mounting with included accessory.

Radio

• 802.11a/b/g/n/ac

Antenna

• Internal 2.4 and 5 GHz MIMO omni-directional antennas
• (6) internal antennas

Connectivity, standard

• IEEE 802.11 a/b/g/n/ac

Dimensions and weight

Minimum dimensions (W x D x H)

15.57 x 4.01 x 20.88 cm

Weight

1.23 kg

What’s included

What’s in the box

• (1) HPE M330 Dual Radio 802.11ac (WW) Access Point, Getting Started Guide, wall and ceiling mount accessory and country specific power adapter.
