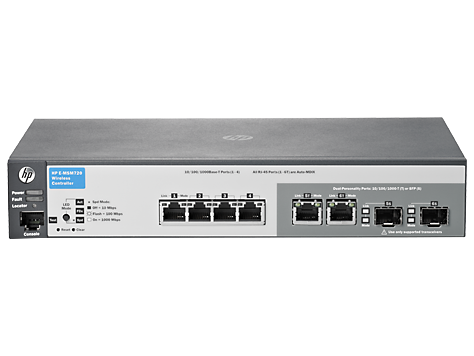

HP MSM720 Premium Mobility Controller (WW)(J9694A)

The 802.11ac-ready HP MSM Controller Series works in unison with the HP 425 and MSM 802.11n access points to deliver a cost effective high-performance networking solution for the mid-size enterprise campus. The enhanced architecture supports next generation standards, RF optimization and flexible distribution models for unparalleled performance, reliability and ease of deployment.

Features

Optimized Design and Performance

The HP Multiservice Mobility Controller Series supports both centralized and distributed forwarding options to reduce latency, optimize application performance and increase WLAN scalability.

Optimizes wireless coverage and the user experience with Wi-Fi Clear Connect RF optimization, automatic interference mitigation and dynamic client load balancing to increase connectivity.

Offers flexible upgrade licensing to scale the network as business requirements change.

Comes in appliance or blade form factors and support for 802.11a/b/g/n clients and is 802.11ac ready.

Simplicity and Low Total Cost of Ownership (TCO)

The HP Multiservice Mobility Controller Series simplifies configuration and deployment of WLAN services with automated workflows.

Reduces complexity by streamlining configuration, management and troubleshooting of multivendor wired/WLAN networks with HP single management tool.

Environmental Parameters
	Humidity Range Operating:		20 – 90%
	Max Operating Temperature:		113 °F
	Min Operating Temperature:		41 °F
	Header
	Brand:		HP
	Compatibility:		PC
	Country Kits:		United States
	Localization:		English
	Manufacturer:		ProCurve Networking
	Model:		MSM720 Premium Mobility Controller (WW)
	Packaged Quantity:		1
	Product Line:		HP
	Interface Provided
	Connector Type:		RJ-45
	Qty:		6
	Type:		1000Base-T
	Connector Type:		DB-9
	Qty:		1
	Type:		Management
	Miscellaneous
	Compliant Standards:		AS/NZS 3548 , CISPR 22 Class A , EN55022 Class A , EN55024 , FCC Part 15 A , ICES-003 , UL 60950-1
	Rack Mounting Kit:		Optional
	Networking
	Compliant Standards:		IEEE 802.3 , IEEE 802.3ab , IEEE 802.3af , IEEE 802.3u
	Connectivity Technology:		Wired
	Data Link Protocol:		Ethernet , Fast Ethernet , Gigabit Ethernet
	Data Transfer Rate:		1 Gbps
	Features:		Auto-sensing per device , Full duplex mode , Half duplex mode , Manageable , Power over Ethernet (PoE) , Quality of Service (QoS)
	Form Factor:		External
	Ports Qty:		6
	Power Over Ethernet (PoE):		PoE
	Type:		Network management device
	Power Device
	Frequency Required:		50/60 Hz
	Nominal Voltage:		AC 120/230 V
	Power Consumption Operational:		6 Watt
	Type:		External power adapter
	Slot Provided
	Type:		None
	Slot Required
	Type:		None
	Dimensions & Weight
	Depth:		10 in
	Height:		1.7 in
	Weight:		3.5 lbs
	Width:		6.3 in
	Capacity
	Type:		Manageable access points
	Value:		40
	Type:		Simultaneous users
	Value:		250
	Type:		MAC addresses
	Value:		12000
