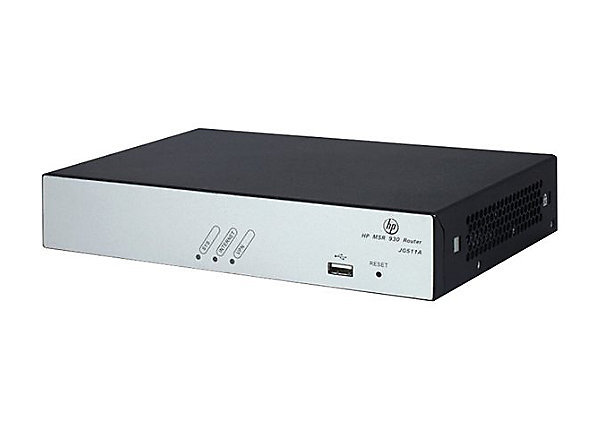

The HP MSR93x Router Series delivers a high-performance small-branch router providing integrated routing, switching, security, SIP, 802.11n WLAN connectivity, and 4G LTE/3G in a single unit. With its Converged Infrastructure, it enables faster time to service and enhanced performance while simplifying your network through a single management screen and zero-touch deployment. The MSR93x increases flexibility and agility, delivering extensive connectivity capabilities in a compact, fixed form factor. The MSR93x is based on open standards for seamless integration within small-branch deployment.
| Flash Memory | ||||
| Installed Size: | 128 MB | |||
|
|
||||
| Networking | ||||
| Compliant Standards: | IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 | |||
| Connectivity Technology: | Wired | |||
| Data Link Protocol: | Ethernet , Fast Ethernet , Gigabit Ethernet | |||
| Features: | Access Control List (ACL) support , ARP support , BOOTP support , Committed Access Rate (CAR) , DHCP support , Firewall protection , IGMP snooping , IPv6 support , MLD snooping , MPLS support , NAT support , Port isolation , Port mirroring , Quality of Service (QoS) , sFlow , Syslog support , Trivial File Transfer Protocol (TFTP) support , VPN support , Weighted Fair Queuing (WFQ) , Weighted Random Early Detection (WRED) | |||
| Integrated Switch: | 4-port switch | |||
| Key Features: | Firewall , USB port , VPN support | |||
| Network Transport Protocol: | L2TP , NTP , PPPoE , RSVP , TCP/IP | |||
| Remote Management Protocol: | CLI , HTTP , RMON 1 , SNMP 1 , SNMP 2 , SNMP 3 , Telnet , TFTP | |||
| Routing Protocol: | BGP-4 , GRE , IGMPv2 , IGMPv3 , IS-IS , MSDP , Multiprotocol BGP , OSPF , OSPFv2 , OSPFv3 , PIM-DM , PIM-SM , RIP-1 , RIP-2 , RIPng , Static IPv4 routing , Static IPv6 routing , VRRP | |||
| Type: | Router | |||
| WAN Ports Qty: | 1 | |||
|
|
||||
| RAM | ||||
| Installed Size: | 256 MB | |||
| Technology: | DDR SDRAM | |||
|
|
||||
| Service & Support | ||||
| Type: | 1 year warranty | |||
|
|
||||
| Capacity | ||||
| Type: | IPv4 routing table entries | |||
| Value: | 10000 | |||
|
|
|
|
||
| Type: | IPv6 routing table entries | |||
| Value: | 5000 | |||
|
|
|
|
||
| Type: | VPN tunnels | |||
| Value: | Up to 100 | |||
|
|
||||
| Dimensions & Weight | ||||
| Depth: | 6.3 in | |||
| Height: | 1.7 in | |||
| Weight: | 3.97 lbs | |||
| Width: | 9.1 in | |||
|
|
||||
| Environmental Parameters | ||||
| Humidity Range Operating: | 5 – 90% (non-condensing) | |||
| Max Operating Temperature: | 104 °F | |||
| Min Operating Temperature: | 32 °F | |||
|
|
||||
| Header | ||||
| Brand: | HPE | |||
| Compatibility: | PC | |||
| Country Kits: | United States | |||
| Localization: | English | |||
| Manufacturer: | ProCurve Networking | |||
| Model: | MSR930 Router | |||
| Packaged Quantity: | 1 | |||
| Product Line: | HPE | |||
|
|
||||
| Interface Provided | ||||
| Connector Type: | RJ-45 | |||
| Interface: | Ethernet 10Base-T/100Base-TX/1000Base-T | |||
| Qty: | 4 | |||
| Type: | LAN | |||
|
|
|
|
||
| Qty: | 1 | |||
| Type: | WAN | |||
|
|
|
|
||
| Type: | USB | |||
|
|
||||
| Miscellaneous | ||||
| Authentication Method: | Extensible Authentication Protocol (EAP) , RADIUS , Secure Shell v.2 (SSH2) , TACACS+ | |||
| Compliant Standards: | ANSI C63.4 , AS/NZS 60950 , CAN/CSA C22.2 No. 60950-1 , CAN/CSA C22.2 No. 60950-1-03 , EMC , EN 60825-1 , EN 60825-2 , EN 60950-1 , EN 61000-3-2:2006 , EN 61000-3-3:1995+A1:2001+A2:2005 , EN 61000-4-11 , EN 61000-4-2 , EN 61000-4-3 , EN 61000-4-4 , EN 61000-4-5 , EN 61000-4-6 , EN 61000-4-8 , EN300-386 , EN55022 Class B , EN55024 , FCC CFR47 Part 15 B , FDA , ICES-003 Class B , IEC 60950-1 , RoHS , UL 60950-1 , WEEE | |||
| Encryption Algorithm: | AES , MD5 , TLS , Triple DES | |||
|
|
||||
| Modem | ||||
| Type: | None | |||
|
|
||||
| Performance | ||||
| Type: | Throughput | |||
| Value: | Up to 0.3 Mpps | |||
|
|
|
|
||
| Type: | Encryption throughput | |||
| Value: | Up to 160 Mbps | |||
|
|
||||
| Power Device | ||||
| Type: | External power adapter | |||
|
|
||||
| Processor | ||||
| Clock Speed: | 533 MHz | |||
| Installed Qty: | 1 | |||
|
|
||||
| Service | ||||
| Support Details Full Contract Period: | 1 year | |||
| Support Details Service Included: | Advance parts replacement | |||
| Support Details Type: | Limited warranty | |||
