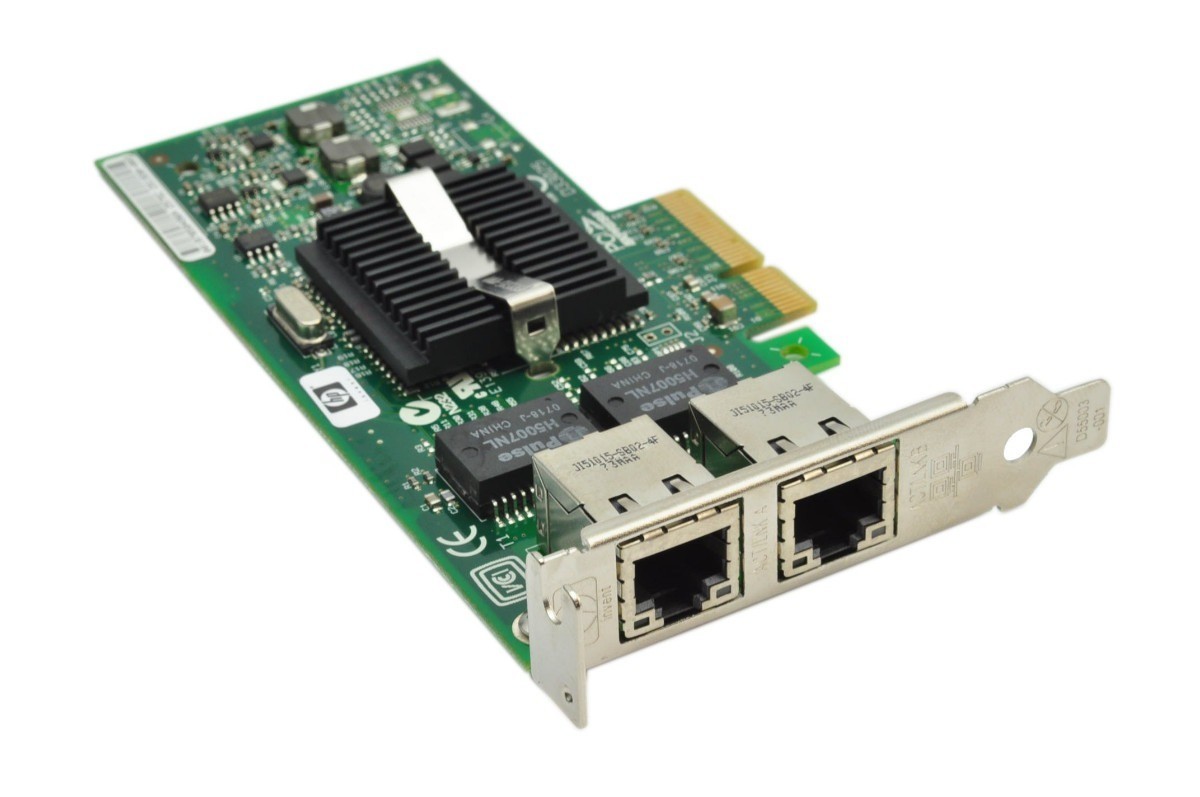

HP NC360T PCI-E 412648-B21 / 412651-001 DUAL PORT SERVER ADAPTER

The NC360T is a high performance PCI Express (PCIe) dual port, copper, gigabit network solution for ProLiant customers who demand the latest in dual port Gigabit Ethernet bandwidth and features. It offers two ports on a single PCI Express adapter, allowing customers to save valuable I/O slots for other uses. It is based upon the high performance Intel 82571EB chipset and offers a four lane (x4) PCI Express bus.

Along with all the advanced features that HP ProLiant customers have come to expect, the NC360T includes support for Wake-on-LAN (WOL), and Pre-Boot Execution environment (PXE). Additionally, it ships with support for Jumbo Frames, Network Fault Tolerance, Load Balancing, and various offload capabilities such as Segmentation Offload and Large Send Offload (LSO) that offer further network throughput improvements. Additionally, it is easy to install in either standard or low profile slots with support for IPv6 packet transmit and receive (excluding all offload capabilities).

• End-to-end Gigabit solution
• Better network performance by alleviating congestion and removing bottlenecks
• High-performance connectivity solution for your LAN
• Significantly reduces CPU utilization and increases throughput
• Allows Lower Power Consumption, Remote Wake And Remote Booting
• Pci-E V1.0A Compliant
• Senses and configures itself to the speed and duplex type of the attached device
• Support For Acpi Wol (Wake On Lan)

• Category	Proliant Option
  Sub-Category	1Gbps
  Generation	PCI-e
  Part Number	412648-B21
  Products ID	454560
  Device Type	Network Adapter
  Device Type	PCI Express x4
  Data Transfer Rate	1GB/s
  RAM	96KB

  412648-B21 Compatible Servers:

  DL1000 DL120 G5 DL140 G2 DL140 G3 DL145 G2 DL145 G3 DL160 G5 DL160 G6 G7 DL160se G6 G7 DL165 G5 DL165 G5p DL165 G6 G7 DL180 DL180 G5 DL180 G6 G7 DL185 G5 DL320 G4 DL320 G5 DL320 G5p DL320 G6 G7 DL320s DL360 G4p DL360 G5 DL360 G6 G7 DL365 DL365 G5
