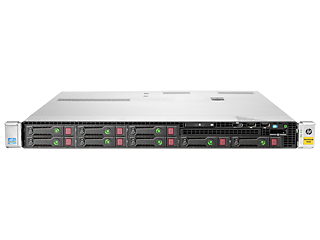

HP StoreVirtual 4330 450GB SAS Storage

Technical Specifications

Capacity

3.6 TB Starting; 115.2 TB Maximum

Drive description

(8) SFF SAS; Included

Host interface

1 GbE iSCSI (4) Ports; Optional upgrade to 10GbE iSCSI (2) Ports

Storage expansion options

Use storage clustering capability and add incremental StoreVirtual storage nodes into the array to expand storage.

Management features

Centralized Management Console, HP ProLiant Integrated Lights-Out 4 Remote Management, Baseboard Mgmt Controller IPMI 2.0

Replication support

LeftHand Remote Copy Asynchronous Replication with Bandwidth Throttling; Multi-Site/Disaster Recovery with Synchronous Replication

Smart clone support

LeftHand SmartClone

Snapshot support

LeftHand Application Managed Snapshots

Thin provisioning support

LeftHand Thin Provisioning

Availability features

Redundant, hot swap power supplies; redundant fans; redundant, hot plug hard drives, integrated storage controller with flash backed write cache; disk RAID 6 and 10; hyper-redundant clustered storage; Network RAID levels (per volume) 0,5,6,10,10+1, and 10+2 for up to four copies of your data allows data to remain available in the event of a disk, controller, storage node, power, network, or site failure.

Compatible operating systems

Microsoft Windows Unified Data Storage Server 2003 R2 SP2; Microsoft Windows Server 2012; Microsoft Windows Server 2008 R2; Oracle VM 3.2; Microsoft Windows Server 2008; Microsoft Windows Server 2012 R2; Ubuntu Server Edition 10.04 LTS; VMware ESXi 5.x; Red Hat Enterprise Linux 6.0; Citrix XenServer; SUSE Linux; VMware; Ubuntu Server Edition 12.04 LTS; All major operating systems and hypervisors are supported. For more information please visit www.hp.com/go/StoreVirtualCompatibility

Clustering support

Hyper-redundant clustered storage

Differentiator

For Small and Medium business or Remote Office environments. The 4330 delivers the performance and features required to simplify storage and grow your environment non-disruptively

Minimum dimensions (W x D x H)

4.32 x 43.47 x 69.85 cm

Minimum dimensions (W x D x H)

1.7 x 17.1 x 27.5 in

Weight

19.2 kg

Weight

42.3 lb

Warranty – year(s) (parts/labor/onsite)

3/3/3

What’s in the box

(1) 4330 Storage System with (8) 450 GB SFF SAS drives
