HP t430 Thin Client – Intel Celeron N4000 Dual-core (2 Core) 1.10 GHz – 4 GB RAM DDR4 SDRAM – 32 GB Flash – Intel UHD Graphics 600 – Gigabit Ethernet – Windows 10 IoT Enterprise – Wireless LAN – 3VL70AT

QuickSpecs HP t430 Thin Client
Overview
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 1
HP t430 Thin Client

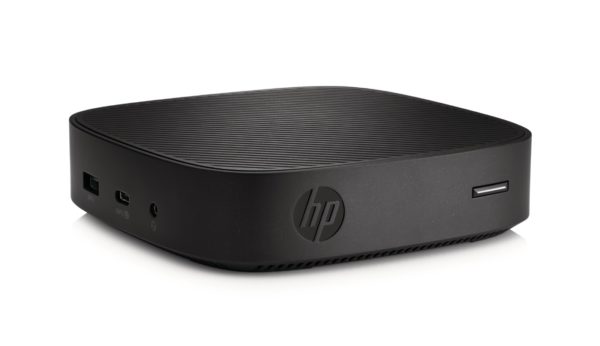

Front View Image Rear View Image
FRONT BACK
1. Power button 1. DisplayPort™ 1.2 digital video output
2. Power memory activity indicator LED light 2. HDMI digital video output
BOTTOM 3. 2 x USB-A 3.1 Gen 1 ports for keyboard/mouse
VESA 100 mounting points located underneath the
system’s rubber foot pads 4. RJ45 Gigabit Ethernet interface
5. 19V DC power input
6. Cable lock slot
SIDE
1. 1 x USB-C™ port, supporting DisplayPort™ over USB-C™
and USB Power Delivery
2. USB-A 3.1 Gen 1 port for accessories
3. 1 x 3.55 mm headset jack
QuickSpecs HP t430 Thin Client
Overview
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 2
AT A GLANCE
• Intel® Celeron® Processor N4000; 1.1 – 2.6 GHz dual-core processor
• Embedded DDR4 single-channel SDRAM system memory
o HP ThinPro models configured with 2 GB
o Windows models configured with 4 GB
• Embedded solid-state flash memory storage
o HP ThinPro models configured with 16 GB
o Windows models configured with 32 GB
• 1 x DisplayPort™, 1 x HDMI and 1 x DisplayPort™ over USB-C™ digital video outputs supporting up to Ultra High Definition
(UHD)/4K (3840 x 2160) resolutions.
• Active thermal managementtechnology monitors component operating temperatures, throttles SOC processorif
appropriate, and prevents unit thermal shutdown
• Gigabit Ethernet(GbE) network connection supported via an integrated Realtek GbE NIC module and presented with an
RJ45 connector on the rear I/O panel
• OptionalWi-Fi/Bluetooth® adapterincluding antennas integrated internally in the chassis1
.
• USB ports located on the back and side panels, including a USB-C™ 3.1 Gen 1 port that supports DisplayPort™ over USB-C™
and USB Power Delivery
• 3.5 mm headset audio port on side panel that will support a headset, headphones or an external speaker system
• Integrated VESA 100 mounting system; the four threaded holes are conveniently located under the unit’s rubber foot pads
• TCG certified Trusted Platform Module (TPM) chipset on Windows models; other security features include a system UEFI
designed to address NIST SP 800-147 guidelines, cable lock slot, and power cord retention clip to prevent accidental power
cord disconnects
• ENERGY STAR® certified and EPEAT® Gold registered in the United States. See http://www.epeat.net forregistration status
in other countries
• Post-consumerrecycled plastics content greaterthan 25% total unit plastics (by weight)
• Low halogen2material content
1 Wireless access point and Internet access is required; availability of public wireless access points is limited
2 This product is low halogen except for power cords, cables and peripherals; service parts obtained aftermarket may not be low halogen
Warranty
HP Customer Support: limited three-year hardware limited warranty in mostregions; HP Care Packs are extended service contracts
that go beyond your standard limited warranties; for more details visit http://www.hp.com/go/cpc
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 3
OPERATING SYSTEMS
HP ThinPro, including HP Smart Zero Core
Microsoft Windows 10 IoT Enterprise
PROCESSOR
Model CPU Frequency
base/max
x86 Cores GPU EUs Cache GPU Memory
Intel® Celeron®
Processor N4000 1.1/2.6 GHz 2 12 4 MB Intel® UHD Graphics 600 DDR4 2400
NOTE: CPU Maximum frequency is based on Intel® Turbo Boost Technology
GRAPHICS
Number of displays supported: One or two displays.
NOTE: a maximum of two displays are supported.
Video outputs:
1 x HDMI port
1 x DisplayPort™
1 x DisplayPort™ over USB-C™
NOTE: dual displays are supported using the following video output combinations:
• HDMI + DisplayPort™
• HDMI + DisplayPort™ over USB-C™
Video Resolution Support Matrix
Windows 10 IoT RS1 ≤2 x FHD
1920 x 1080 @ 60Hz
1 x UHD/4K
3840 x 2160 @ 60Hz
2 x UHD/4K
3840 x 2160 @ 30Hz
Static screen (no video) ✓ ✓ ✓
1080p 30fps (or below) video ✓ ✓ ✓
1080p 60fps video ✓ ✓ ✓
4k @ 30fps video ✓ ✓
HP ThinPro 6.2 ≤2 x FHD
1920 x 1080 @ 60Hz
1 x UHD/4K
3840 x 2160 @ 60Hz
2 x UHD/4K
3840 x 2160 @ 30Hz
Static screen (no video) ✓ ✓ ✓
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 4
1080p 30fps (or below) video ✓ ✓ ✓
1080p 60fps video
4k @ 30fps video
NOTES:
• 4K video playback is not supported over Virtual Desktop Infrastructure (VDI)
• Only 1 Citrix session can be launched
MEMORY
Type: Single channel DDR4 SDRAM
Data Transfer Rate (speed): up to 2,400 MT/s
Peak Transfer Rate (bandwith): 19,200 MB/s
Number of slots: 0 slots; memory is embedded
Memory Capacity: 2 GB on ThinPro models
4 GB on Windows models
Reserved for graphics: 256 MB (default), 512 MB or 1 GB
NOTE: The system’s Graphics Processing Unit (GPU) uses part of total system memory. System memory dedicated to graphics
performance is not available for use by other programs
UEFI (Unified Extensible Firmware Interface)
• UEFI Specification Revision: 2.6
• Meets requirements for Common Criteria, an independent third-party certification of trustworthiness
• Meets requirements for FIPS 140-2, a standard for cryptographic integrity
• Designed to address NIST SP800-147 guidelines
TRUSTED PLATFORM MODULE (TPM)
• Trusted Computing Group (TCG) certified TPM 2.0 on Windows 10 IoT Enterprise models
NOTE: HP ThinPro models do not include a TPM
STORAGE
Type: NAND flash memory; non-volatile
Number of sockets: 0 slots; flash storage is embedded
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 5
Storage Capacity:
16 GB on HP ThinPro models
32 GB on Windows models
INPUT/OUTPUT
USB ports: 1 x USB-C™ featuring DisplayPort™ over USB-C™ and USB Power Delivery
3 x USB-A 3.1 Gen 1 ports; 2 x rear ports, 1 x side port
Video outputs*:
1 x DisplayPort™ 1.2
1 x HDMI
1 x DisplayPort™ over USB-C™
Other: 1 x RJ45 GbE interface
1 x 3.5mm headset jack
NOTE: only 2 video outputs can be used simultaneously
AUDIO/VIDEO
Audio:
3.5 mm headset jack supporting a headset, headphones or and external speaker
Audio CODECs include MP3, AAC stereo, HE AAC
Includes hardware acceleration support
Video:
MPEG-4 part 2 (DivX, Xvid)
MPEG-4 part 10 (H.264), Advanced Video Coding (AVC) (H.264 encode)
MPEG-H part 2, High Efficiency Video Coding (HEVC) (H.265. decode)
WMV 7/8/9 VC-1 & ASF Demuxer
Includes hardware acceleration support
HARDWARE SECURITY
• Security lock support (cable lock sold separately)
• Trusted Platform Module (TPM) on Windows models
NETWORKING
Wired networks:
Realtek Gigabit Ethernet (GbE)
Wake on LAN
PXE
TCP/IP with DNS DHCP
Secure Socket Tunneling Protocol (SSTP); supported with a Microsoft operating system
Wireless networks: Intel® Wireless-AC 9260 with Bluetooth®; M.2 module with integrated internal Wi-Fi antenna system
NOTE: Wireless access point and Internet access required. Availability of public wireless access point may be limited. Wireless
features, performance and support may vary depending on environmental variables such as placement, settings and firmware of
the access point. Contact your wireless vendor for support.
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 6
SOFTWARE SUPPORT
Host Environment Protocol HP ThinPro
HP Smart Zero Core MS Win10 IoT
Microsoft Remote Desktop Services Remote FX (RFX), RDP ✓ ✓
Citrix® ICA, HDX ✓ ✓
VMware® Horizon™ RDP, PCoIP, Blast Extreme ✓ ✓
Protocol Clients HP ThinPro
HP Smart Zero Core MS Win10 IoT
Citrix Receiver™ ✓ ✓
Microsoft Remote Desktop Client ✓
VMware® Horizon View™ Client ✓ ✓
HP TeemTalk Terminal Emulator ✓
Free RDP ✓
Browser Support HP ThinPro
HP Smart Zero Core MS Win10 IoT
Mozilla Firefox 50.0.1
Internet Explorer 11
Security HP ThinPro
HP Smart Zero Core MS Win10 IoT
SmartCard ✓ ✓
Logon Manager ✓ ✓
Read-only operating system ✓ ✓
802.1x ✓ ✓
Operating system write filter HP Write Manager
Microsoft Unified Write Filter
Microsoft Firewall ✓
Management Tools HP ThinPro
HP Smart Zero Core
MS Win10 IoT
HP Device Manager ✓ ✓
HP ThinUpdate ✓
HP Easy Tools ✓
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 7
HP Smart Zero Client Services ✓
Microsoft SCCM/EDM agent ✓
Additional Components HP ThinPro
HP Smart Zero Core
MS Win10 IoT
HP Easy Shell ✓
Windows Media Player 12
Microsoft Direct Access ✓
Microsoft BranchCache ✓
Microsoft AppLocker ✓
Microsoft Sideloading ✓
NOTE: Software performance and support may vary depending on customer environment and backend.
Audio/Video CODEC HP ThinPro
HP Smart Zero Core
MS Win10 IoT
MP3 ✓ ✓
WMA Stereo ✓ ✓
AAC stereo &HE AAC ✓ ✓
Microsoft AC3 encoder 12
MPEG-1 ✓
MPEG-4 part 2 (DivX, Xvid, H.263) ✓ ✓
MPEG-4 part 10 (H.264, AVC) ✓ ✓
WMV 7/8/9/ VC-1& ASF Demuxer ✓ ✓
NOTE: Software performance and support may vary depending on customer environment and backend.
WEIGHTS & DIMENSIONS
W x D x H 135 x 135 x 32 mm
Volume 0.58 liter
System Weight 416 g (0.92 lb)
Shipping Weight 1270 g (2.80 lb.)
NOTE: All measurements are approximate; the addition of optional modules will increase the weight
POWER SUPPLY
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 8
45W external power adapter
Worldwide auto-sensing 100-240 VAC, 50-60 Hz
Energy saving automatic power-down
Surge tolerant
AGENCY COMPLIANCE
Accessibility: Section 508 Accessibility. VPAT report available
Environmental Stewardship: Worldwide (ENERGY STAR®, EPEAT®, ROHS, ERP, TCO, MEPS, CECP, HP GSE, etc.)
Product Safety: Worldwide (UL, CB, GS, CCC, etc.)
Electromagnetic Compliance (EMC): Worldwide(FCC/CISPR/EN/VCCI/ICES/AS/NZS/CNS/KCC) “Class B” EMI regulations
ENVIRONMENTAL
Operating Temperature Range: 50° to 104° F (10° to 40° C)
Non-operating Temperature Range: -22° to 140° F (-30° to 60° C)
Humidity:
Condensing: 20% to 80%
Non-condensing: 10% to 90%
NOTE: Specifications are at sea level with altitude derating of 1° C/300m (1.8° F/1000ft) to a maximum of 3 Km (10,000 ft), with
no direct, sustained sunlight. Upper limit may be limited by the type and number of options installed.
Eco-Label Certifications & declarations This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
• ENERGY STAR®
• EPEAT® Gold registered in the United States. See http://www.epeat.net for
registration status in your country.
• IT ECO declaration
Energy Consumption
(in accordance with US ENERGY STAR®
test method)
115 V ac, 60 Hz 230 V ac, 50 Hz 100 V ac, 50 Hz
Normal Operation (Short idle) 3.44 W 3.48 W 3.48 W
Normal Operation (Long idle) 2.67 W 2.64 W 2.71 W
Sleep 0.60 W 0.66 W 0.58 W
Off 0.58 W 0.66 W 0.58 W
Heat Dissipation* 115 V ac, 60 Hz 230 V ac, 50 Hz 100 V ac, 50 Hz
Normal Operation (Short idle) 12 BTU/hr 12 BTU/hr 12 BTU/hr
Normal Operation (Long idle) 9 BTU/hr 9 BTU/hr 9 BTU/hr
Sleep 2 BTU/hr 2 BTU/hr 2 BTU/hr
Off 2 BTU/hr 2 BTU/hr 2 BTU/hr
NOTE:Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 9
Additional Information • This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive -2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
• This product is in compliance with the IEEE 1680 (EPEAT®) standard at the gold
level, see www.epeat.net
• Plastics parts weighing over 25 grams used in the product are marked per ISO
11469 and ISO1043.
• This product contains 5.65 % post-consumer recycled plastic (by wt.)
• This product is 93.1 % recycle-able when properly disposed of at end of life.
Packaging Materials External: PAPER/Corrugated 402 g
Internal: PLASTIC/EPE 33 g
PLASTIC/LDPE 39 g
RoHS Compliance HP Inc. is committed to compliance with all applicable environmental laws and
regulations, including the European Union Restriction of Hazardous Substances (RoHS)
Directive. HP’s goal is to exceed compliance obligations by meeting the requirements
of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be
virtually eliminated (virtually = to levels below legal limits) for all HP electronic
products subject to the RoHS Directive, except where it is widely recognized that there
is no technically feasible alternative (as indicated by an exemption under the EU RoHS
Directive).
Material Usage This product does not contain any of the following substances in excess of regulatory
limits (refer to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specificat
ions.html):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants
in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be
frequently handled or carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
QuickSpecs HP t430 Thin Client
Technical specifications
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 10
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging HP follows these guidelines to decrease the environmental impact of product
packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging
materials.
• Use readily recyclable packaging materials such as paper and corrugated
materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120
standards.
End-of-life Management and Recycling HP Inc. offers end-of-life HP product return and recycling programs in many
geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuserecycle or contact your nearest HP sales office. Products returned to HP will be
recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This information
(product disassembly instructions) is posted on the HP Inc. web site at:
http://www.hp.com/go/recyclers. These instructions may be used by recyclers and
other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell
HP equipment.
HP, Inc. Corporate Environmental
Information
For more information about HP’s commitment to the environment:

Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ec
olabels.html
ISO 14001 certificates:
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755842
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
QuickSpecs HP t430 Thin Client
Summary of Changes
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 11
Date of change: Version History: Type of change Description of change:
June 18, 2018 From v1 to v2 Update Input/Output, Weights & Dimensions
July 24, 2018 From v2 to v3 Update Environmental section
August 20; 2018 From v3 to v4 Changed Software support for VMware Horizon
September 10, 2018 From v4 to v5 Changed Format
QuickSpecs HP t430 Thin Client
c05951203 — DA — 16207 Worldwide — Version 5 — September 10, 2018 Page 12
© 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties
for HP products and services are set forth in the express limited warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. DisplayPort™ and the DisplayPort™
logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
Amazon Web Services, the “Powered by Amazon Web Services” logo, and Amazon WorkSpaces are trademarks of Amazon.com,
Inc. or its affiliates in the United States and/or other countries. Bluetooth® is a trademark owned by its proprietor and used by HP
Inc. under license. ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency. Linux® is the
registered trademark of Linus Torvalds in the U.S. and other countries. Microsoft and Windows are either registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other countries. Intel® is a trademark of Intel Corporation in
the U.S and other countries. VMware Horizon and VMware Horizon View are registered trademarks or trademarks of VMware, Inc.
in the United States and/or other jurisdictions. Citrix and Citrix Receiver are trademarks of Citrix Systems, Inc. and/or one more of
its subsidiaries, and may be registered in the United States Patent and Trademark Office and in other countries.
