- Total Cores: 20
- # of Performance-cores: 8
- # of Efficient-cores: 12
- Total Threads: 28
- Max Turbo Frequency: 5.4 GHz
- IntelĀ® Turbo Boost Max Technology 3.0 Frequency: 5.4 GHz
- Performance-core Max Turbo Frequency: 5.3 GHz
- Efficient-core Max Turbo Frequency: 4.2 GHz
- Performance-core Base Frequency: 2.1 GHz
- Efficient-core Base Frequency: 1.5 GHz
- Cache: 33 MB IntelĀ® Smart Cache
- Total L2 Cache: 28 MB
- Processor Base Power: 65 W
- Maximum Turbo Power: 219 W
Firewalls & Security Devices

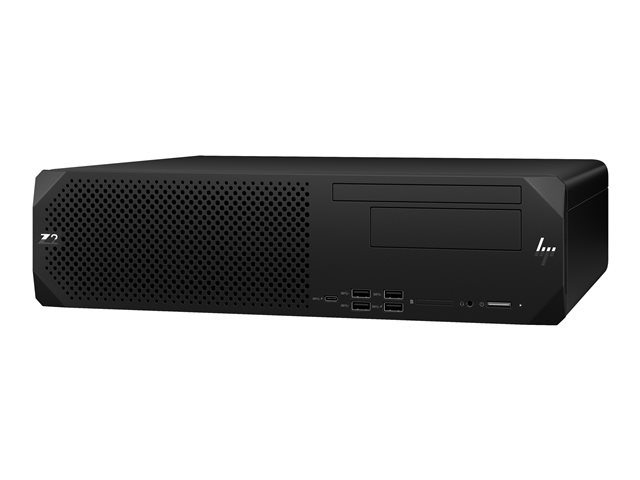

HP Z2 Series – Intel Core i7-14700 (1.50 GHz, up to 5.40 GHz, 20 cores – 14th Generation) – 16 GB 4800MHz DDR5 (1X16GB) UDIMM – 512 GB M.2 PCIe NVMe 2280 TLC 4X4 SSD
HP Z2 Series – Intel Core i7-14700 (1.50 GHz, up to 5.40 GHz, 20 cores – 14th Generation) – 16 GB 4800MHz DDR5 (1X16GB) UDIMM – 512 GB M.2 PCIe NVMe 2280 TLC 4X4 SSD – Windows 11 Pro – HP Wolf Pro Security Edition – 1 Year
7,299.00 د.إ
Category | Details |
---|
General |
Type | Workstation |
Bundled Services | HP 1 year Wolf Pro Security Edition Service |
Product Form Factor | Small form factor |
Built-in Devices | Speaker |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Color | Black |
Localization | Language: English / region: United States |
Bundled with | HP Wolf Pro Security Edition (1 year) |
Processor / Chipset |
CPU | Intel Core i7 (14th Gen) i7-14700 |
Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
Number of Cores | 20-core |
CPU Qty | 1 |
Max CPU Qty | 1 |
L2 Cache | 28 MB |
CPU Upgradability | Upgradable |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
CPU Socket | LGA1700 Socket |
Chipset Type | Intel W680 |
Cache Memory |
Installed Size | L3 cache – 33 MB |
Cache Per Processor | 33 MB |
RAM |
Installed Size | 16 GB / 128 GB (max) |
Technology | DDR5 SDRAM – non-ECC |
Effective Memory Speed | 4800 MHz |
Rated Memory Speed | 4800 MHz |
Form Factor | DIMM 288-pin |
Slots | 4 (total) / 3 (empty) |
Features | Unbuffered |
Configuration Features | 1 x 16 GB |
Hard Drive |
Type | SSD – M.2 2280 |
Capacity | 1 x 512 GB |
Interface Type | PCI Express |
Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
Storage Controller |
Type | 1 x SATA/NVMe |
Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
Channel Qty | 4 |
RAID Level | RAID 0, RAID 1 |
Optical Storage |
Type | No optical drive |
Monitor |
Monitor Type | None. |
Graphics Controller |
Graphics Processor | Intel UHD Graphics 770 Unified Memory Architecture (UMA) |
Video Interfaces | DisplayPort |
Audio Output |
Compliant Standards | High Definition Audio |
Input Device |
Type | Mouse, keyboard |
Keyboard |
Keyboard Name | HP 320K |
Interface | USB |
Localization & Layout | US |
Mouse |
Mouse Name | HP 320M |
Networking |
Ethernet Controller | Intel I219-LM |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
Expansion / Connectivity |
Bays | 1 (total) / 1 (free) x external 3.5″ |
1 (total) / 1 (free) x external 5.25″ Slim Line |
1 (total) / 1 (free) x internal 3.5″ |
Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 |
1 (total) / 1 (free) x PCIe 3.0 x4 |
1 (total) / 1 (free) x PCIe 3.0 x16 (PCIe 3.0 x4 mode) |
1 (total) / 1 (free) x PCIe 3.0 x1 |
3 (total) / 2 (free) x M.2 Card – 2280 (for SSD) |
1 (total) / 1 (free) x M.2 Card – 2230 (for WLAN) |
Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) |
4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) |
1 x USB-C 3.2 Gen 2×2 (1 in front) (charging) |
1 x audio line-out |
2 x DisplayPort 1.4 |
3 x USB 2.0 |
3 x USB 3.2 Gen 1 |
1 x LAN (Gigabit Ethernet) |
Miscellaneous |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
Compliant Standards | RoHS, FIPS 140-2, WEEE, CECP, low halogen, ISV Certified |
Manufacturer Selling Program | HP Smart Buy |
Power |
Device Type | Power supply |
Power Provided | 450 Watt |
Efficiency | 90% |
Power Factor Correction | Yes (active) |
Operating System / Software |
OS Provided | Windows 11 Pro English |
Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP ZCentral Remote Boost, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0 |
Sustainability Information |
ENERGY STAR Certified | Yes |
