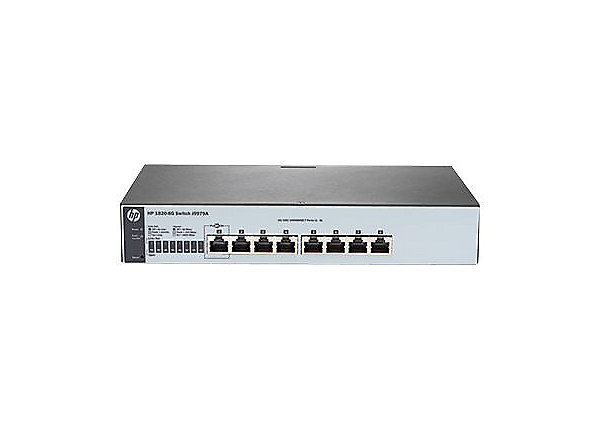

HP 1820-8G Switch J9979A#ABA
Main Features
|
HP 1820 Switch Series devices are basic, smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution. All 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available. These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down. |
Environmental Parameters | ||||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Humidity Range Operating: | Ā | 15 – 95% (non-condensing) | |
Ā | Ā | |||
Ā | Humidity Range Storage: | Ā | 15 – 95% (non-condensing) | |
Ā | Ā | |||
 | Max Operating Temperature: |  | 104 °F | |
Ā | Ā | |||
 | Max Storage Temperature: |  | 158 °F | |
Ā | Ā | |||
 | Min Operating Temperature: |  | 32 °F | |
Ā | Ā | |||
 | Min Storage Temperature: |  | -40 °F | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Header | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Brand: | Ā | HPE | |
Ā | Ā | |||
Ā | Compatibility: | Ā | PC | |
Ā | Ā | |||
Ā | Country Kits: | Ā | United States | |
Ā | Ā | |||
Ā | Localization: | Ā | English | |
Ā | Ā | |||
Ā | Manufacturer: | Ā | ProCurve Networking | |
Ā | Ā | |||
Ā | Model: | Ā | 1820-8G | |
Ā | Ā | |||
Ā | Packaged Quantity: | Ā | 1 | |
Ā | Ā | |||
Ā | Product Line: | Ā | HPE | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Interface Provided | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Connector Type: | Ā | RJ-45 | |
Ā | Ā | |||
Ā | Qty: | Ā | 8 | |
Ā | Ā | |||
Ā | Type: | Ā | 1000Base-T | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Miscellaneous | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Compliant Standards: | Ā | CSA 22.2 No. 60950 , EN 60950 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-4-11 , EN 61000-4-2 , EN 61000-4-3 , EN 61000-4-4 , EN 61000-4-5 , EN 61000-4-6 , EN 61000-4-8 , EN55022 , EN55024 , FCC Class A certified , FCC Part 15 B , ICES-003 , IEC 60950 , UL 60950 , VCCI | |
Ā | Ā | |||
Ā | Encryption Algorithm: | Ā | SSL | |
Ā | Ā | |||
Ā | Height (Rack Units): | Ā | 1 | |
Ā | Ā | |||
Ā | Rack Mounting Kit: | Ā | Included | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Networking | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Compliant Standards: | Ā | IEEE 802.1ab (LLDP) , IEEE 802.1p , IEEE 802.1Q , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3u , IEEE 802.3x | |
Ā | Ā | |||
Ā | Features: | Ā | Auto-uplink (auto MDI/MDI-X) , BOOTP support , DHCP support , DoS attack prevention , Flow control , Full duplex capability , Jumbo Frames support , Layer 2 switching , LLDP support , Port mirroring , Quality of Service (QoS) , SNTP support , VLAN support | |
Ā | Ā | |||
Ā | Form Factor: | Ā | Desktop , Rack-mountable , Wall-mountable | |
Ā | Ā | |||
Ā | Jumbo Frame Support: | Ā | Yes | |
Ā | Ā | |||
Ā | MAC Address Table Size: | Ā | 8000 entries | |
Ā | Ā | |||
Ā | Manageable: | Ā | Yes | |
Ā | Ā | |||
Ā | Ports Qty: | Ā | 8 | |
Ā | Ā | |||
Ā | Remote Management Protocol: | Ā | HTTPS , SNMP 1 , SNMP 2c | |
Ā | Ā | |||
Ā | Subcategory: | Ā | Network hubs and switches | |
Ā | Ā | |||
Ā | Subtype: | Ā | Gigabit Ethernet | |
Ā | Ā | |||
Ā | Type: | Ā | Switch | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Power Device | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Frequency Required: | Ā | 50/60 Hz | |
Ā | Ā | |||
Ā | Nominal Voltage: | Ā | AC 120/230 V | |
Ā | Ā | |||
Ā | Type: | Ā | Internal power supply | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Processor | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Clock Speed: | Ā | 400 MHz | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Dimensions & Weight | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Depth: | Ā | 6.3 in | |
Ā | Ā | |||
Ā | Height: | Ā | 1.7 in | |
Ā | Ā | |||
Ā | Weight: | Ā | 1.81 lbs | |
Ā | Ā | |||
Ā | Width: | Ā | 10 in | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Flash Memory | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Installed Size: | Ā | 16 MB | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Performance | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Type: | Ā | Throughput | |
Ā | Ā | |||
Ā | Value: | Ā | Up to 11.9 Mpps | |
Ā | Ā | |||
Ā |
|
|
|
|
Ā | Ā | |||
Ā | Type: | Ā | Switching capacity | |
Ā | Ā | |||
Ā | Value: | Ā | 16 Gbps | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | Ports | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Qty: | Ā | 8 | |
Ā | Ā | |||
Ā | Type: | Ā | 10/100/1000 | |
Ā |
|
|||
Ā | Ā | Ā | Ā | |
Ā | RAM | |||
Ā | Ā | Ā | Ā | |
Ā | Ā | |||
Ā | Installed Size: | Ā | 128 MB | |
Ā | Ā | |||
Ā | Technology: | Ā | SDRAM | |
Ā | Ā |
