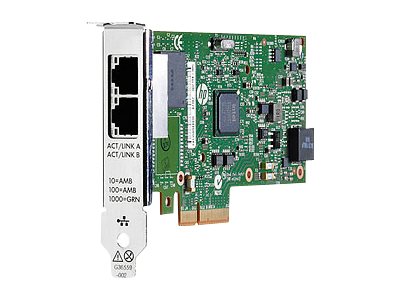

HPE 361T – network adapter – PCIe 2.0 x4 – Gigabit Ethernet x 2

Add to Wishlist

HPE 361T – Network adapter – PCIe 2.0 x4 low profile – Gigabit Ethernet x 2 – remarketed – for ProLiant DL360 Gen10, DL388p Gen8

AED2,499.00

Add to Wishlist

The HPE 361T offers two high-performing 1GbE PCIe Gen 2.1 connections in a low cost, low power, halogen-free design. Based on the fully integrated (bridgeless) Intel Ethernet I350 Controller, it introduces new levels of performance and power management technologies for HPE ProLiant Gen8 DL/ML/SL servers and select G7 servers.

It can be used with a full height or low profile bracket, and can operate at three different data rates (10/100/1000 Mbps). The HPE 361T is positioned as the follow-on to the HPE NC360T.

SKU: 652497R-B21 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card – low profile
Interface (Bus) Type PCI Express 2.0 x4
PCI Specification Revision PCIe 2.0
Networking
Ports Gigabit Ethernet x 2
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 Gbps
Remote Management Protocol SNMP
Status Indicators Port transmission speed, link/activity
Features Auto-negotiation, wake on LAN (WOL), network fault tolerance (NFT), Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor / Memory
Processor 1 x Intel I350
Expansion / Connectivity
Expansion Slots 2 (total) / 0 (free) x SFP+
Interfaces 2 x 1000Base-T – RJ-45
Compatible Slots 1 x PCI Express 2.0 x4 – low-profile
Miscellaneous
Included Accessories Low-profile bracket
Compliant Standards FCC Class B certified, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A
Pricing Type Remarketed
Software / System Requirements
OS Required SUSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0
Dimensions & Weight
Depth 5.3 in
Height 2.5 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 – 95% (non-condensing)
Compatibility Information
Designed For HPE Apollo 4200 Gen10, HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10, HPE ProLiant DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10
