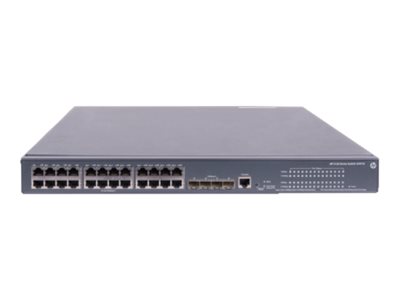

HPE 5120-24G-PoE+ SI – switch – 24 ports – managed – rack-mountable JG091B#ABA

Availability:

10 in stock
Add to Wishlist

AED11,899.00

10 in stock

Add to Wishlist

HPE 5120 24G PoE+ 370W Si Switch



The HPE FlexNetwork 5120 SI Switch Series are Layer 2 switches that support stacking, static Layer 3 routing, PoE+, ACLs and IPv6. They are campus switches ideal for medium and large enterprise networks. HPE Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing four switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity. The FlexNetwork 5120 SI Switch Series can be managed with HPE Intelligent Management Center (IMC) Software for a single view of your entire network.

Managed Access Layer Switches

  • The HPE FlexNetwork 5120 SI Switch Series is ideal for medium and large enterprises looking for a traditional, scalable, fully managed Layer 2 access switch with static IP routing, PoE+, ACLs, IPv6, and support for stacking.
  • The HPE Intelligent Resilient Framework (IRF) virtualizes up to four physical switches into one logical device for simpler, flatter, more agile networks.
  • PoE+ models support up to 370 W of PoE/PoE+ power for phones, cameras and wireless access points; up to 720 W available on the 24-port model with optional accessories.
  • Right size deployment with 8-, 16-, 24-, and 48-port gigabit Ethernet models that include up to 4 SFP ports for fiber uplinks.

Advanced Quality of Service (QoS)

  • The HPE FlexNetwork 5120 SI Switch Series delivers a better application experience with classifier-based QoS using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per port basis.
  • Network traffic prioritization with multiple congestion methods include: strict priority (SP) queuing, SDWRR, and SP+WRR.

Security Control

  • The HPE FlexNetwork 5120 SI Switch Series supports hardware-based wire-speed access control lists (ACLs) for enhanced security and ease of administration without impacting network performance.
  • RADIUS/HWTACACS, SSL, Port Security, and 802.1x and MAC-based authentication deliver enhanced security.

Single View of the Network

  • The HPE FlexNetwork 5120 SI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
  • Remote Network Monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms and events.
SKU: JG091B#ABA Category: Tags: ,

Specifications

General
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Latency (1000Base-T): 3 µs Throughput: up to 41.7 Mpps Routing/switching capacity: 56 Gbps
Capacity Virtual interfaces (VLANs): 4094 IPv4 routing table entries: 32
MAC Address Table Size 8192 entries
Jumbo Frame Support 10KB
Routing Protocol OSPF, RIP, IGMP, static IPv4 routing, static IPv6 routing
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, CLI
Encryption Algorithm SSL
Authentication Method RADIUS, Secure Shell v.2 (SSH2), HWTACACS
Features Flow control, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Endpoint Admission Defense (EAD), STP Root Guard, LLDP support, Link Aggregation Control Protocol (LACP), Port Security, Management Information Base (MIB), dynamic ARP protection, DHCP protection, 500KB packet buffer, non blocking ports, Ingress Layer 2 MAC Access Control Lists (ACLs), Strict Priority (SP), Intelligent Resilient Framework Technology (IRF), Smoothed Deficit Weighted Round Robin (SDWRR), IP source guard, Bridge protocol data unit (BPDU)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
RAM 128 MB SDRAM
Flash Memory 128 MB
Status Indicators Power
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ 4 x Gigabit LAN SFP 1 x console RJ-45 management
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
Compliant Standards ETSI, CISPR 22 Class A, GOST, EN 61000-3-2, NOM, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, ANATEL, FDA, EN 60825-1, ANSI C63.4-2003, EN 60825-2, EN 61000-3-2:2006, VCCI Class A, EN 61000-3-3:1995+A1:2001+A2:2005, AS/NZS CISPR 22, EMC 2004/108/EC, EN 300 386 V1.3.3, FCC CFR47 Part 15 A, CAN/CSA-C22.2 No. 60950-1
Localization English / United States
Dimensions & Weight
Width 17.3 in
Depth 14.2 in
Height 1.7 in
Weight 15.43 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95% (non-condensing)
General
Authentication Method RADIUS, Secure Shell v.2 (SSH2), HWTACACS
Capacity Virtual interfaces (VLANs): 4094 ¦ IPv4 routing table entries: 32
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Encryption Algorithm SSL
Features Flow control, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Endpoint Admission Defense (EAD), STP Root Guard, LLDP support, Link Aggregation Control Protocol (LACP), Port Security, Management Information Base (MIB), dynamic ARP protection, DHCP protection, 500KB packet buffer, non blocking ports, Ingress Layer 2 MAC Access Control Lists (ACLs), Strict Priority (SP), Intelligent Resilient Framework Technology (IRF), Smoothed Deficit Weighted Round Robin (SDWRR), IP source guard, Bridge protocol data unit (BPDU)
Flash Memory 128 MB
Jumbo Frame Support 10KB
MAC Address Table Size 8192 entries
Performance Latency (1000Base-T): 3 µs ¦ Throughput: up to 41.7 Mpps ¦ Routing/switching capacity: 56 Gbps
PoE Budget 370 W
Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
RAM 128 MB SDRAM
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, CLI
Routing Protocol OSPF, RIP, IGMP, static IPv4 routing, static IPv6 routing
Status Indicators Power
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 14.2 in
Height 1.7 in
Weight 15.43 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 10 – 90% (non-condensing)
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 PoE+ ¦ 4 x Gigabit LAN SFP ¦ 1 x console RJ-45 management
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Miscellaneous
Compliant Standards ETSI, CISPR 22 Class A, GOST, EN 61000-3-2, NOM, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, ANATEL, FDA, EN 60825-1, CAN/CSA C22.2 No. 60950-1, ANSI C63.4-2003, EN 60825-2, EN 61000-3-2:2006, VCCI Class A, EN 61000-3-3:1995+A1:2001+A2:2005, AS/NZS CISPR 22, EMC 2004/108/EC, EN 300 386 V1.3.3, FCC CFR47 Part 15 A
Localization English / United States
Rack Mounting Kit Included
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
