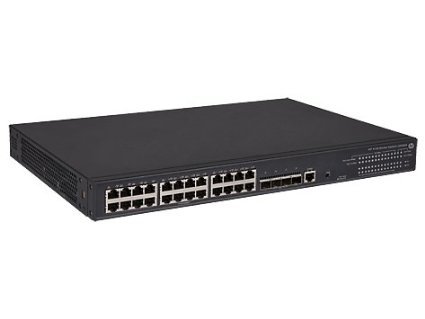

HPE 5130-24G-PoE+-4SFP+ (370W) Ei Switch
HPE 5130-24G-PoE+-4SFP+ (370W) Ei Switch
,

HPE 5130-24G-PoE+-4SFP+ (370W) Ei Switch

Availability:

30 in stock
Add to Wishlist

AED2,799.00

30 in stock

Add to Wishlist

HP JG936A – 5130-24G-PoE+-4SFP+ EI – Switch – L3 – Managed – 24 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ – rack-mountable – PoE+

The HP 5130 EI Switch Series are Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, IPv6 forwarding and provide four 10-Gigabit Ethernet extended interfaces.

Overview

Ā

The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Ā

Specifications

Compare Features
General Information
Product Name 5130-24G-PoE+-4SFP+ (370W) Ei Switch
Manufacturer Part Number JG936A#ABA
Product Series 5130 EI
Product Model 5130-24G-POE+-4SFP+ EI
Packaged Quantity 1
Product Type Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports 24
Uplink Port Yes
Modular No
Port / Expansion Slot Details 24 x Gigabit Ethernet Network

4 x 10 Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots 4
Expansion Slot Type SFP+
Number of SFP Slots 4
Number of SFP+ Slots 4
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet

10 Gigabit Ethernet
Network Technology 10/100/1000Base-T

10GBase-X
Network & Communication
Layer Supported 3
Power Description
Power Source Power Supply
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 17.3″
Depth 11.8″
Warranty
Limited Warranty Lifetime
Miscellaneous
Package Contents
  • 5130-24G-POE+- 4SFP+ EI Switch
  • Mounting Brackets
  • Power Cord
Green Compliant Yes
Green Compliance Certificate / Authority RoHS

WEEE

REACH
Other Information
Product Family 5130 EI
PoE (RJ-45) Port No
Token Ring Port No
LRE Port No
USB No
Management Port Yes
Number of PoE+ (RJ-45) Ports 24
Bypass No
Memory Technology SDRAM
Certifications & Standards Safety:

  • UL 60950-1
  • EN 60825-1 Safety of Laser Products-Part 1
  • EN 60825-2 Safety of Laser Products-Part 2
  • IEC 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • Anatel
  • ULAR
  • GOST
  • EN 60950-1/A11
  • FDA 21 CFR Subchapter J

Emissions:

  • EMC Directive 2004/108/EC
  • FCC (CFR 47, Part 15) Class A
  • EN 61000-4-11:2004
  • ANSI C63.4-2009
  • EN 61000-3-3:2008
  • VCCI V-4/2012.04
  • EN 6100-3- 2:2006+A1:2009 + A2:2009
  • EN 61000-3- 2:2006+A1:2009+A2:20 09
  • EN 61000-4-3:2006
  • EN 61000-4-4:2012
  • EN 61000-4-5:2006
  • EN 61000-4-6:2009
  • AS/NZS CISPR 22:2009 Class A
  • CISPR 22:2008 Class A
  • EN 55022:2010 Class A
  • EN 61000-4-29: 2000
  • CISPR 24:2010
  • EN 300 386 V1.6.1
  • VCCI V-3/2013.04 Class A

Immunity:

  • Generic: EN 55024
  • ESD: EN300 386

IEEE Standards:

  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.3
  • 802.3a
  • 802.3a
  • 802.3i
  • 802.3x
  • 802.3z
MTBF 417312 Hour
Management
  • Web-based Management
  • SNMP v1/2c/3
  • Command Line Interface (CLI)
  • RMON
  • DHCP
  • IMC
  • MIB
Flash Memory 128 MB
Input Voltage 120 V AC

230 V AC
Standard Memory 1 GB



SKU: JG936A Categories: , Tags: , ,
Weight 6 kg
