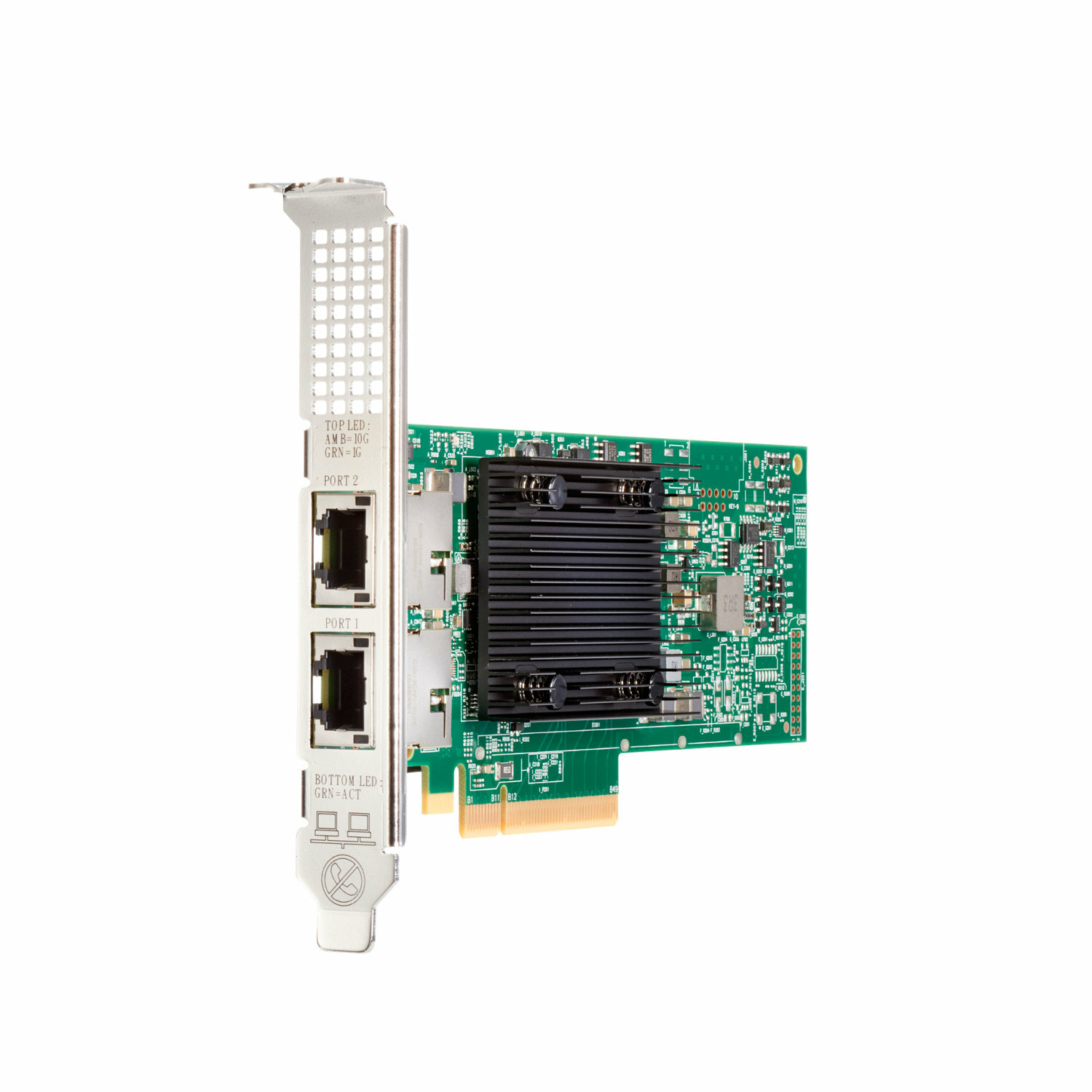

HPE 562T – network adapter – PCIe 3.0 x4 – 10Gb Ethernet x 2


HPE 562T – Network adapter – PCIe 3.0 x4 – 10Gb Ethernet x 2 – for Apollo 4200 Gen10; Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10

AED6,299.00

The HPE Ethernet adapters deliver high performance and low latency for Ethernet traffic to and from the server with minimal CPU resources required. Processing of I/O packets on the adapter frees up CPU to do other more important tasks.

HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter

Are you looking for a simple way to migrate to 10G high performance data center with low cost and low power in your data center? The HPE Ethernet 10Gb 2-port X550-AT2 Adapter deliver high performance and low latency for Ethernet traffic to and from the server with minimal CPU resources required. Processing of I/O packets on the adapter frees up CPU to do other more important tasks. For environments such as Telco/NFV, high-performance computing (HPC) and ecommerce that deal with large volumes of small packet traffic, these adapters accelerate small packet processing by bypassing processing in the host O/S kernel.
HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter

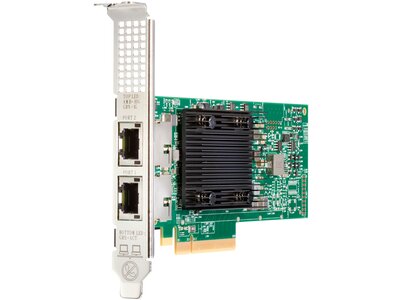

slide 1 of 1, show larger image, hpe ethernet 10gb 2-port base-t x550-at2 adapter
Improve Application Performance

Improve Application Performance

  • The HPE Ethernet 10Gb 2-port X550-AT2 Adapter offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.
  • Speeds up packet processing to service more I/O requests utilizing data plane development packet (DPDK).
Increase I/O Bandwidth for Workload Intensive Applications

Increase I/O Bandwidth for Workload Intensive Applications

  • The HPE Ethernet 10Gb 2-port X550-AT2 Adapter deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
  • Provides a seamless performance upgrade from 1GBASE-T to 10GBASE-T with backward compatibility.
SKU: 817738-B21 Category: Tag:
Category Specification
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x4
Networking
Ports 10Gb Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Features Firewall protection, IPv6 support, Jumbo Frames support, IPv4 support, PXE support, SR-IOV, TSO, secure boot, NPAR, HPE Sea of Sensors 3D, IPv6 acceleration, firmware root of trust, audit logs, tunnel offload, GSO
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg
Processor / Memory
Processor 1 x Intel X550-AT2
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet – RJ-45
Miscellaneous
Included Accessories Low-profile bracket
Compliant Standards WHQL, WEEE, RoHS
Power
Power Consumption Operational 11.15 Watt
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 140 °F
Humidity Range Operating 8 – 90% (non-condensing)
Compatibility Information
Designed For HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 ¦ HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DX380 Gen10, DX560 Gen10, ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML110 Gen10 Solution, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL230k Gen10 Compute Tray, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 ¦ HPE StoreEasy 1660 Expanded Storage
