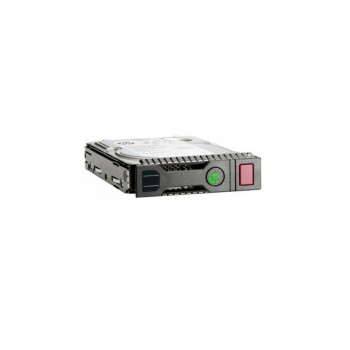

HPE / Hewlett Packard 816572-B21 817051-001 816559-003
1.92TB 2.5″ SFF 12Gbps TLC Read Intensive Hot Swap SC SAS Solid State Drive 651687-001 Kit – New Pull
HPE / Hewlett Packard 816572-B21 817051-001 816559-003 1.92TB / 1920GB 2.5″ SFF / Small Form Factor 12.0 Gb/s TLC / Triple Level Cell RI / Read Intensive 1-DWPD / Drive Writes Per Day HS / Hot Swap SC / Smart Carrier SAS / Serial Attached SCSI SSD / Solid State Drive 651687-001 Kit – New Pull
Supports Gen 8, 9
HPE Solid State Disk Drives (SSD & Accelerators)
HPE Solid State Drives (SSDs) & Accelerators are based upon industry leading NAND Flash technology, which delivers exceptional performance and endurance to support a growing broad spectrum of demanding applications with varying workload performance requirements.
These storage devices offer better I/O latency & more power efficient solutions when compared with traditional rotating (HDD) media, while also fitting seamlessly into existing HPE server & storage infrastructures, and are available in a number of form factors including: Small Form Factor (SFF), Large Form Factor (LFF), M.2, and PCIe/NVME Add-In-Cards (AIC) & modules.
Digitally Signed Firmware – Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks
Read Intensive (RI) Driven Workloads:
| HPE SAS Hard Drive | |
|---|---|
| Manufacturer Part Number | 816572-B21 |
| Interface (Capacity, Workload, Carrier…) | |
| Short Description | HPE 1.92TB SAS RI SFF SC SSD |
| Capacity | 1.92TB / 1920GB |
| Workload Type | Read Intensive |
| Interface Type | SAS |
| Form Factor | SFF |
| Plug Type | Hot Plug |
| Carrier Type | Smart Carrier |
| Digitally Signed Firmware (DS) | No |
| Flash Type | TLC |
| Server Gen Supported (Select Platforms) | Gen 8, 9 |
| Interface (Speeds & Feeds) | |
| Endurance DWPD | 1 |
| MAX Seq. Reads Throughput (MiB/s) | 940 |
| MAX Seq. Writes Throughput (MiB/s) | 925 |
| Random Read Average Latency uSec (4KiB,Q1) | 120 |
| Random Write Average Latency uSec (4KiB,Q1) | 40 |
| Random Read IOPS (4KiB, Q=16) | 110,000 |
| Random Write IOPS (4KiB, Q=16) | 36,500 |
| MAX Random Read IOPS (4KiB) | 150,000 @Q64 |
| MAX Random Write IOPS (4KiB) | 36,500 @Q4 |
| 4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1 | 66,000 |
| 4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2 | 58,000 |
| Interface (Power & Height) | |
| Power Idle Time | 3.12 |
| Power Random Read | 3.57 |
| Power Random Write | 3.57 |
| Power Sequential Read | 4.24 |
| Power Sequential Write | 3.90 |
| Power Random R/W | 3.57 |
| Height | 15mm |
